Commissioning Manual
01/2017
35

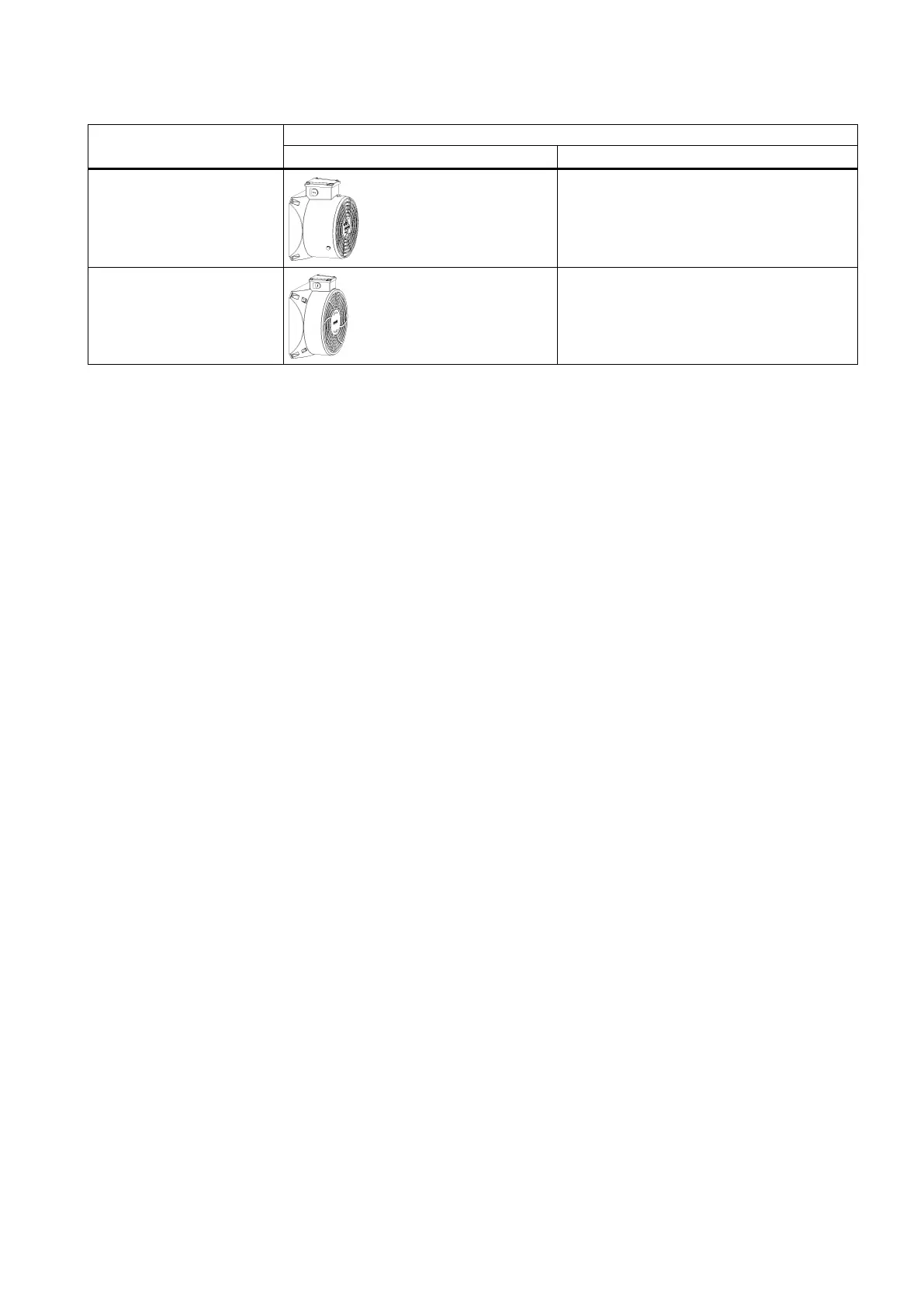

Replacement fans for 1PH1 motors
SH100
1PH1902-0AB00-0AA0
SH132
1PH1902-0AC00-0AA0
For more information about fan replacement, see Section "Replacing the fan for the 1PH1 motor (Page 480)".
SINUMERIK 808D control system
2.1.2.1
The SINUMERIK 808D control system is an economic numerical control system for milling or turning machines. The
SINUMERIK 808D controller, coupled with the high performance SINAMICS V60 drive and the SIMOTICS S-1FL5 motor, is
able to control up to four axes including one analog spindle.
● SINUMERIK 808D (turning)
– The turning version of the SINUMERIK 808D control system is able to control up to two feed axes, one additional axis
(software license required), and one analog spindle.
● SINUMERIK 808D (milling)
– The milling version of the SINUMERIK 808D control system is able to control up to three feed axes and one analog
spindle.
Both the turning and milling variants of the SINUMERIK 808D controllers are available in the following version:
● PPU141.2 (horizontal operator panel, with English keys)
● PPU141.2 (horizontal operator panel, with Chinese keys)
Configurable MCPs are available in the following versions:
● Horizontal MCP, with English keys and override switches
● Horizontal MCP, with Chinese keys and override switches
● Horizontal MCP, with Chinese keys and a reserved slot for the handwheel (applicable to turning machines only)
● Vertical MCP, with English keys and a reserved slot for the handwheel
● Vertical MCP, with Chinese keys and a reserved slot for the handwheel
● Vertical MCP, with English keys and an override switch for the spindle
● Vertical MCP, with Chinese keys and an override switch for the spindle
