Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
01/2017
141
4.9
Switching on the control system
Preparation before switch-on
Make sure the following before switching on the control system:
● You have finished the mechanical installation of the whole system based on the information included in Chapter
"Mounting (Page 55)".
● You have completed the wiring of the whole system according to the information included in Chapter "System connection
(Page 80)" (if you use the default PLC program).
Operating sequence
1.
Switch on the 24 VDC power supply to the control system.

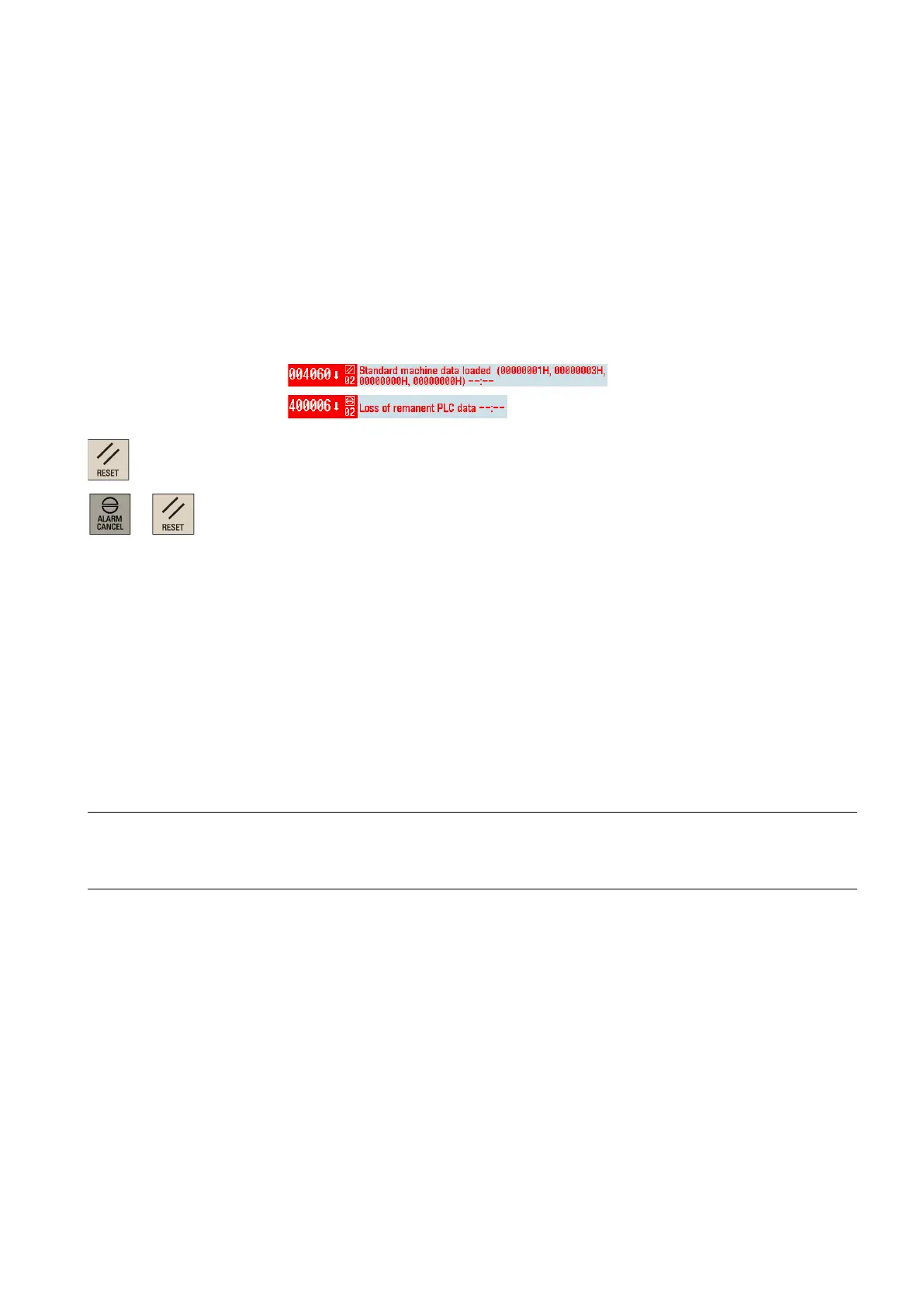

When the control system starts up for the first time, the following two alarms appear.
→
2.
Press this key or the key combination
to clear the alarms. For more information about the
alarms and system responses, refer to the SINUMERIK 808D/SINUMERIK 808D
ADVANCED Diagnostics Manual.
3.
When the control system enters the main screen, check the status LEDs on the PPU:
•
POK
: green
•
RDY
: green
•
TEMP
: off
4.
Check the status LEDs on the drive:
SINAMICS V70:
•
RDY
: green
•
COM
: slow flashing green every two seconds
SINAMICS V60:
•
RDY/JOG
: green
•
ERR
: off
Note
The control system constantly creates restoring points during operation. In case of
data loss due to power failure or other
problems, the control system automatically restores the last autosaved system data upon startup with an alarm appearing on
the screen.
