Commissioning Manual
01/2017
105
4.3
Interfaces on the MCP
4.3.1

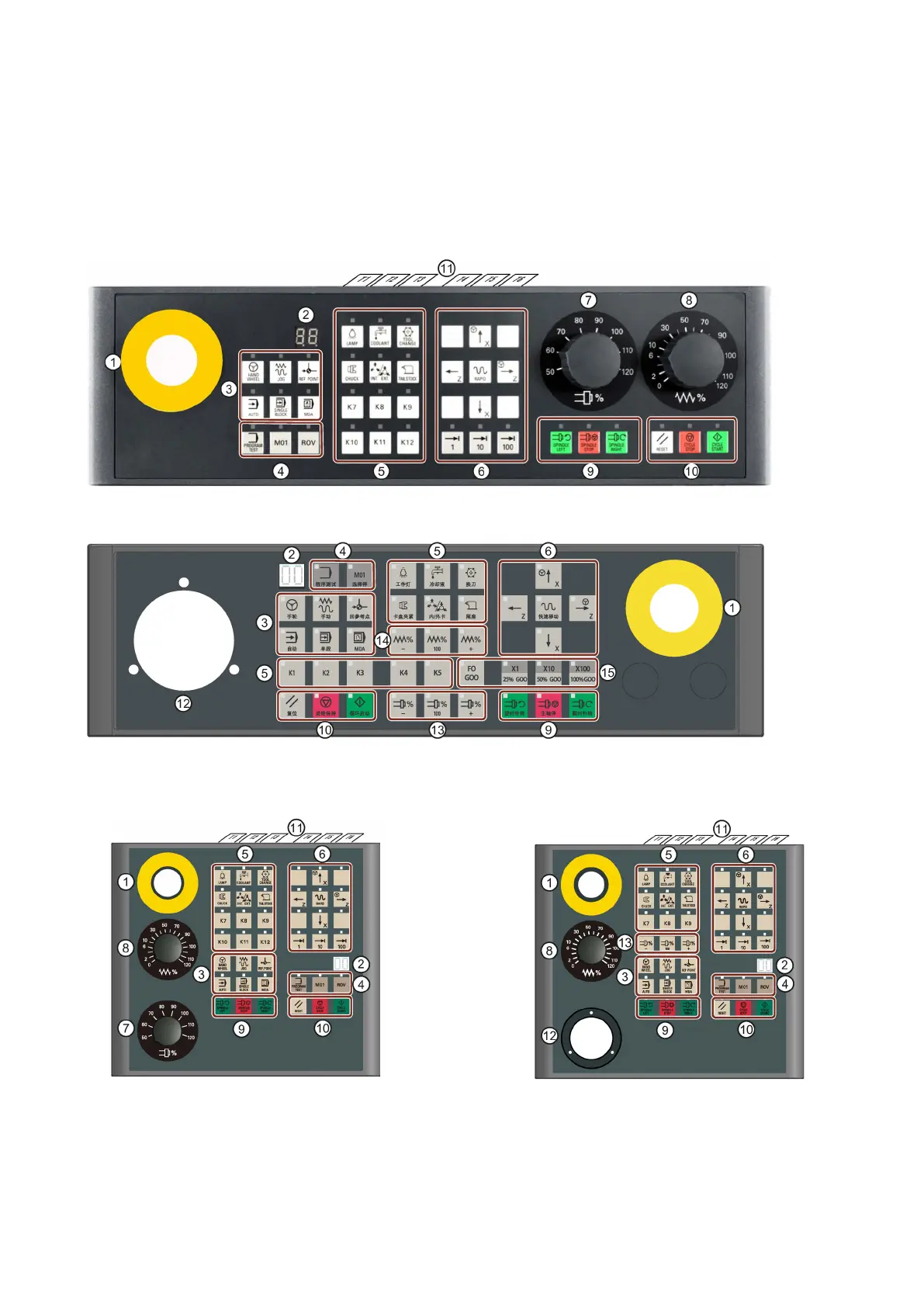

Control elements on the MCP
Horizontal MCP
●
Variant with override switches
●
Variant with a reserved slot for the handwheel
Vertical MCP
•
Variant with an override switch for the spindle
•
Variant with a reserved slot for the handwheel
