Reserved hole for emergency stop button
Displays the number of the currently active tool
Keys for program start, stop, and reset
Operating mode selection area
Pre-defined labeling strips for keys of the MCP
Reserved slot for the handwheel
Spindle override control keys
Feedrate override control keys
Keys for increment override/rapid traverse override *
* The increment override can be activated in "JOG" mode, "Handwheel" mode, or "AUTO"/"MDA" mode with the contour
handwheel activated. The rapid traverse override is effective only in "AUTO"/"MDA" mode with no contour handwheel ac-
tivated. The "F0 G00" key can activate a rapid traverse override of 1% by default, which can be changed in the general
machine data 12050[1], for example, 12050[1] = 0.15 as 15%.

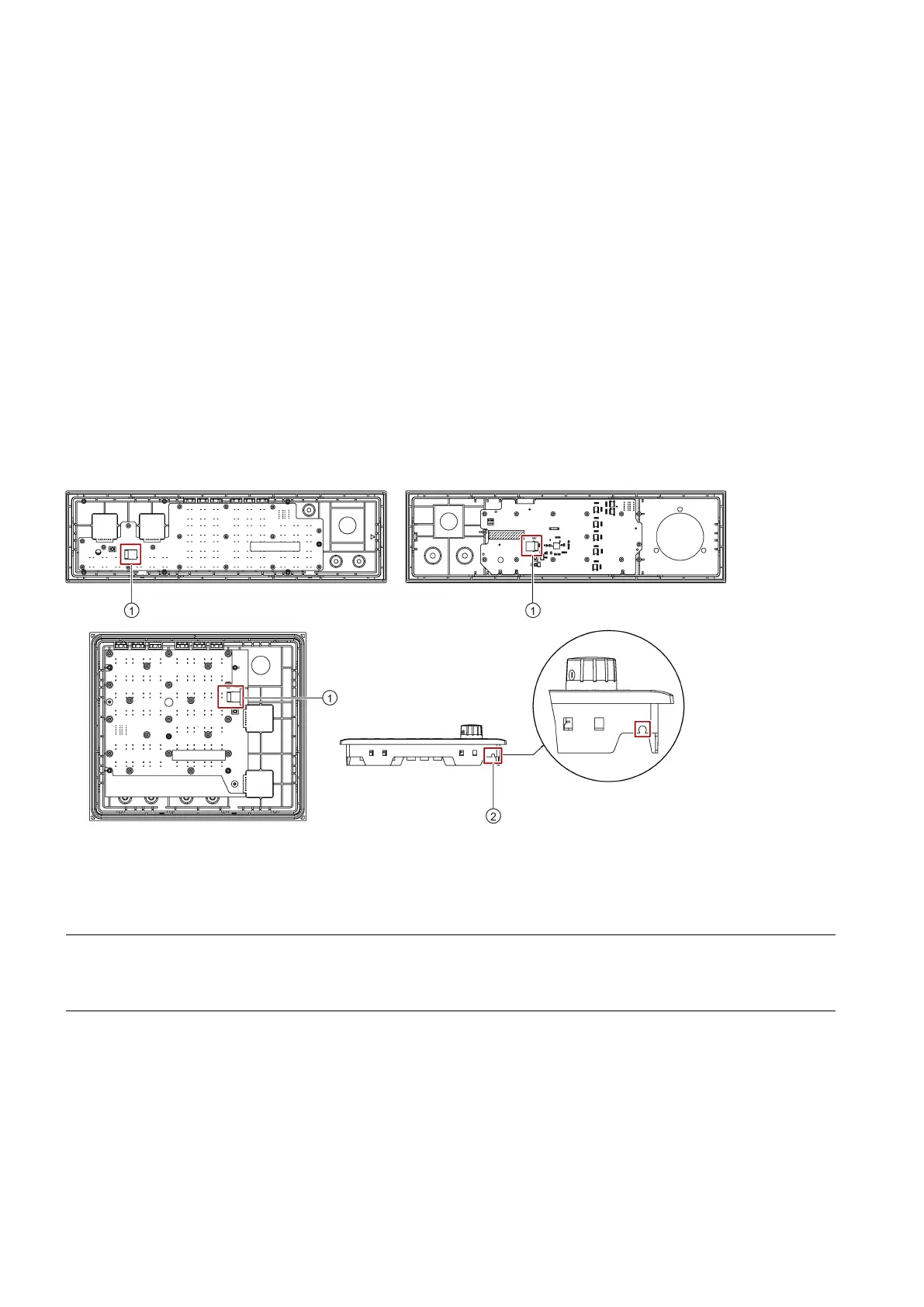

USB interface, for connection with the PPU
Reserved hole for fixing the USB cable that connects the PPU and the MCP
Note
The two variants of the vertical MCP, with a reserved hole for the handwheel and with an override switch for the spindle,
have
the same mechanical interface design for the USB cable and reserved hole for fixing the USB cable on the back. The
illustration above takes the vertical MCP with a spindle override switch for example.
