Commissioning Manual
136 01/2017
Switching on the SINAMICS V70 drive
4.8.1.1
To implement Jog test for the SINAMICS V70 drive, proceed through the following steps:
1. Switch on the 24 VDC power supply to the drive.
2. Switch on the 3 phase 380 VAC line supply to the drive.
3. Proceed as follows to configure a motor with an incremental encoder; otherwise, skip Steps 3 and 4 and go to Step 5
directly.

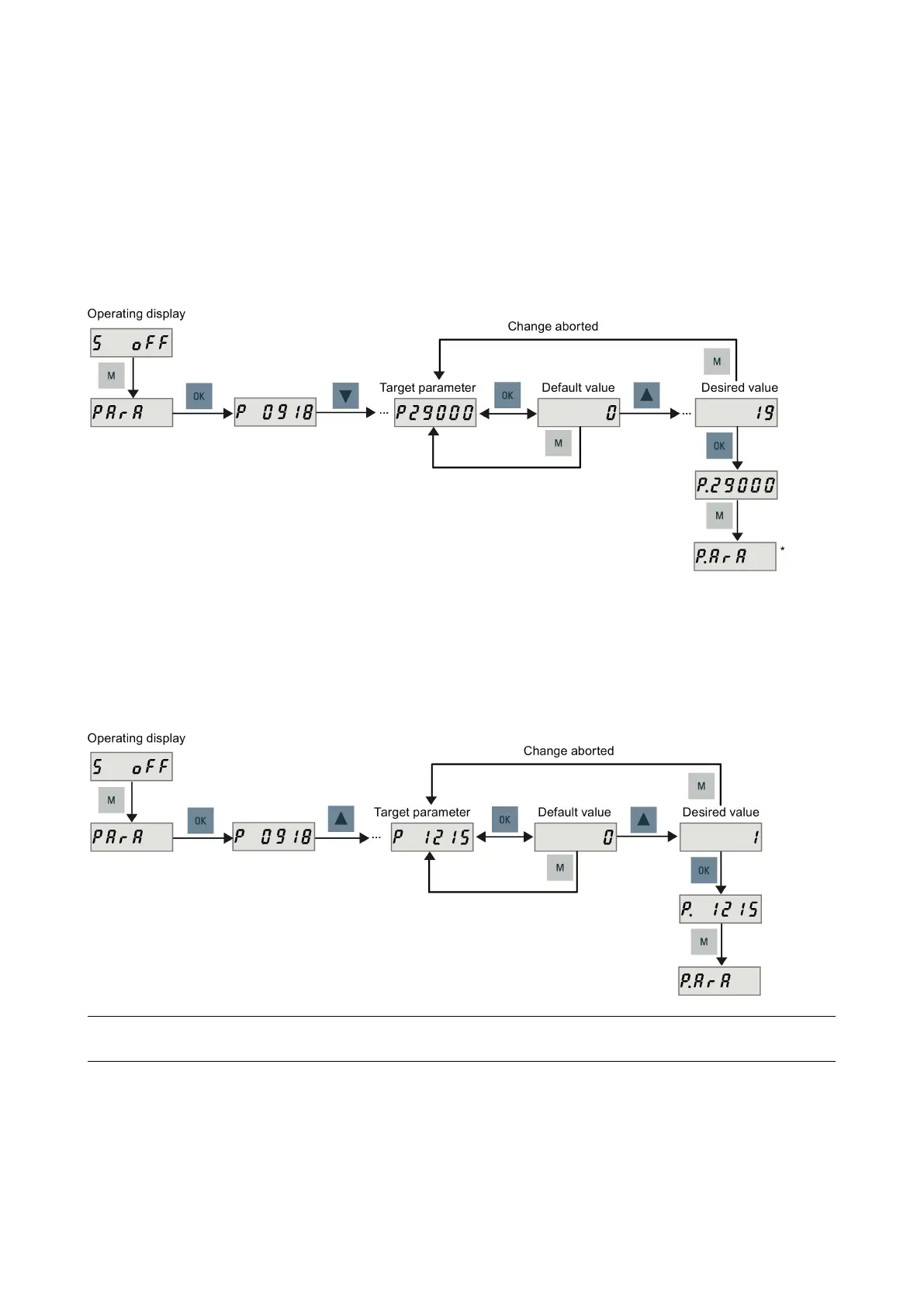

Configure the motor ID p29000 (default = 0). You can find the motor ID of the connected motor on its rating plate.
* The dot means that at least one parameter is changed without saving. To save the parameter changes, see Step 6.
4. Configure the motor brake p1215 as follows. For a motor without a holding brake, skip this step and go to Step 5 directly.
– = 0 (default): No motor holding brake available
– = 1: Motor holding brake under sequence control
– = 2: Motor holding brake always open
– = 3: Motor holding brake under sequence control by the SINUMERIK 808D ADVANCED
Note
For a motor with an absolute encoder, the operating pr
inciple of the holding brake is configured automatically.
