Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
396 01/2017
15.3.3
SIMOTICS M-1PH1 main motors

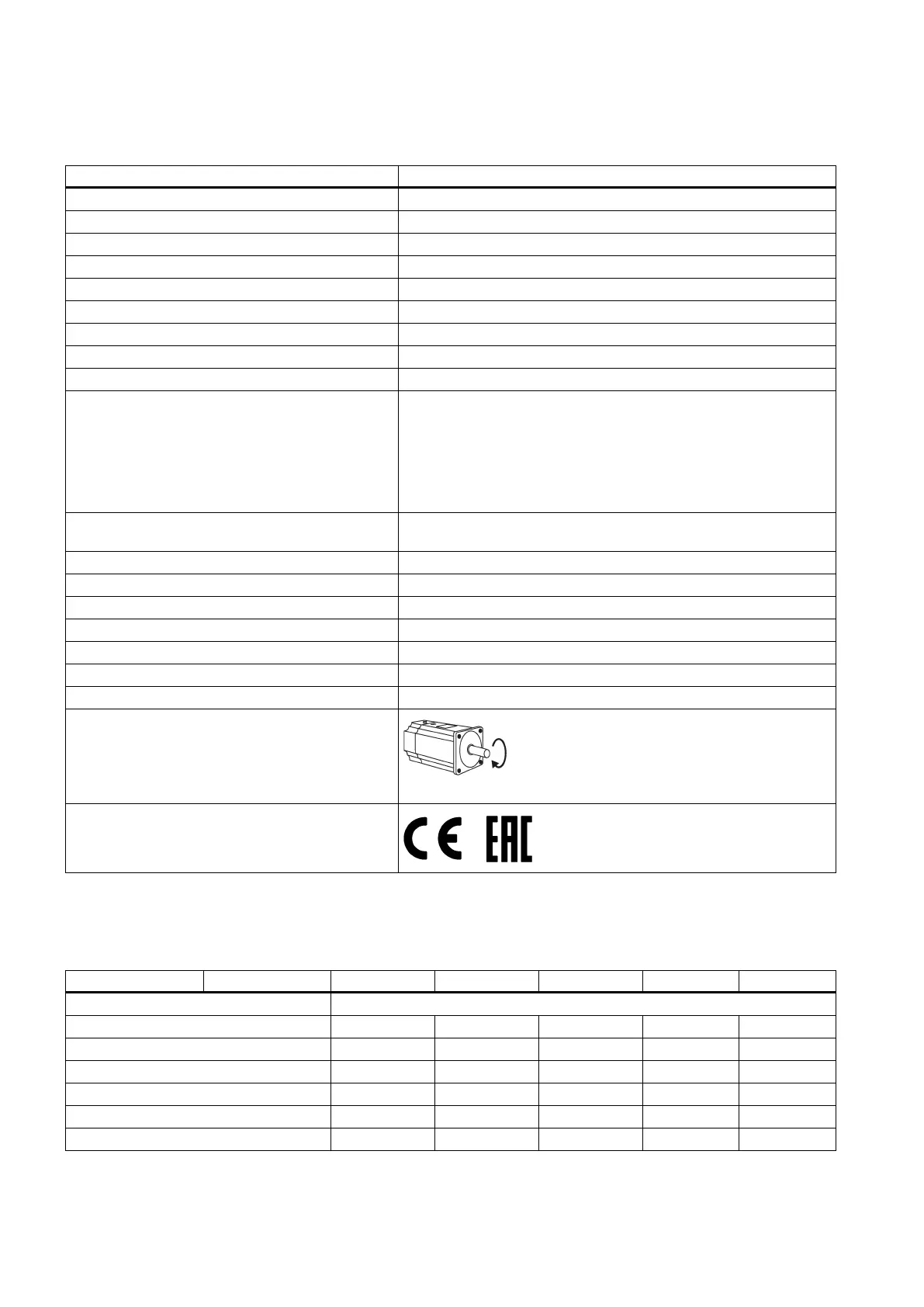

General technical data
Parameter
Description
Type of motor
Asynchronous motor
Cooling method
Fan-cooled
Operating temperature
-15 °C to 40 °C (without power derating)
Storage temperature
-20 °C to 65 °C
Relative humidity (storage)
≤ 95%
Relative humidity (operating) ≤ 90%
Installation altitude
≤ 1000 m (without power derating)
Maximum noise level
72 dB
Thermal class
F
Vibration severity grade 1PH11❑❑-1❑F:
Grade B is maintained up to 1800 rpm; Grade S is maintained from
1800 rpm to 10000 rpm
1PH11❑❑-1❑D:
Grade B is maintained up to 1800 rpm; Grade R is maintained from
1800 rpm to 6000 rpm
Shock resistance 20 m/s
2
(continuous in axial direction); 50 m/s
2
(continuous in radial
direction); 250 m/s
2
(in a short time of 6 ms)
Static bearing lifetime
> 20000 h
1)
Oil seal lifetime
> 20000 h
Encoder lifetime
> 20000 h
Motor lifetime
20000 h
Paint finish
Anthracite
Degree of protection
IP54 (dust-tight and splash-proof during motor operation)
Type of construction
IM B5, IM B3, IM V1, and IM V5
Positive rotation
Clockwise (default setting in SINAMICS V70 spindle drives)
Certification
1)
This lifetime is only for reference. When a motor keeps running at rated speed under rated load, replace its bearing after
20,000 hours to 30,000 hours of service time. Even if the time is not reached, the bearing must be replaced when unu-
sual noise, vibration, or faults are found.
Specific technical data - SH100
Order No.
1PH110...
1-1❑F
3-1❑F
5-1❑F
3-1❑D
5-1❑D
Insulation class
F
Rated power
3.7 kW
5.5 kW
7.5 kW
3.7 kW
5.5 kW
Rated torque 24 Nm 35 Nm 48 Nm 35 Nm 53 Nm
Maximum torque for 30 s
48 Nm
70 Nm
96 Nm
70 Nm
106 Nm
Overload torque (S6-25% (1.5 Pn))
36 Nm
52.5 Nm
72 Nm
52.5 Nm
79.5 Nm
Rated speed
1500 rpm
1500 rpm
1500 rpm
1000 rpm
1000 rpm
Maximum speed
10000 rpm
10000 rpm
10000 rpm
6000 rpm
6000 rpm
