Commissioning the prototype machine
7.1
Overview on commissioning and operation wizards
The control system has two commissioning wizards and one operation wizard.
● The commissioning wizards require a manufacturer access level. They are designed to help you commission the basic
machine tool functions on the prototype machine and series machines.
● The operation wizard requires an end-user access level. It is designed to help you learn about the basic operations of the
machining process.
Three machine data areas are used in the wizards to commission the prototype machine: general machine data, axis
machine data and NC basic list.

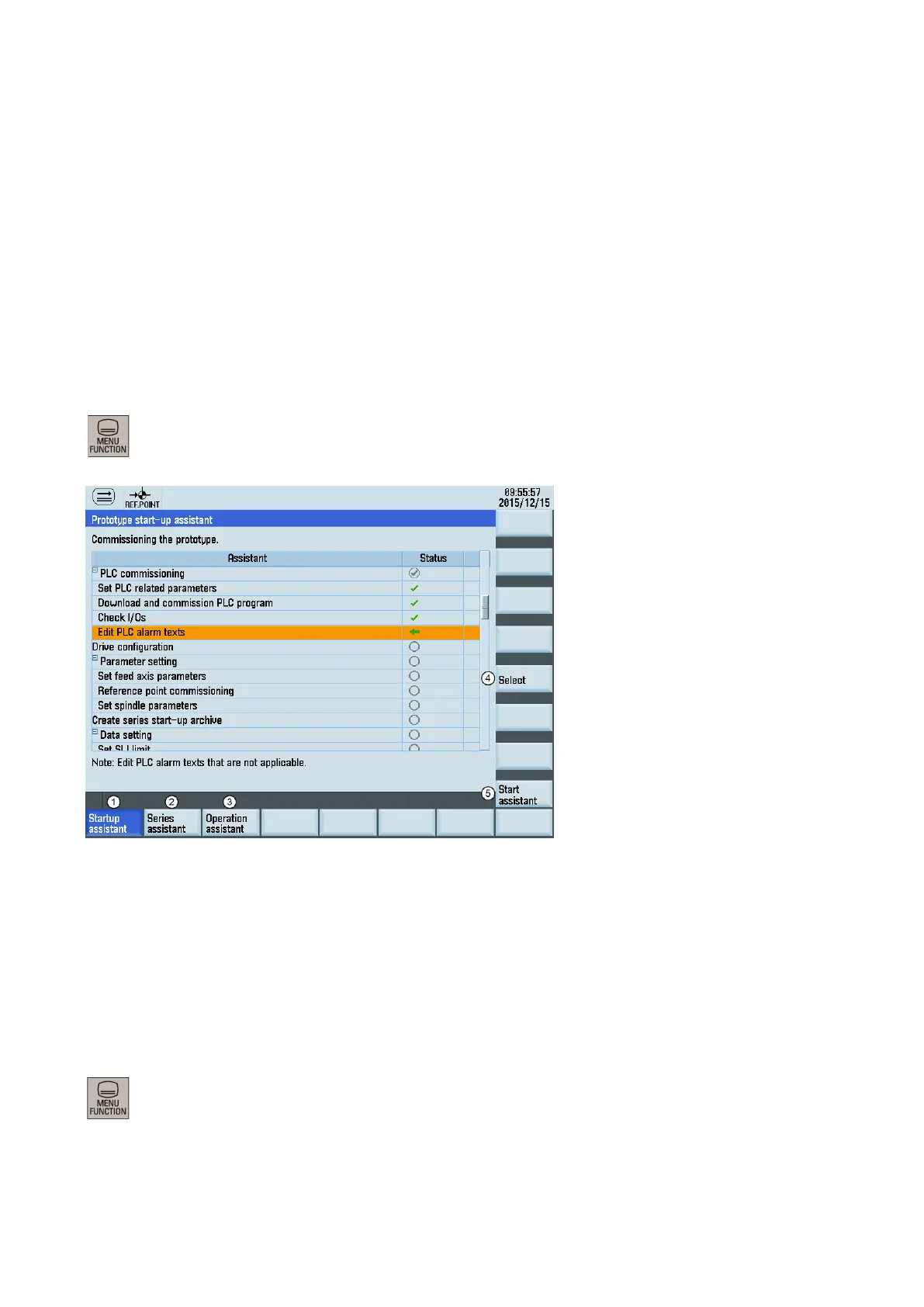

Pressing this key on the PPU allows you to enter the main screen of the wizards. The following takes the screen
on the PPU161.3 for example.
Calls the commissioning wizard for the prototype machine. This wizard consists of 14 commissioning steps on the
PPU161.3 or PPU160.2/12 commissioning steps on the PPU141.2.
Calls the commissioning wizard for series machines. This wizard consists of si
x commissioning steps on the
PPU161.3 or PPU160.2/five commissioning steps on the PPU141.2.
Calls the operation wizard
Enters the currently selected task.
Note: This softkey becomes active when you move the cursor key to a completed or current task.
Starts commissioning from the current task
When you are in the main screen of any wizard, pressing any operating area key on the PPU allows you to exit the wizard.
After you enter the screen of a specific commissioning task, however, you need to press the following PPU key first to return
to the main screen, and then press any operating area key to exit:
To Next Page
