Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
01/2017
239
No.
Name
Unit
Range
Description
32100 AX_MOTION_DIR - -1 to 1 Traversing direction (not control direction)
• -1: Direction reversal
•
0, 1: No direction reversal
32110[0]
ENC_FEEDBACK_POL
-
-1 to 1
Sign actual value (control direction)
35010
GEAR_STEP_CHANGE_ENABLE
-
-
Parameterize gear stage change
35100
SPIND_VELO_LIMIT
rpm
-
Maximum spindle speed
35110[1...5]
GEAR_STEP_MAX_VELO
rpm
-
Maximum speed for gear stage change
35120[1...5]
GEAR_STEP_MIN_VELO
rpm
-
Minimum speed for gear stage change
35130[1...5] GEAR_STEP_MAX_VELO_LIMIT rpm - Maximum speed of gear stage
35140[1...5]
GEAR_STEP_MIN_VELO_LIMIT
rpm
-
Minimum speed of gear stage
36200[1...5]
AX_VELO_LIMIT
rpm
-
Threshold value for velocity monitoring
7.5

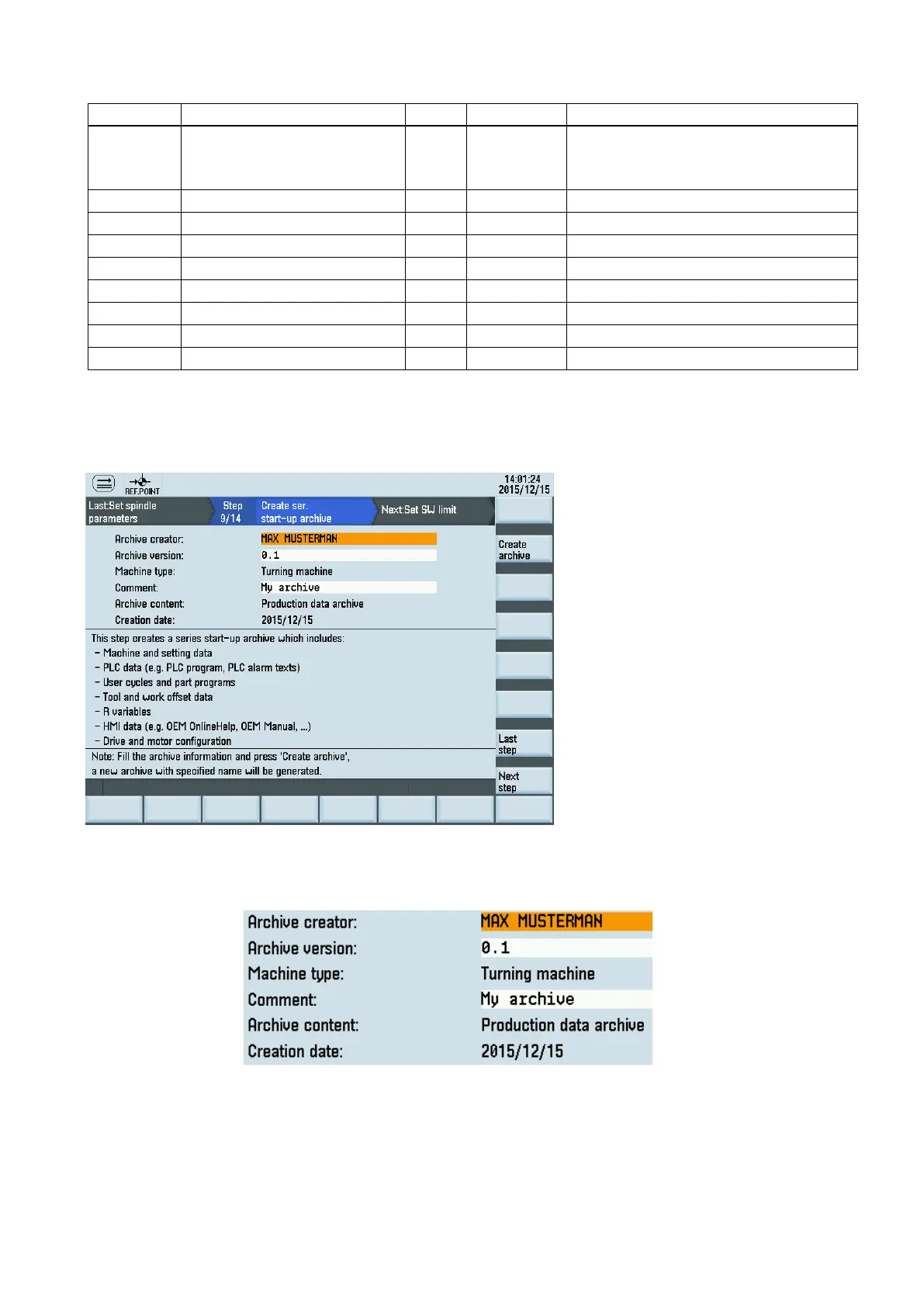

Creating series archives
Creating series startup archives is a prerequisite for series machine commissioning. The series startup archives contain data
from the prototype machine commissioning which bring the series machine to the same state.
Operating sequence
1.
Specify the properties of the archive as required:
