Commissioning Manual
300 01/2017
Configuration files (EasyXLanguage scripts)
The following files in the relevant manufacturer's folder on the control are needed to configure user dialogs:
Script file "xmldial.xml" This script file uses XML tags to control
how the configured softkey menus and
dialog forms will appear in the user-
defined operating area on the HMI.
Bitmaps E.g. "text.bmp" or "text.png" The control system supports BMP and
XML files inserted in the "xmldi-
al.xml" control file with the
E.g. "machine_settings.xml" These files also contain programmed
instructions for displaying the dialog
forms and parameters on the HMI.

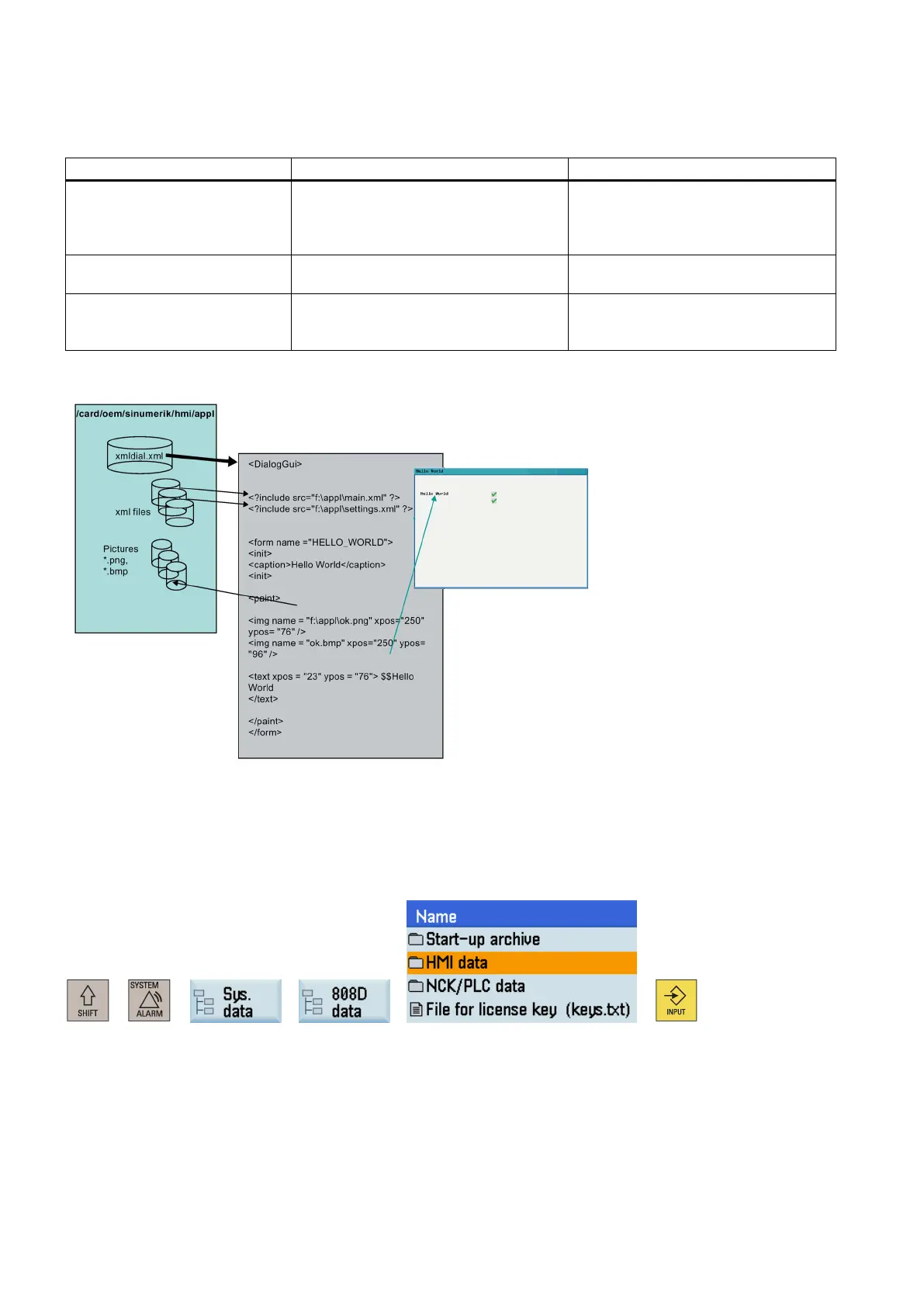

Dependencies of files for configuring user dialogs
Make sure that you copy the generated configuration files to the following path from a USB stick directly or from a network
drive via Ethernet connection:
+ → → → → →
