Commissioning Manual
01/2017
55
Danger to life when live parts are touched
Death or serious injury can result when live parts are touched.
• Only work on electrical devices when you are qualified for this job.
• Always observe the country-specific safety rules.
Before installing or removing the components of the control system, make sure that the system is disconnected
from the mains.
Death or serious injury from fire or electric shock
If the equipment operates in an area subject to inflammables or combustibles, water or corrosion hazards, it
contains high risk of fire or electric shock.
The fire or electric shock may lead to death or serious injury.
Make sure that the control system is installed in a control cabinet with an adequate protection class.
Note
When dimensioning the control cabinet, make sure that the installed components do not exceed the permissible surrounding
air temperature, even if the outside temperature is high.

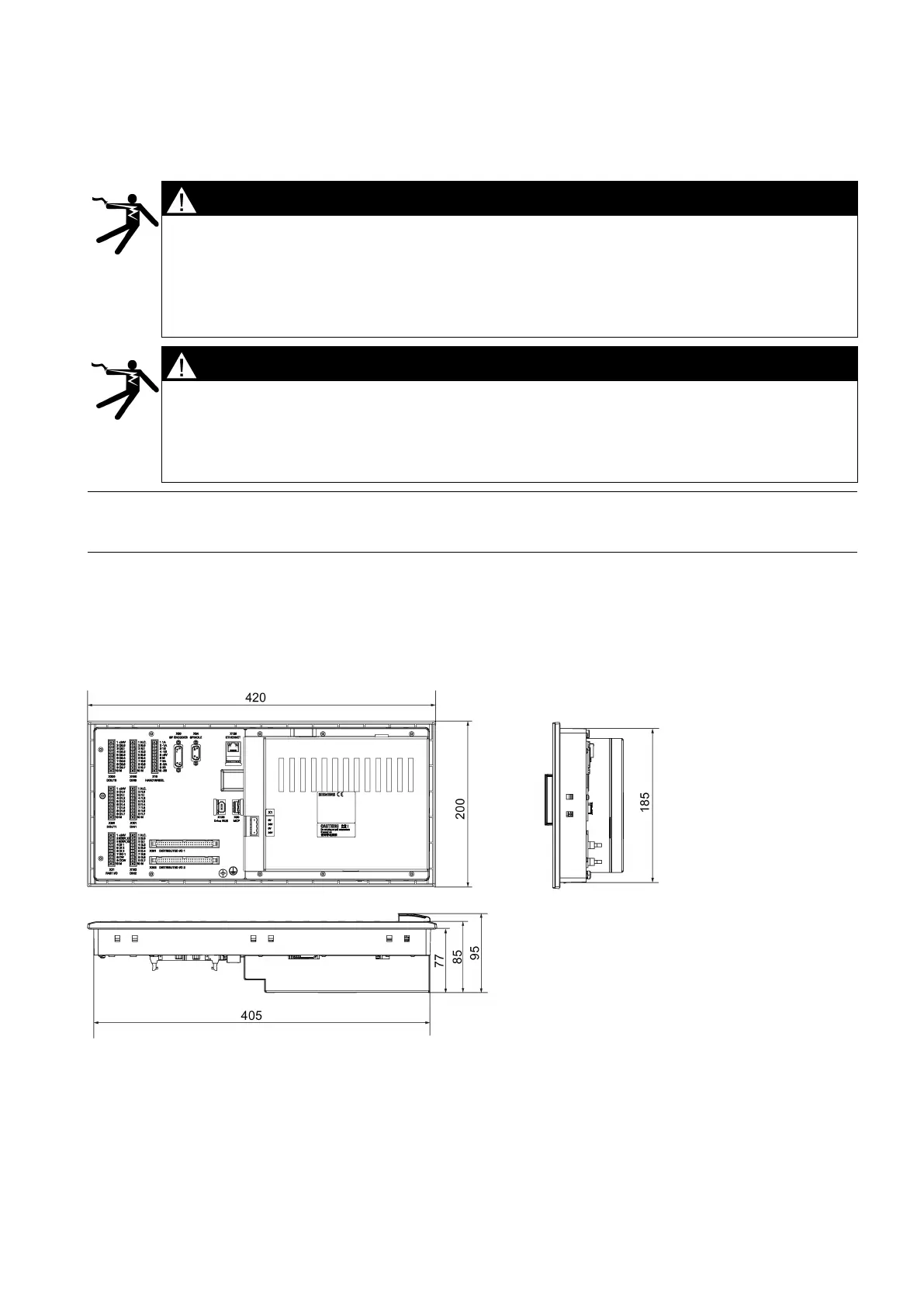

Mounting the PPU and MCP
3.1.1
Outline dimensions (unit: mm)
PPU161.3
