Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
01/2017
89
4.2.6
Digital output interfaces - X200, X201
Pin assignment
Type
Mini Combicon 10-pin
Cable
Max. length: 1
0 m
Max. cross-section: 1.5 mm
2
(when using one cable per connection)
Outputs
Rated digital output current: 250 mA
Pin
X200 (DOUT0)
X201 (DOUT1)
Remarks
1 +24 V +24 V +24 V input (20.4 V to
28.8 V)
2 Q0.0 Q1.0 Digital output
3
Q0.1
Q1.1
Digital output
4
Q0.2
Q1.2
Digital output
5
Q0.3
Q1.3
Digital output
6
Q0.4
Q1.4
Digital output
7
Q0.5
Q1.5
Digital output
8
Q0.6
Q1.6
Digital output
9
Q0.7
Q1.7
Digital output
10
M
M
External ground

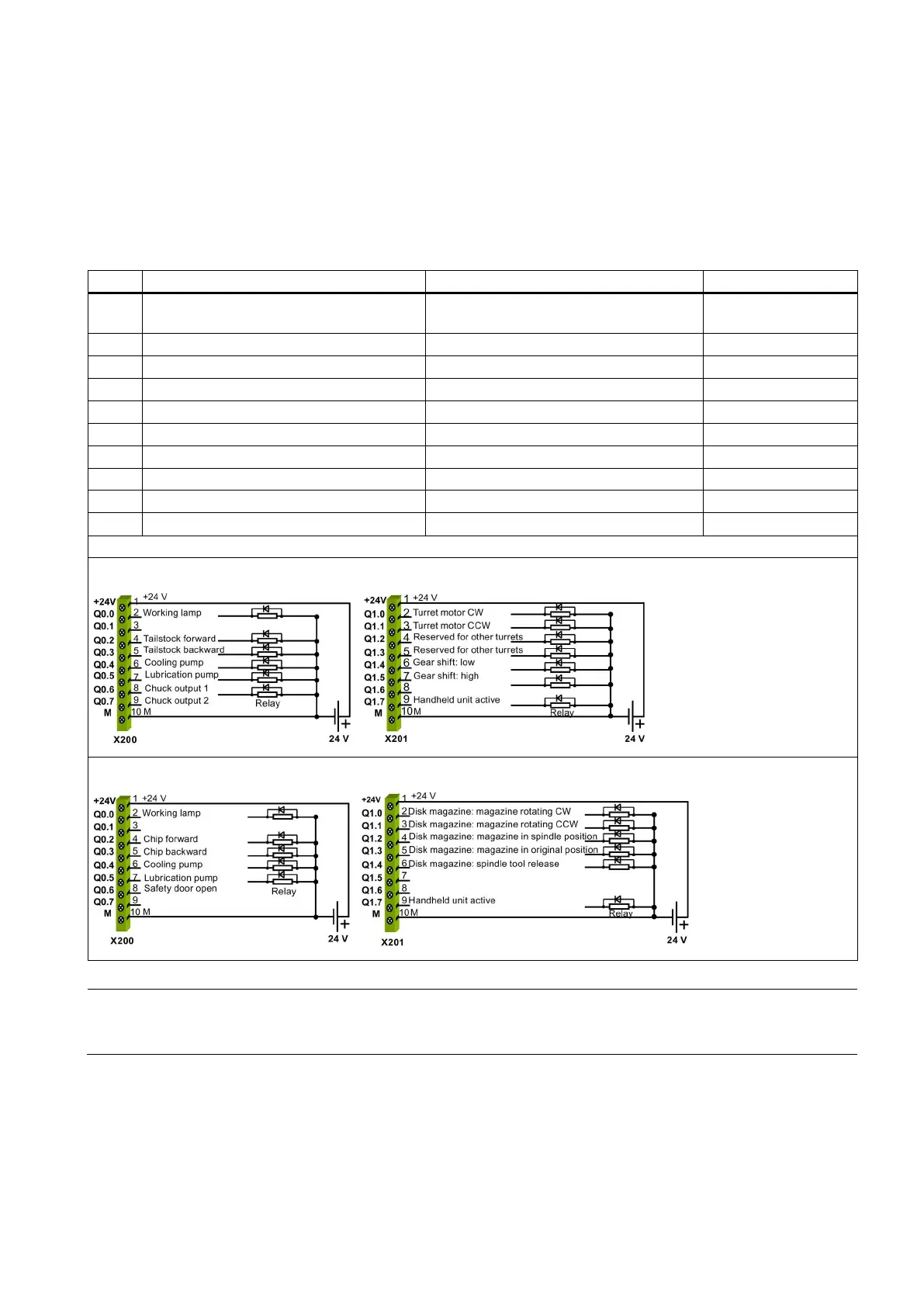

Connecting according to the default PLC program
Turning
Milling
Note
End sleeves are necessary if you use two cables per connection.
Fasten the cables to the s
crew terminals and plug the terminals into interfaces X200, X201 correctly.
