Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
88 01/2017
4.2.5
Digital input interfaces - X100, X101, X102
Pin assignment
Type
Mini Combicon 10-pin
Cable
Max. length: 10 m
Max. cross-section: 1.5 mm
2
(when using one cable per connection)
Inputs
Permissible level (including ripple)
High level: 20.4 V to 28.8 V
Low level: -3 V to +5 V
Pin
X100 (DIN0)
X101 (DIN1)
X102 (DIN2)
Remarks
1
N.C.
N.C.
N.C.
Not assigned
2 I0.0 I1.0 I2.0 Digital input
3
I0.1
I1.1
I2.1
Digital input
4
I0.2
I1.2
I2.2
Digital input
5
I0.3
I1.3
I2.3
Digital input
6
I0.4
I1.4
I2.4
Digital input
7
I0.5
I1.5
I2.5
Digital input
8
I0.6
I1.6
I2.6
Digital input
9
I0.7
I1.7
I2.7
Digital input
10
M
M
M
External ground

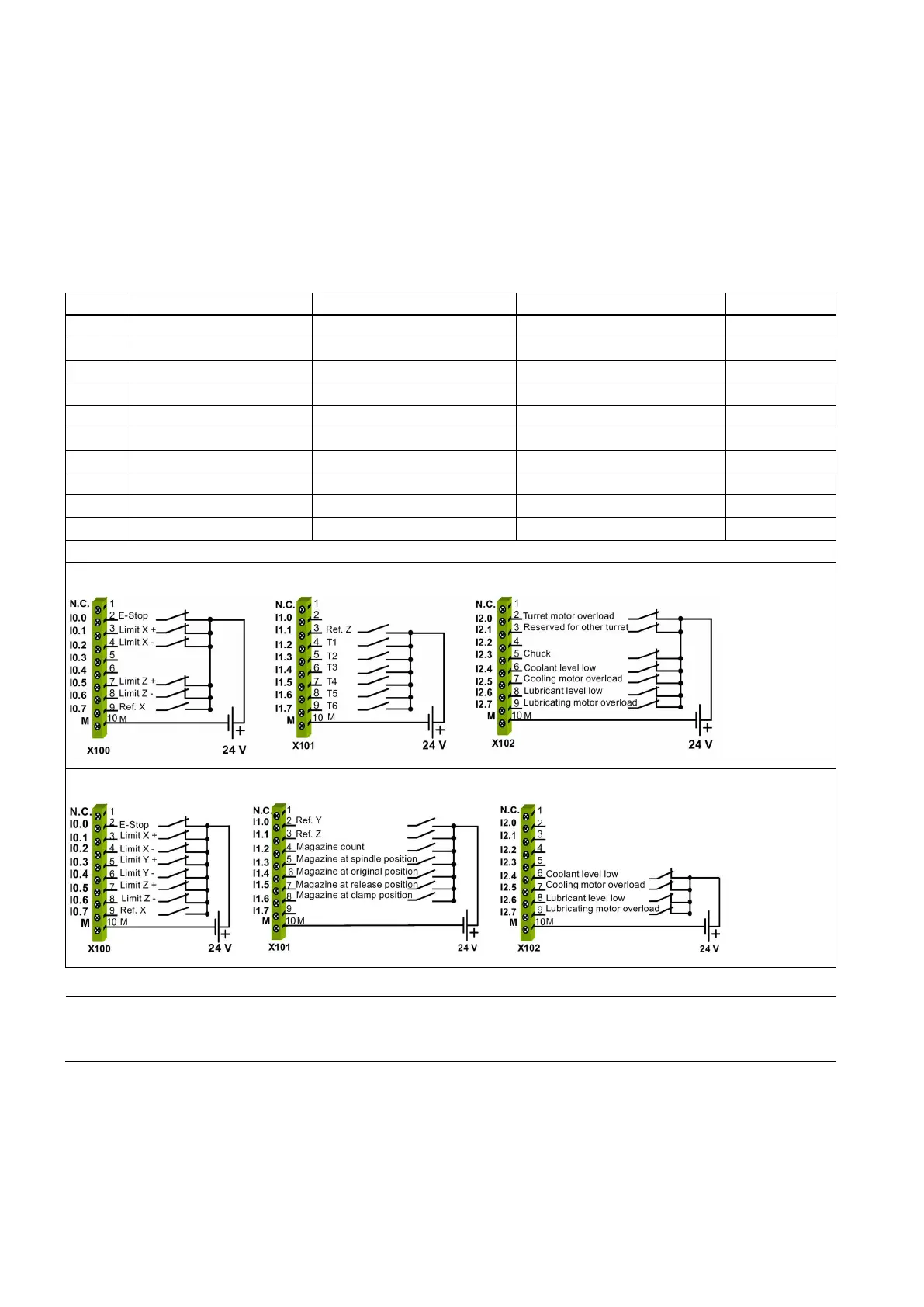

Connecting according to the default PLC program
Turning
Milling
Note
End sleeves are neces
sary if you use two cables per connection.
Fasten the cables to the screw terminals and plug the terminals into interfaces X100, X101 and X102 correctly.
