● Access MyMachine
– Access MyMachine (AMM) is a tool that allows the commissioning engineer to exchange files between the computer
and the control very easily through the Ethernet interface. For data transmission, the control can be connected to the
computer directly or via the local network.
● PLC Programming Tool
– PLC Programming Tool makes a connection between the programming tool and the control system. The
commissioning engineer can program and debug the PLC inside the control system.
● Config DATA
– Config_DATA contains the configuration data setup. The setup will install the configuration data for the control system
to your computer. The configuration data consist of the Siemens examples, and the user documents.
2.1.1.6

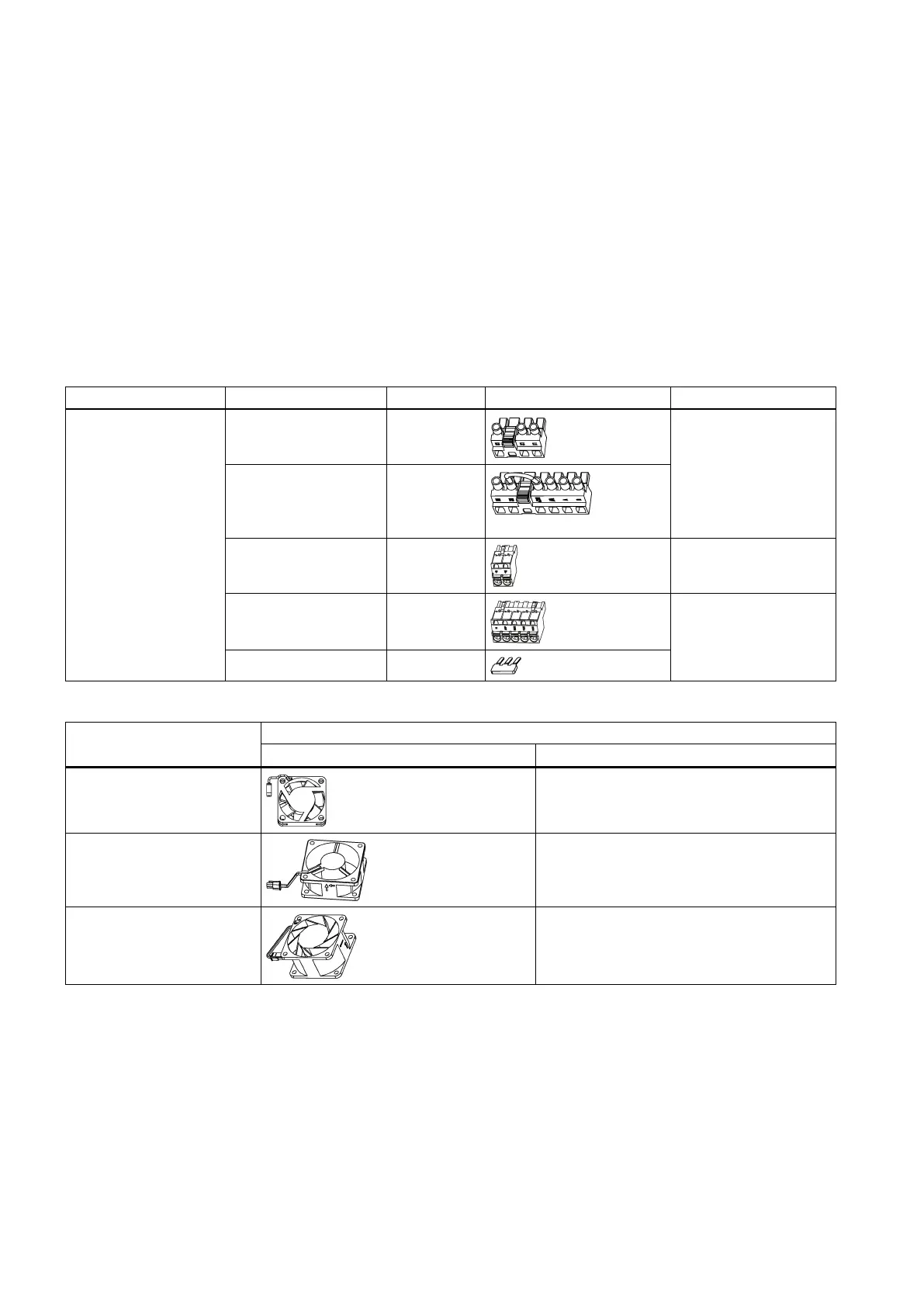

Spare parts
Connectors for V70 drives
Article number
Components
Quantity
Illustration
Applicable drive variants
6SL3200-0WT01-0AA0 Line supply connector 1 V70 feed drive FSA
Motor power/braking
resistor connector (with
a short-circuit stick pre-
assembled)
1
Holding brake connect-
or
1 V70 feed drive
FSA/FSB/FSC
STO/24 V power supply
connector
1 All V70 drives
STO short-circuit stick 1
Replacement fans for V70 drives
Drive frame size
Fan components
Illustration
Article number
FSB 6SL3200-0WF00-0AA0
FSC 6SL3200-0WF01-0AA0
FSD 6SL3200-0WF03-0AA0
For more information about fan replacement, see Section "Replacing the fan for the V70 drive (Page 477)".
