Commissioning Manual
62 01/2017
3.2.1.2

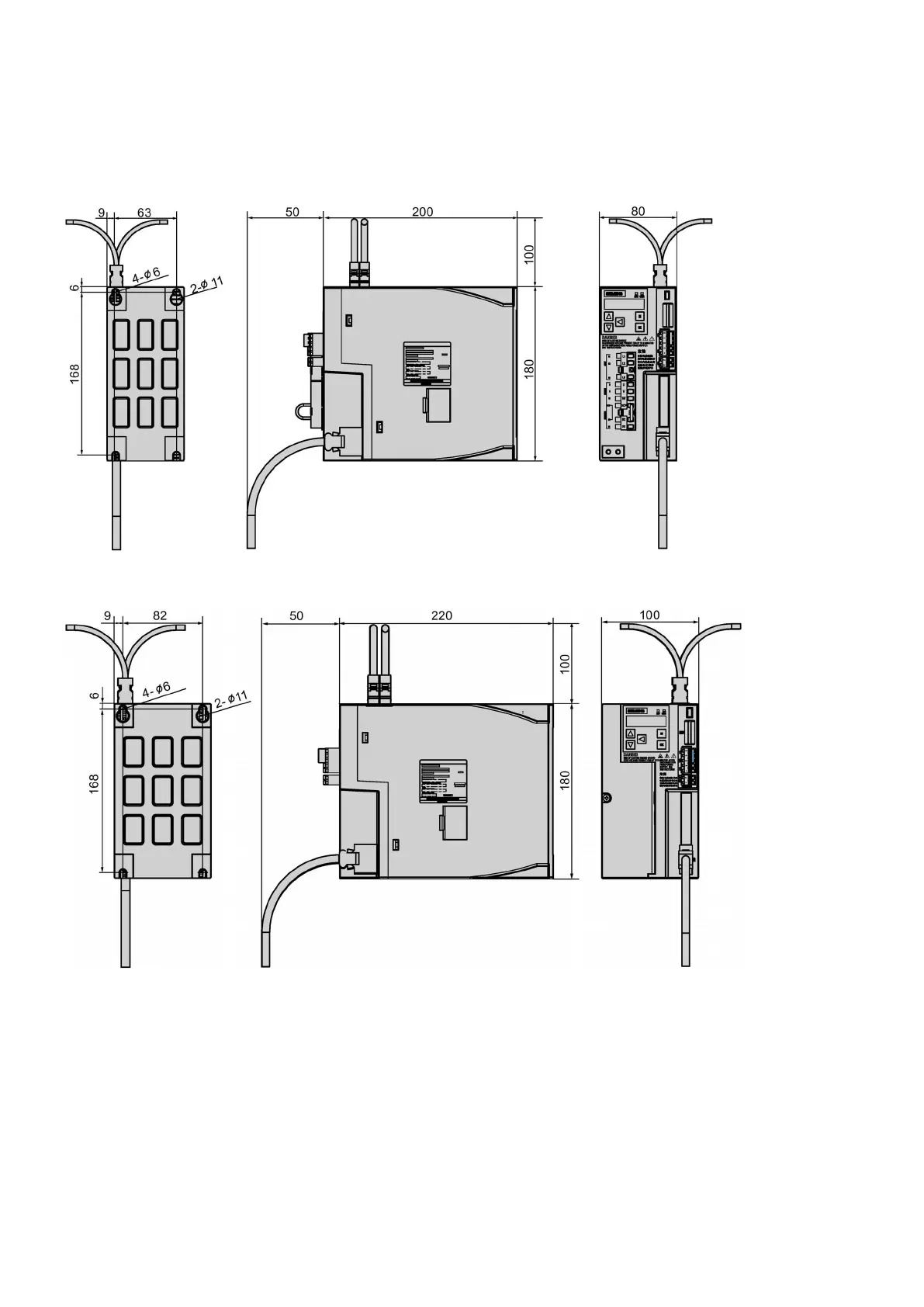

Drill patterns and outline dimensions
All dimensional data is specified in millimeters.
SINAMICS V70 feed drive FSA
SINAMICS V70 feed/spindle drive FSB
