Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
01/2017
235
7.4
Setting basic parameters
7.4.1

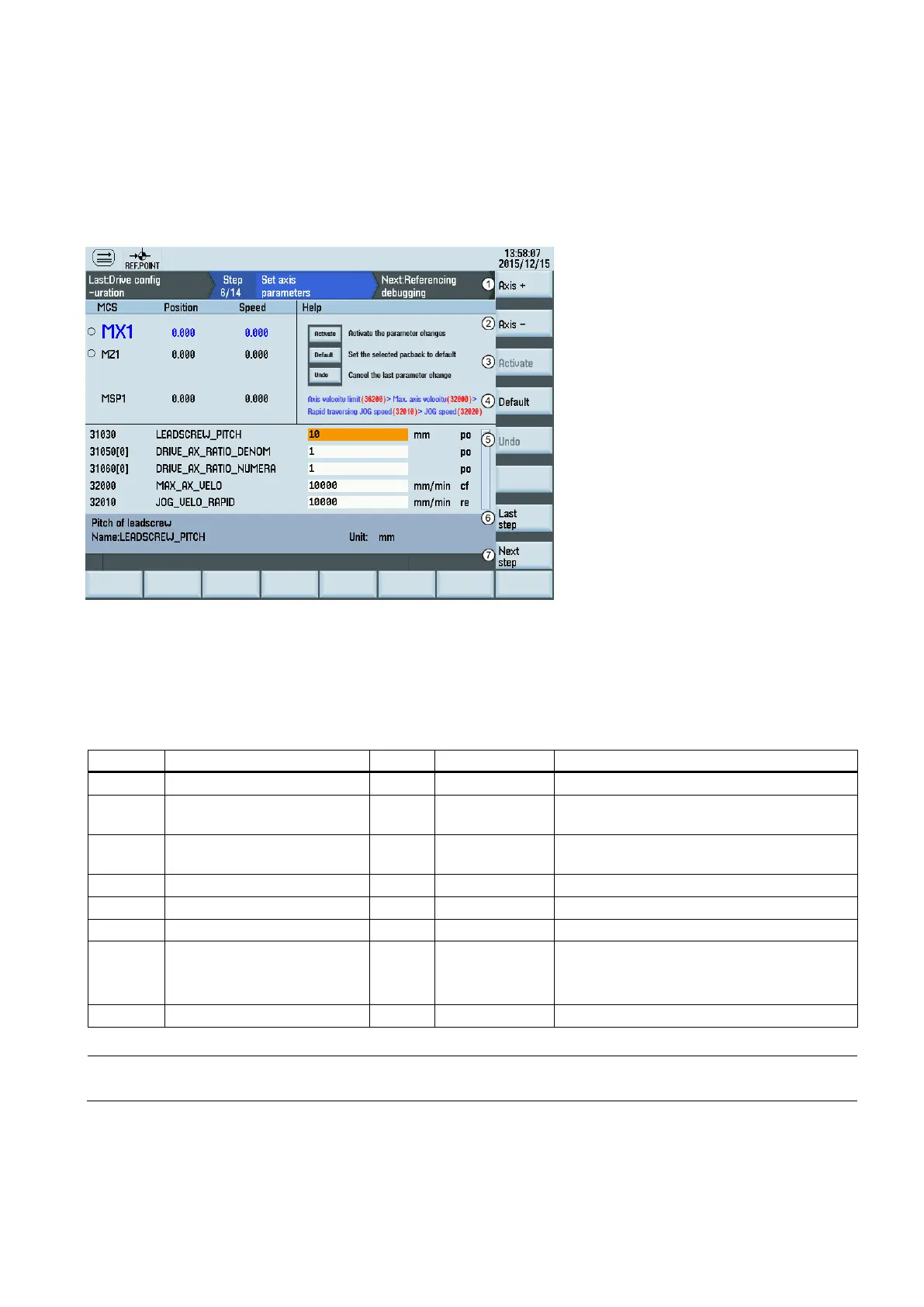

Setting feed axis parameters
You can set the axis-specific machine data for each feed axis under this commissioning step.
Softkey functions
①
Selects the next axis
⑤
Cancels the last change to the parameter
②
Selects the previous axis
⑥
Returns to the last step
③
Activates the modified values
⑦
Proceeds to the next step
④
Resets the value of the selected parameter to default
Axis-specific parameters
No.
Name
Unit
Range
Description
31030
LEADSCREW_PITCH
mm
≥ 0
Pitch of leadscrew
31050[0] DRIVE_AX_RATIO_DENOM - 1 to 2147000000 Number of the gearbox teeth at drive end (de-
nominator of the deceleration ratio)
31060[0] DRIVE_AX_RATIO_NUMERA - 1 to 2147000000 Number of the gearbox teeth at leadscrew end
(numerator of the deceleration ratio)
32000
MAX_AX_VELO
mm/min
-
Maximum axis velocity
32010
JOG_VELO_RAPID
mm/min
-
Rapid traverse in jog mode
32020
JOG_VELO
mm/min
-
Jog axis velocity
32100 AX_MOTION_DIR - -1 to 1 Traversing direction (not control direction)
• = 1: Motor runs clockwise
•
= -1: Motor runs counter-clockwise
36200[0]
AX_VELO_LIMIT
mm/min
-
Threshold value for velocity monitoring
Note
The value of MD36200 should be 10% higher
than that of MD32000; otherwise, alarm 025030 occurs.
