Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
01/2017
73
3.3.3
Mounting the SIMOTICS M-1PH1 main motor
3.3.3.1
Mounting orientation and outline dimensions

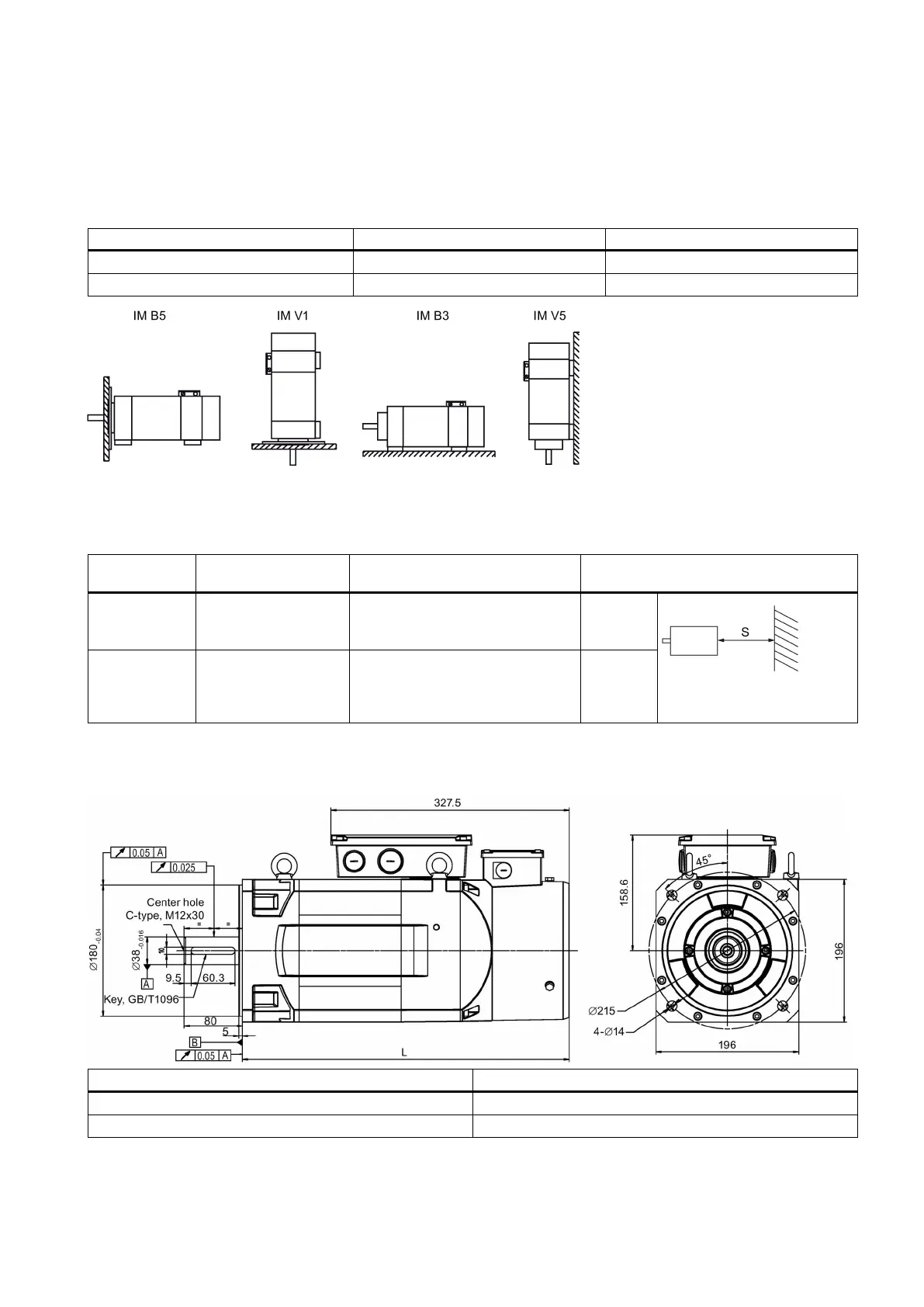

Mounting orientation
The SIMOTICS M-1PH1 main motor supports flange mounting and foot mounting as shown below:
Mounting method
Standard type of construction
Rotated type of construction
Foot mounting
IM B3
IM V5
Flange mounting
IM B5
IM V1
Minimum clearance between a fan and parts/components mounted by the customer
The minimum clearance between a fan and parts/components mounted by the customer or the air discharge opening, and
the minimum clearance S between the air intake/air discharge opening and adjacent components must be maintained.
Shaft height
(mm)
Fan mounting
Minimum clearance between a fan
and parts/components (mm)
Minimum clearance S (mm)
100 Non-drive end axial,
can be rotated through
180°
30 30
132 Non-drive end radial,
can be ordered differ-
ently from the mount-
ing type
60 60
Motor dimensions
Shaft height 100 mm: flange mounting (unit: mm)
Motor
L
1PH1101-1❑F12-❑GA0
419
1PH1103-1❑F12-❑GA0
449
