Commissioning Manual
184 01/2017
Hint message for 1st service plan
Alarm message for 1st service plan
Assigned global variables
Notification message of the first service plan
Alarm message for 1st service plan
Relevant PLC machine data
None

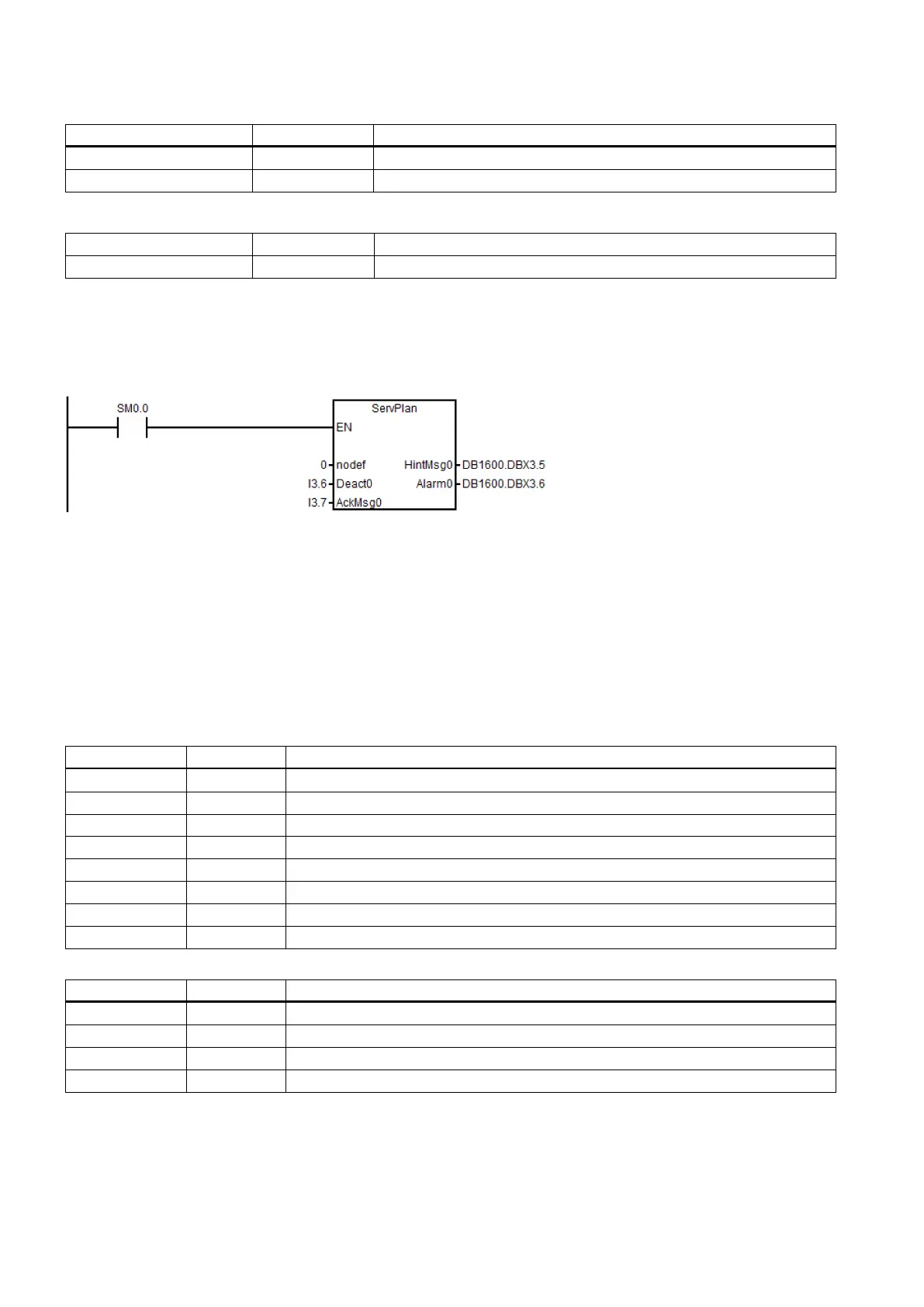

Example for calling subroutine 48
Subroutine 49 - GearChg1_Auto (automatic spindle gear change)
Purpose
Subroutine 49 is used to automatically change the gear for the analog spindle with 2-level gear detection signals.
During a gear change, the spindle oscillates and the PLC outputs the gear change signal. When the PLC detects that the
desired gear level has been reached, the gear change has been completed.
You cannot use this subroutine together with subroutine 50.
Local variable definition
Inputs
Delay time for gear changing
Monitor time for gear-change in position
Delay time for the spindle to come to standstill
Monitor time for the whole gear change process, must > D_CHG + D_MON + D_S0
Low gear level in position (NO)
High gear level in position (NO)
LGo BOOL Low gear level output
Low gear level in-position indicator
High gear level in-position indicator
