Machining the workpiece
5.12 Displaying G functions and auxiliary functions
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
165

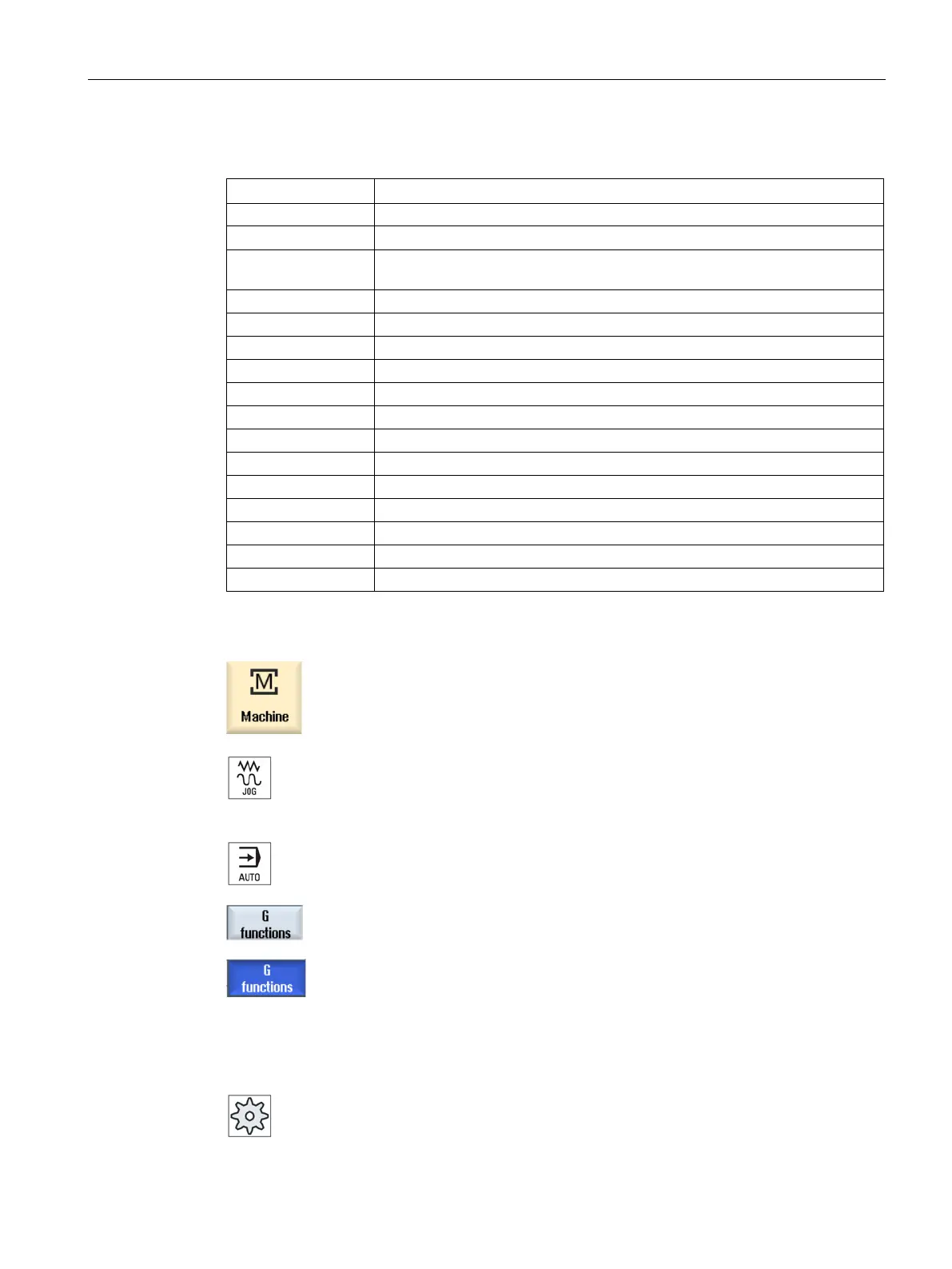

G groups displayed by default (ISO code)
Group
Meaning
G group 1
Modally active motion commands (e.g. G0, G1, G2, G3)
G group 2 Non-modally active motion commands, dwell time (e.g. G4, G74, G75)
G group 3 Programmable offsets, working area limitations and pole programming (e.g.
TRANS, ROT, G25, G110)
G group 6 Plane selection (e.g. G17, G18)
G group 7
Tool radius compensation (e.g. G40, G42)
G group 8
Settable work offset (e.g. G54, G57, G500)
G group 9
Offset suppression (e.g. SUPA, G53)
G group 10
Exact stop - continuous-path mode (e.g. G60, G641)
G group 13
Workpiece dimensioning inches/metric (e.g. G70, G700)
G group 14
Workpiece dimensioning absolute/incremental (G90)
G group 15
Feedrate type (e.g. G93, G961, G972)
G group 16
Feedrate override on inside and outside curvature (e.g. CFC)
G group 21
Acceleration profile (e.g. SOFT, DRIVE)
G group 22
Tool offset types (e.g. CUT2D, CUT2DF)
G group 29
Radius/diameter programming (e.g. DIAMOF, DIAMCYCOF)
G group 30
Compressor ON/OFF (e.g. COMPOF)
Procedure
1.
Select the "Machine" operating area.
...
2.
Press the <JOG>, <MDA> or <AUTO> key.
3.
Press the "G functions" softkey.
The "G Functions" window is opened.
4.
Press the "G functions" softkey again to hide the window.
The G groups selection displayed in the "G Functions" window may differ.
Machine manufacturer
Please refer to the machine manufacturer's specifications.
