Siemens SINUMERIK 828D User Manual

Simulating machining
6.8 Program control during the simulation
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
209

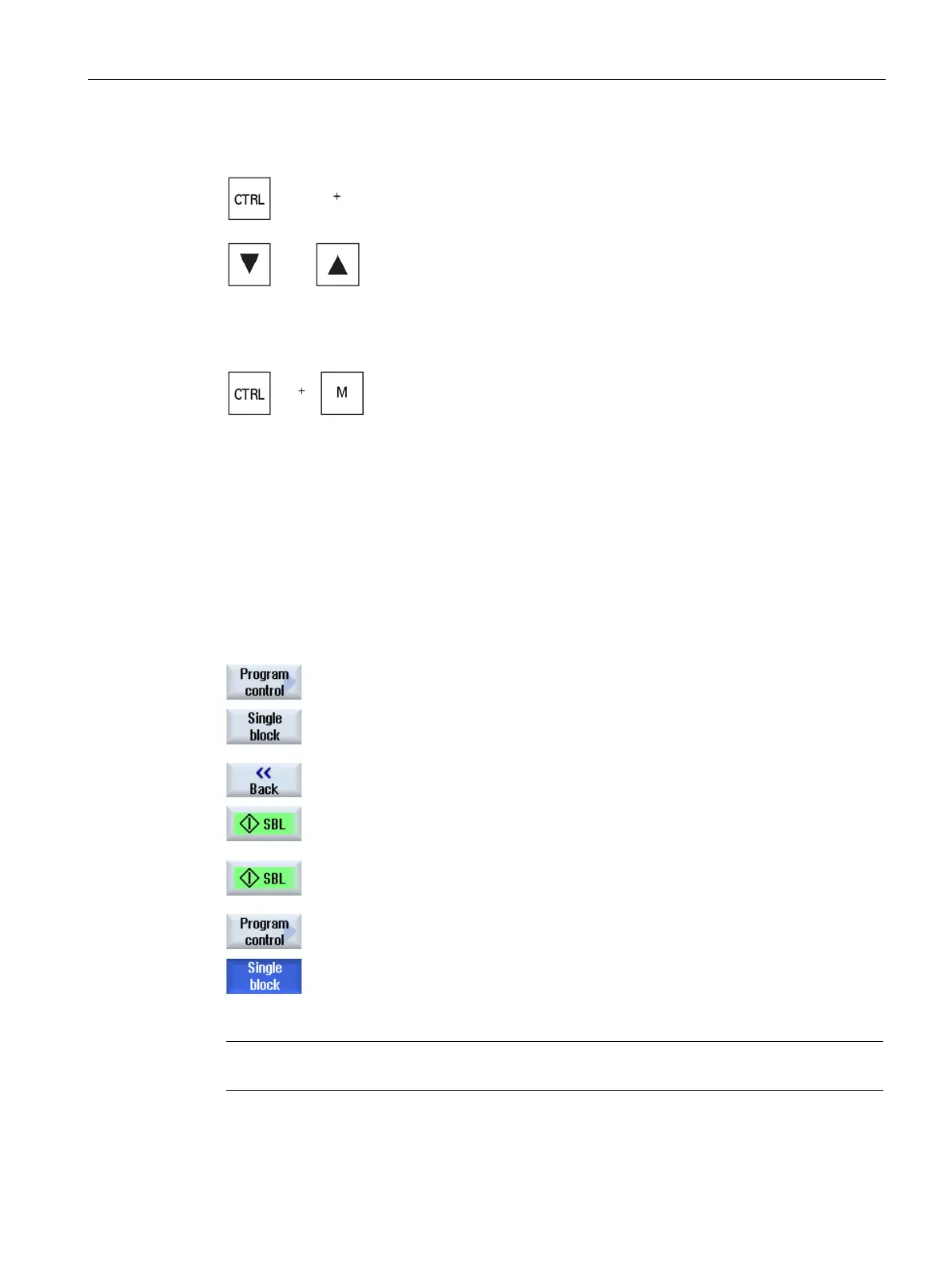

Toggling between "Override +" and "Override -"
Press the <CTRL> and <Cursor down> or <Cursor up> keys to to
ggle
between the "Override +" and "Override
-" softkeys.
Selecting the maximum feedrate
Press the <CTRL> and <M> keys to select the maximum feedrate of
120%.
6.8.2
Simulating the program block by block
You can control the program execution during simulation, i.e. execute a program block by
block, as when executing a program.
Procedure
1.
Simulation is started.
2.
Press the "Program control" and "Single block" softkeys.
3.
Press the "Back" and "Start SBL" softkeys.
The pending block of the program is simulated and then stops.
4.
Press "Start SBL" as many times as you want to simulate a single pr
o-
gram block.
5.
Press the "Program control" and the "Single block" softkeys to exist
the
single block mode.
Note
Enabling/disabling single block
