Programming technology functions (cycles)
9.7 Additional cycles and functions in ShopTurn
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
595
Programming a circle with known radius
To program a circle or arc with a known radius, use the "Circle radius" function.
The tool traverses a circular arc with the programmed radius from its actual position to the
programmed target position at the machining feedrate. To do this, the system calculates the
position of the circle center point.
You can choose to traverse the arc in the clockwise or anticlockwise direction. Depending on
the direction of rotation, there are two options for approaching the target position from the
current position via an arc of the specified radius.
You can select the arc of your choice by entering a positive or a negative sign for the radius.

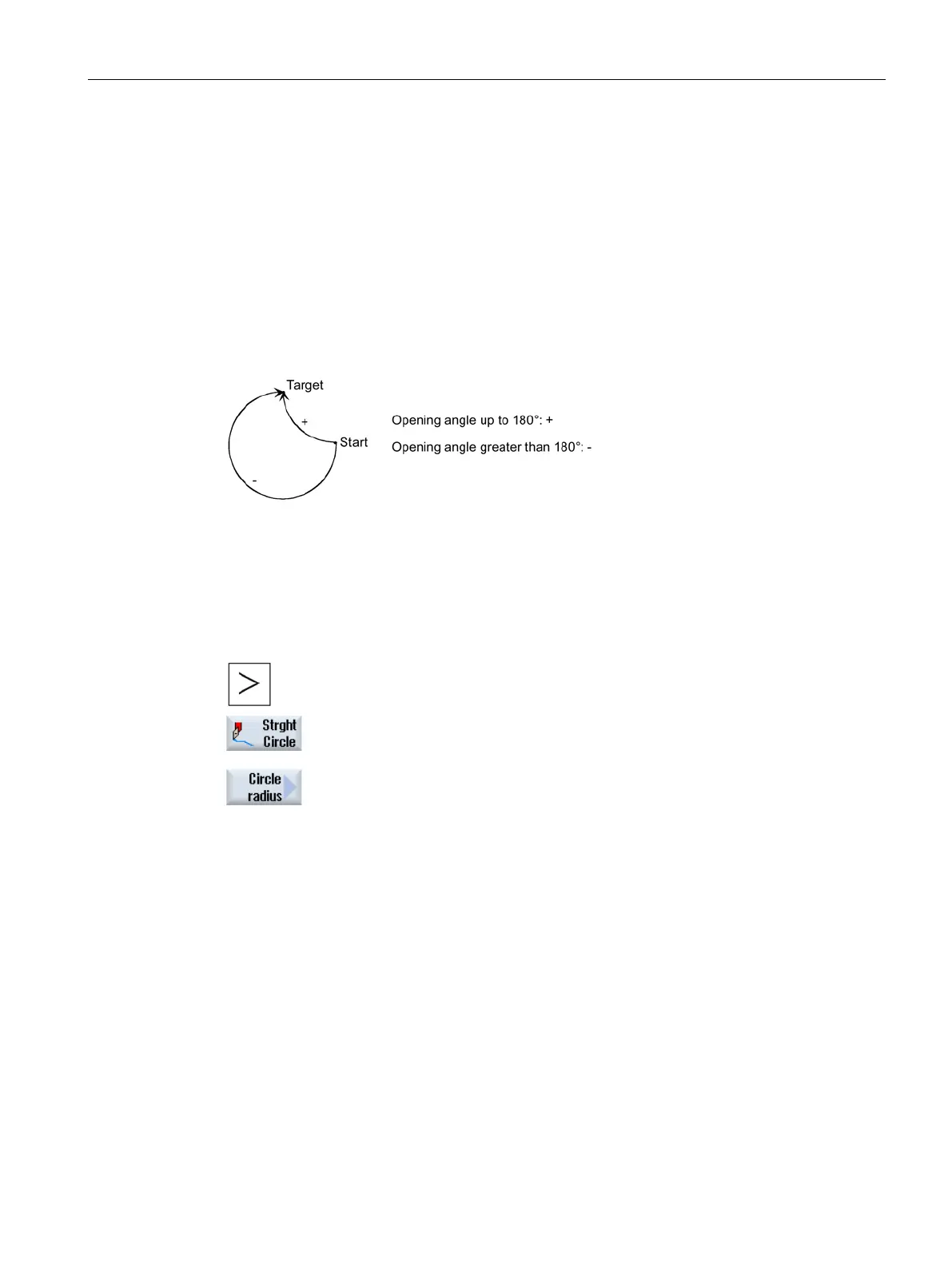

Figure 9-10 Opening angle
The ShopTurn program to be processed has been created and you are
in the editor.
Press the menu forward key and the "Straight Circle" softkey.
Press the "Circle radius" softkey.
