Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

805

Working with Manual Machine

15.1

Manual Machine

"Manual Machine" offers a comprehensive spectrum of functions for manual mode.

You can carry out all the important machining processes without writing a program.

Software options

You require the "ShopMill/ShopTurn" option for working with "Manual M

chine"

Machining

Machining before the center of rotation is typical.

Machine manufacturer

Please refer to the machine manufacturer's specifications.

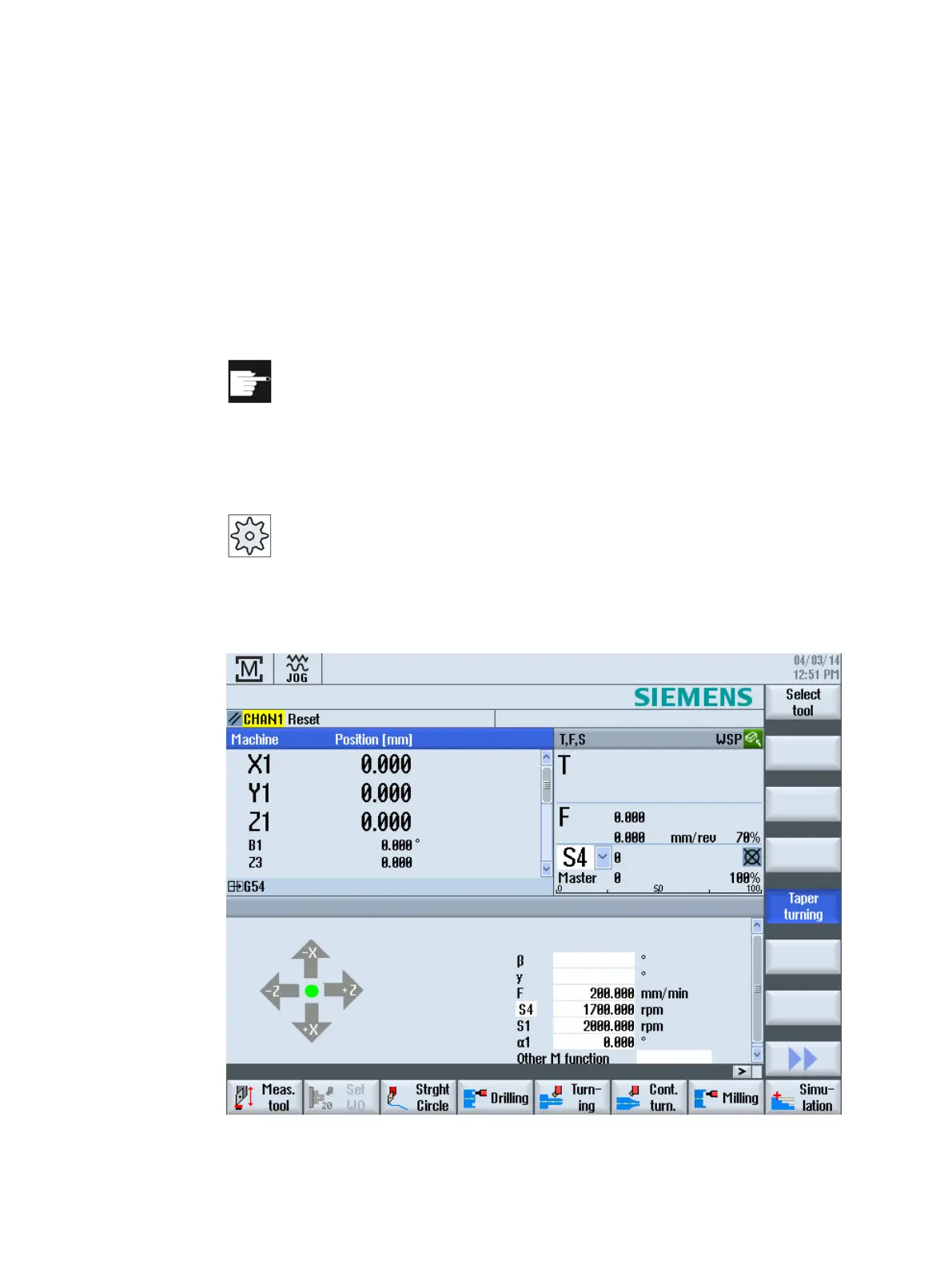

Main screen

After power-up of the control, the basic screen appears for "Manual Machine".
