Machining the workpiece

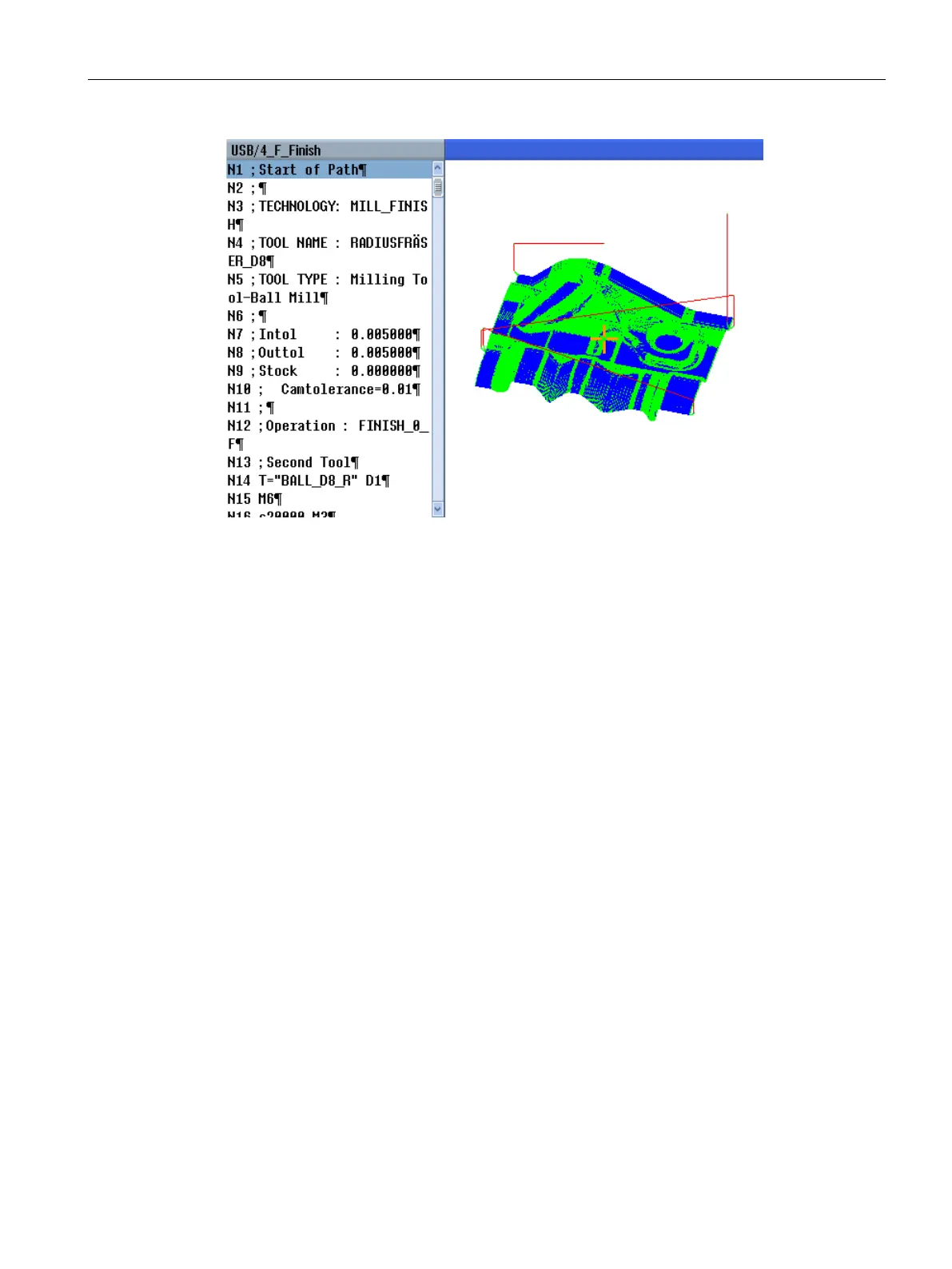

5.13 Mold making view
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
171
NC blocks that can be interpreted
The following NC blocks are supported for the mold making view:
● Types
– Lines
G0, G1 with X Y Z
– Circles
G2, G3 with center point I, J, K or radius CR, depending on the working plane G17,
G18, G19, CIP with circular point I1, J1, K1 or radius CR
– Polynomials
POLY with X, Y, Z or PO[X] PO[Y] PO[Z]
– B-splines
BSPLINE with degree SD (SD < 6), node PL, weights PW
– Absolute data AC and incremental data IC are possible
– For G2, G3 and different radii at the start and end, an Archimedes spiral is used
