Programming technology functions (cycles)

9.1 Drilling

Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

337

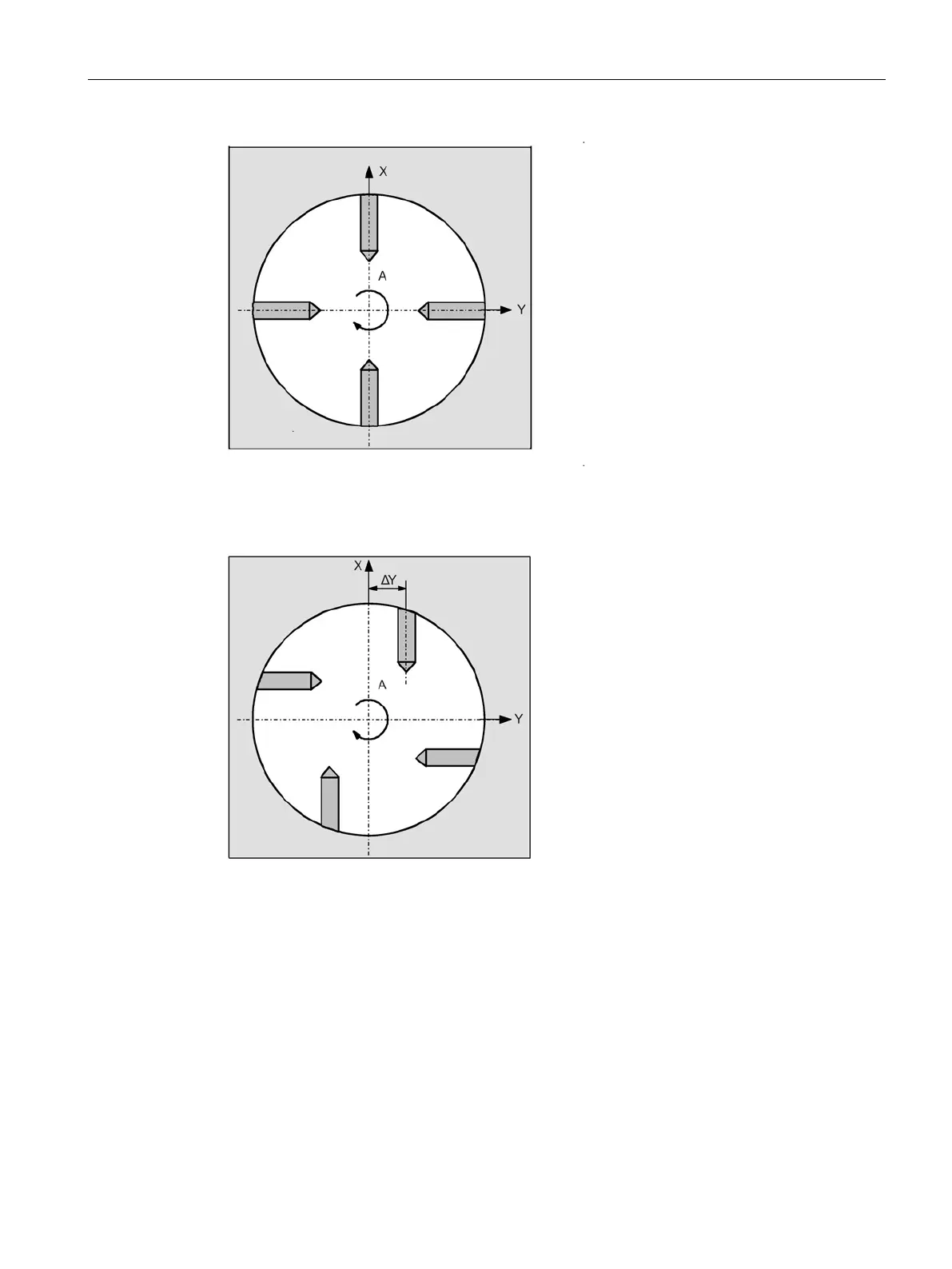

Figure 9-1 Holes pointing toward the center

Figure 9-2 Y axis is not centered above the cylinder

YZCA plane

You program in YZC if the Y axis should also move during machining. A value can be

specified for each position. In addition to the possibilities of ZC, the following is also possible,

for example.
