Tool management
12.8 Magazine
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
703

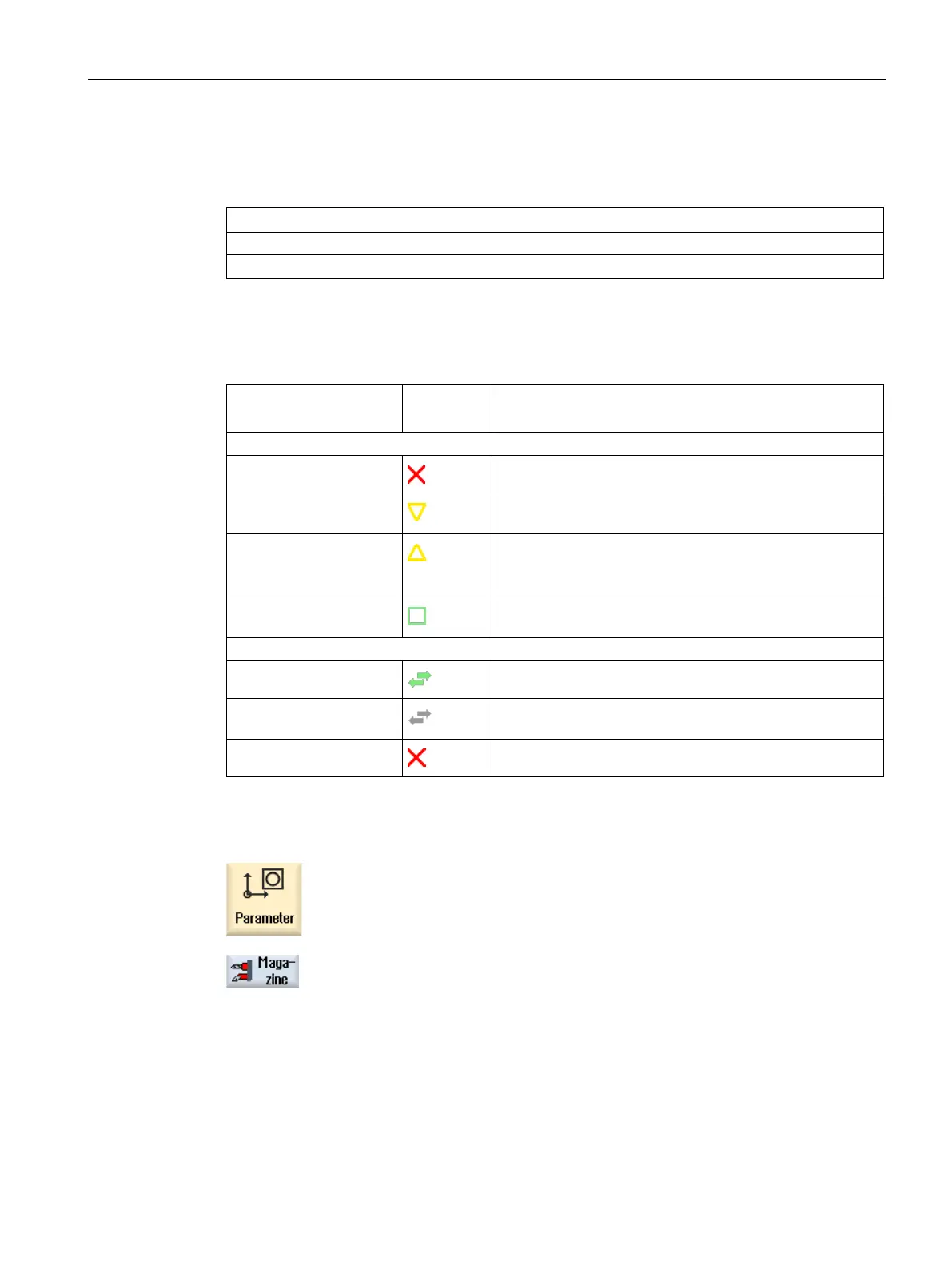

If you have set up unique cutting edge numbers, these are displayed in the first column.
Unique cutting edge number
SN Cutting edge number
Red "X"
The tool is disabled.
Yellow triangle pointing
The prewarning limit has been reached.
Yellow triangle pointing
upward
The tool is in a special state.
Place the cursor on the marked tool. A tooltip provides a
Green border
The tool is preselected.
Green double arrow
The magazine location is positioned at the change position.
Gray double arrow (con-
The magazine location is positioned at the loading position.
Red "X"
The magazine location is disabled.
Select the "Parameter" operating area.
Press the "Magazine” softkey.
Displaying tool details (Page 707)
Changing the cutting edge position or tool type (Page 717)
