PERIODIC MAINTENANCE
3-27
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

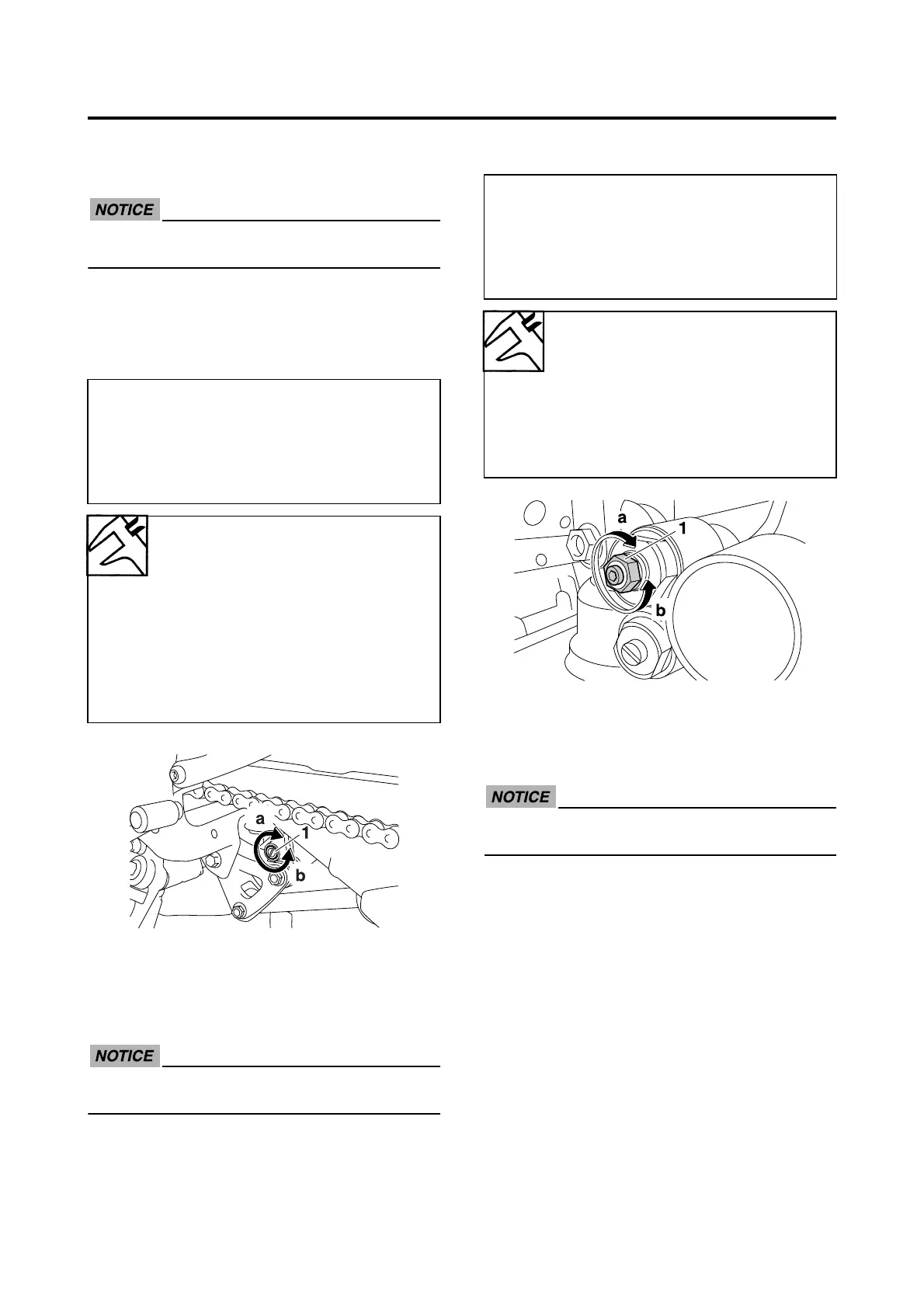

Rebound damping
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Rebound damping
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting screw “1” in direction “a”
or “b”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Compression damping (for fast compres-
sion damping)
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Compression damping (for fast compres-
sion damping)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting bolt “1” in direction “a” or
“b”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Compression damping (for slow compres-
sion damping)
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Compression damping (for slow com-
pression damping)
Direction “a”
Rebound damping is increased
(suspension is harder).
Direction “b”
Rebound damping is decreased
(suspension is softer).
Rebound damping adjusting
positions
Minimum
20 click(s) out*
Standard
15 click(s) out*
Maximum
3 click(s) out*
* With the adjusting screw fully turned in
Direction “a”
Compression damping is increased
(suspension is harder).
Direction “b”
Compression damping is decreased
(suspension is softer).
Minimum
4 turn(s) out*
Standard
3 turn(s) out*
Maximum
0 turn(s) out*
* With the adjusting screw fully turned in
