HANDLEBARS
4-56
EAS22850
HANDLEBARS

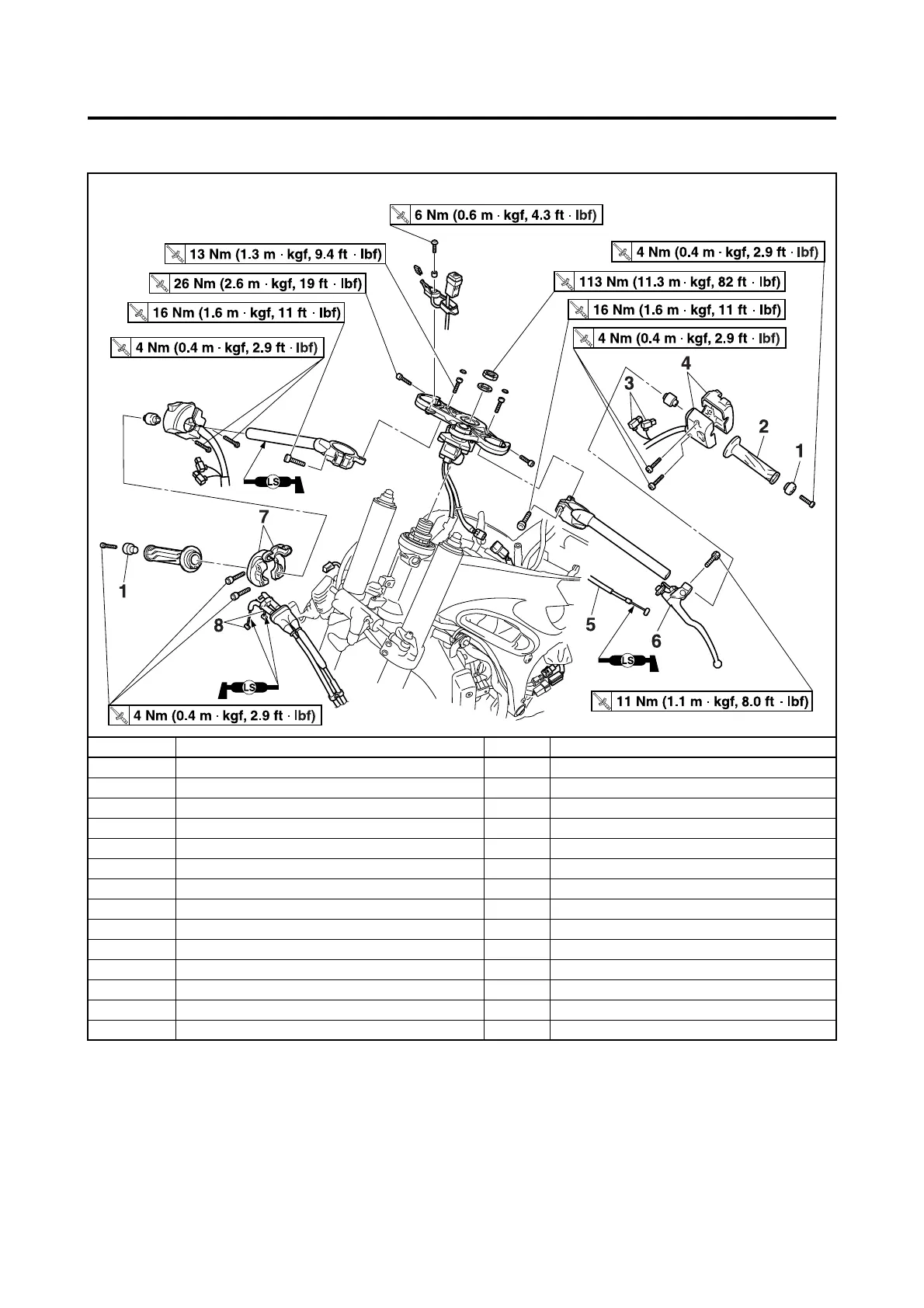

Removing the handlebars
Order Job/Parts to remove Q’ty Remarks
Side cowling Refer to “GENERAL CHASSIS” on page 4-1.
Air duct Refer to “GENERAL CHASSIS” on page 4-1.
Front cowling Refer to “GENERAL CHASSIS” on page 4-1.
Front brake master cylinder Refer to “FRONT BRAKE” on page 4-31.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case Refer to “AIR FILTER CASE” on page 7-5.
1 Grip end 2
2 Handlebar grip 1
3 Clutch switch connector 2 Disconnect.
4 Left handlebar switch 1
5Clutch cable 1
6 Clutch lever assembly 1
7 Throttle cable housing 1
8 Throttle cable 2
To Next Page
