Yamaha YZF-R1(B) 2012 User Manual

FEATURES
1-7

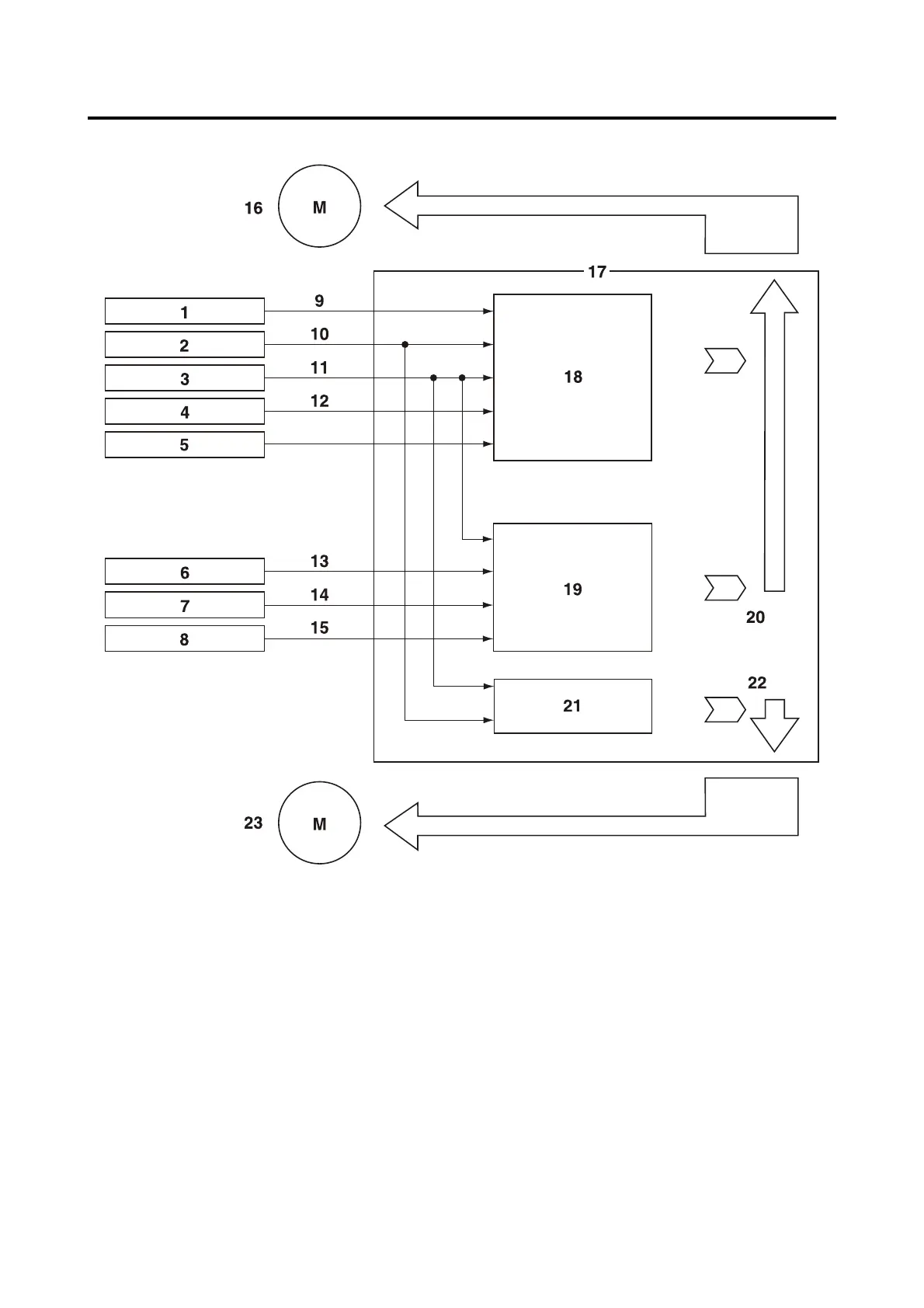

YCC-T/YCC-I control outline
1. Accelerator position sensor
2. Throttle position sensor
3. Crankshaft position sensor
4. Rear speed sensor
5. D-mode switch
6. Coolant temperature sensor
7. Neutral switch
8. Atmospheric pressure sensor
9. Accelerator position (two signals)
10.Throttle position (two signals)
11.Engine revolution
12.Vehicle speed
13.Coolant temperature
14.Neutral/In gear
15.Atmospheric pressure
16.Throttle servo motor
17.ECU (engine control unit)
18.Base map
19.Idle speed control
20.Calculated throttle valve opening angle
21.Base map
22.Air funnel position (Calculation value)
23.Intake funnel servo motor
