TRANSMISSION
5-93

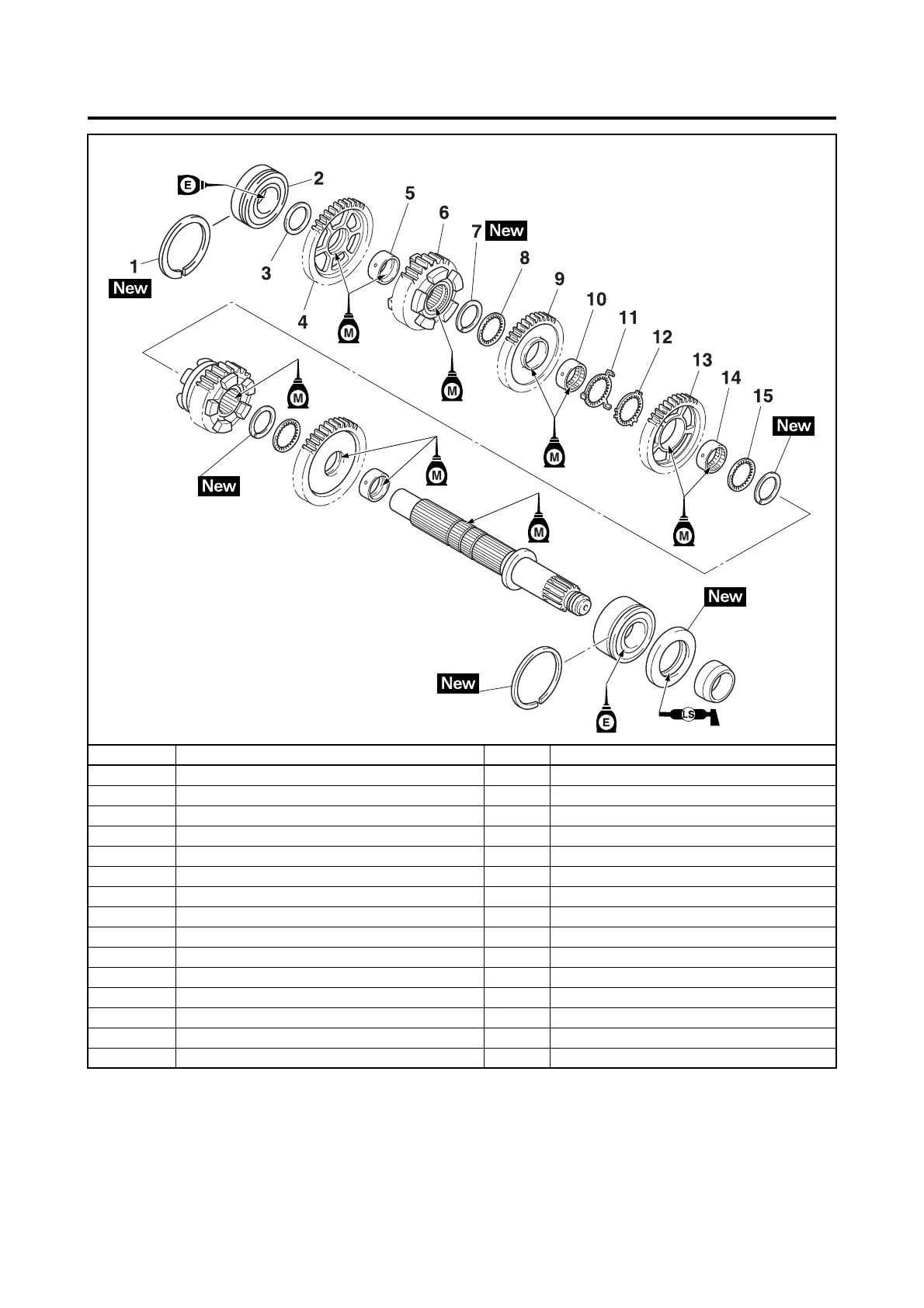

Disassembling the drive axle assembly
Order Job/Parts to remove Q’ty Remarks
1 Circlip 1
2 Bearing 1
3 Washer 1
4 1st wheel gear 1
5 Collar 1
6 5th wheel gear 1
7 Circlip 1
8 Washer 1
9 3rd wheel gear 1
10 Collar 1
11 Toothed lock washer 1
12 Toothed lock washer retainer 1
13 4th wheel gear 1
14 Collar 1
15 Washer 1
