TRANSMISSION

5-92

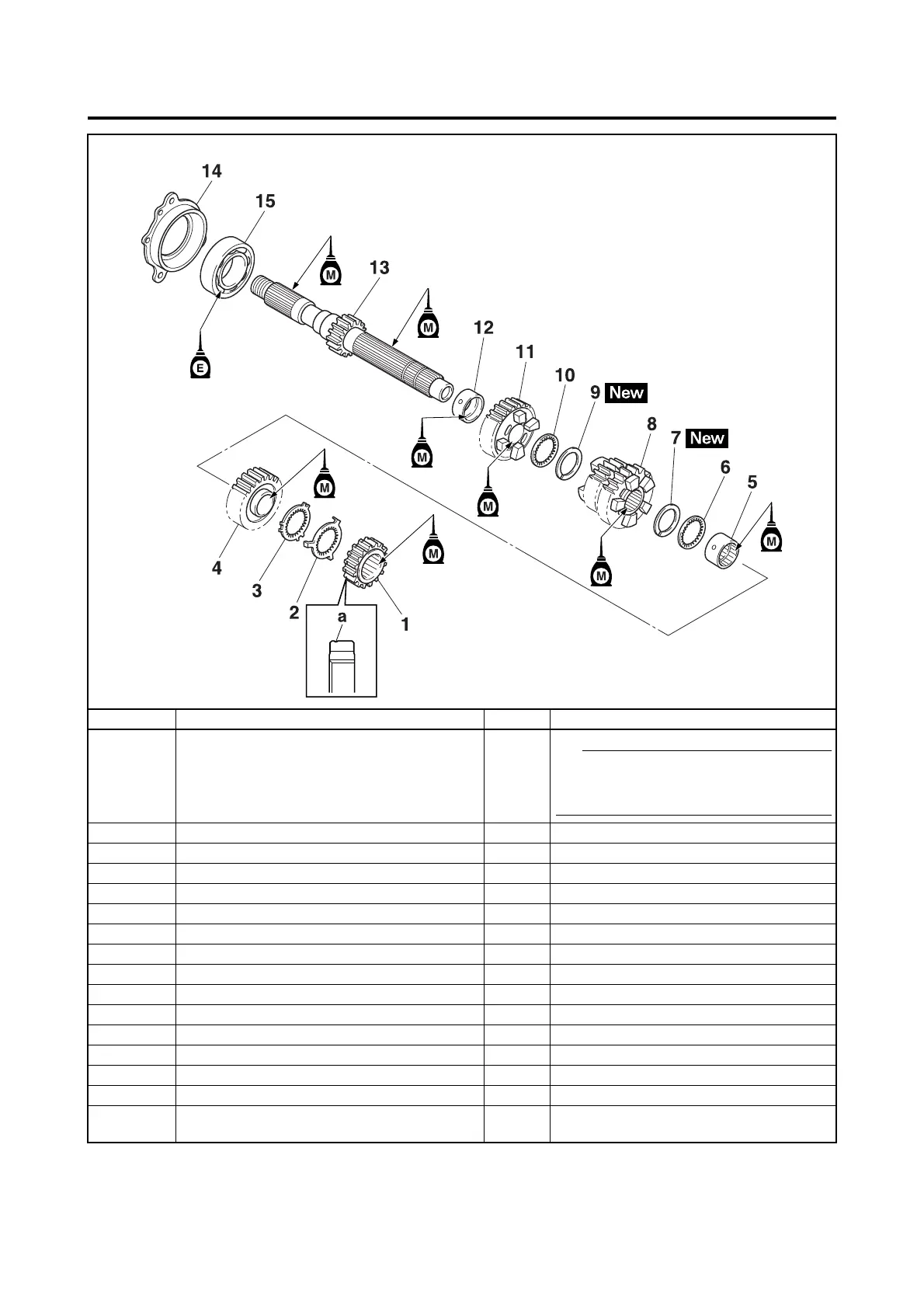

Disassembling the main axle assembly

Order Job/Parts to remove Q’ty Remarks

1 2nd pinion gear 1

TIP

When installing 2nd pinion gear, install the

gear with groove “a” facing to the toothed

lock washer.

2 Toothed lock washer 1

3 Toothed lock washer retainer 1

4 6th pinion gear 1

5 Collar 1

6 Washer 1

7 Circlip 1

8 3rd/4th pinion gear 1

9 Circlip 1

10 Washer 1

11 5th pinion gear 1

12 Collar 1

13 Main axle 1

14 Bearing housing 1

15 Bearing 1

For installation, reverse the removal proce-

dure.
