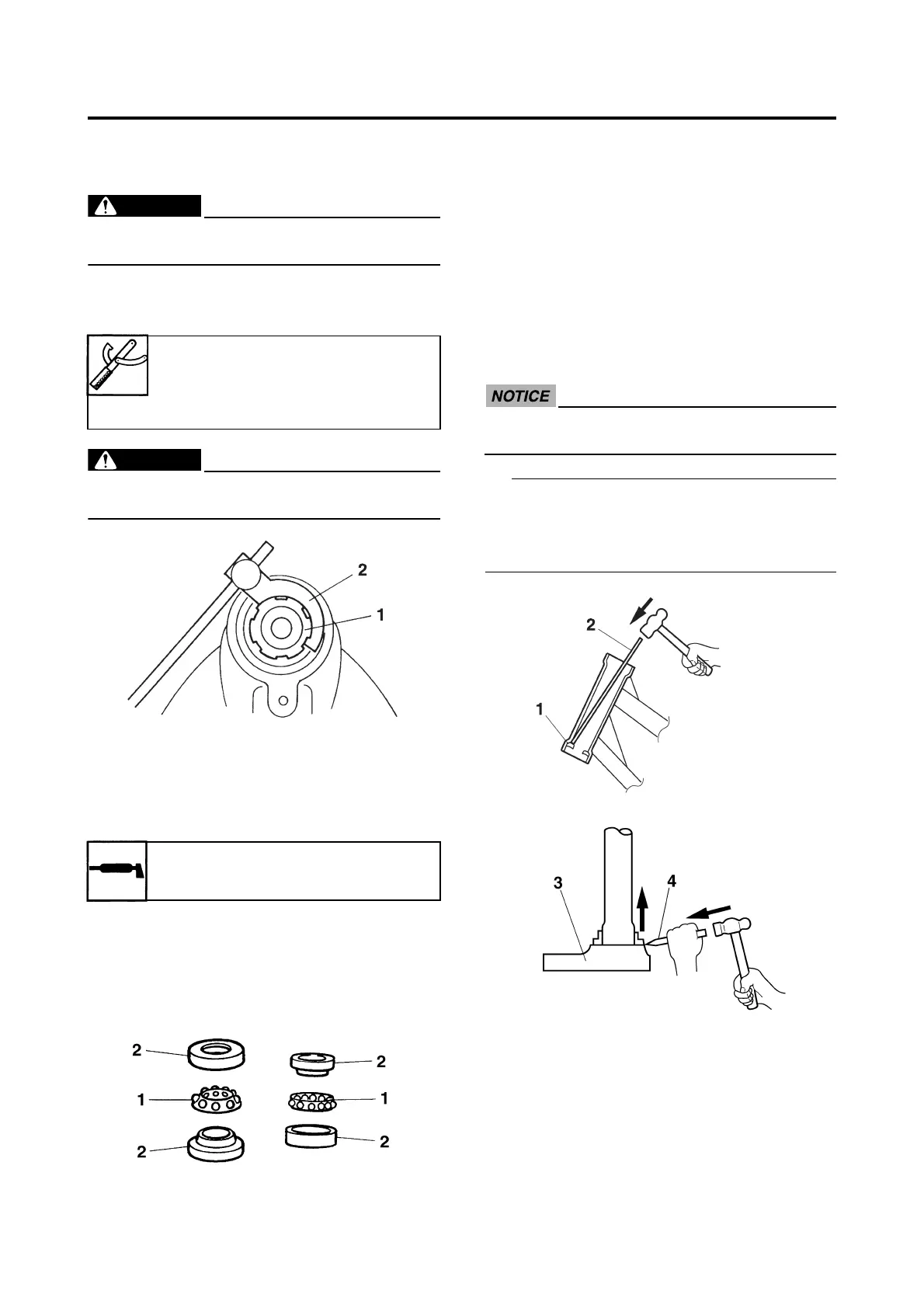

STEERING HEAD
4-74
EAS23110
REMOVING THE LOWER BRACKET
1. Stand the vehicle on a level surface.
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
2. Remove:
• Upper ring nut “1”
(with the steering nut wrench “2”)
EWA13730
Securely support the lower bracket so that
there is no danger of it falling.
EAS23130
CHECKING THE STEERING HEAD
1. Wash:
• Bearings
• Bearing races
2. Check:
• Bearings “1”
• Bearing races “2”
Damage/pitting → Replace.
3. Replace:
• Bearings
• Bearing races
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the bearing races “1” from the
steering head pipe with a long rod “2” and
hammer.
b. Remove the bearing race from the lower
bracket “3” with a floor chisel “4” and ham-
mer.
c. Install a new dust seal and new bearing
races.
ECA14270
If the bearing race is not installed properly,
the steering head pipe could be damaged.
• Always replace the bearings and bearing
races as a set.
• Whenever the steering head is disassem-
bled, replace the lower bearing dust seal.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
4. Check:
• Upper bracket
• Lower bracket
(along with the steering stem)
Bends/cracks/damage → Replace.
Steering nut wrench
90890-01403
Exhaust flange nut wrench
YU-A9472
Recommended cleaning solvent
Kerosene
To Next Page
