AIR INDUCTION SYSTEM
7-23

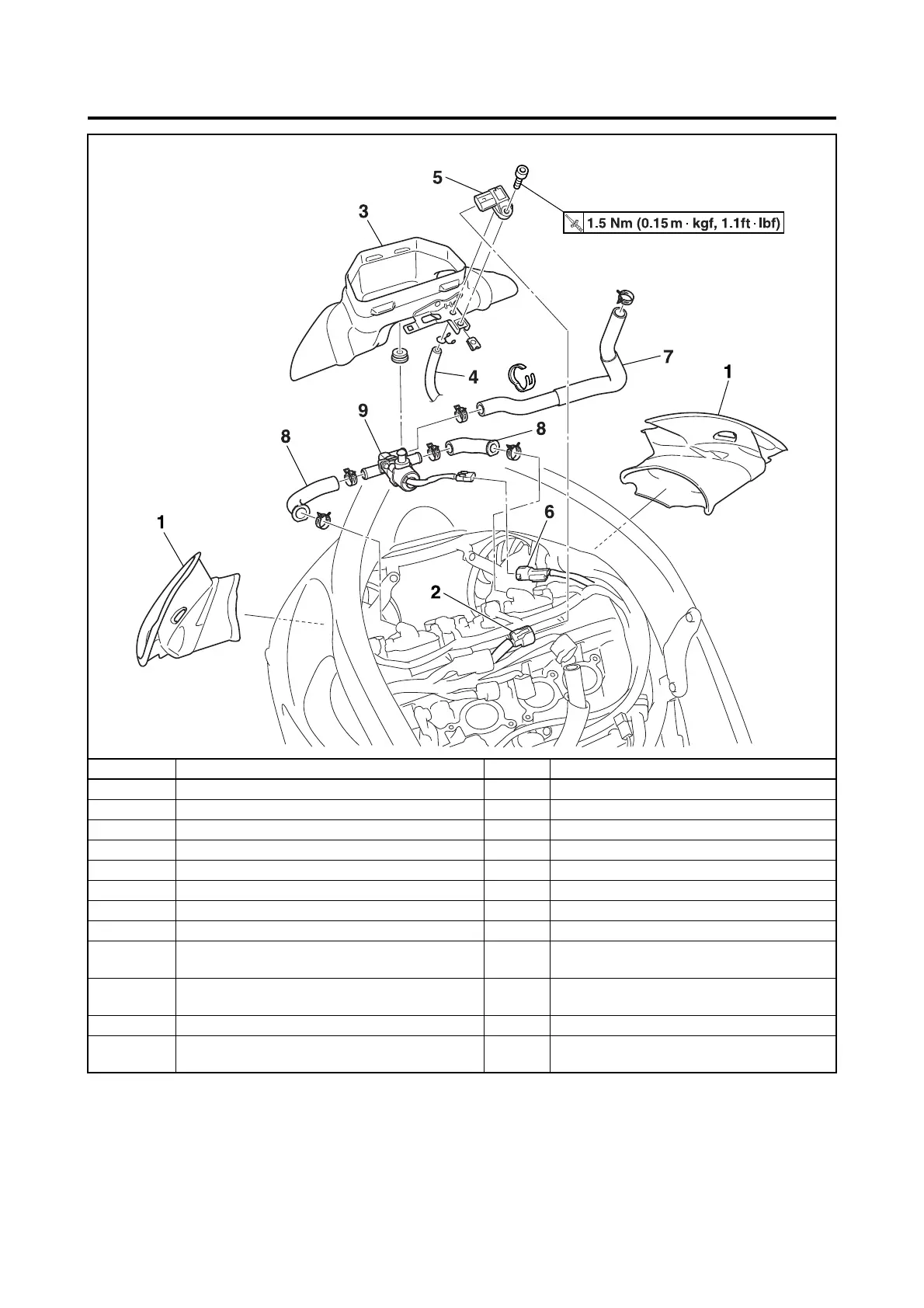

Removing the air cut-off valve assembly and hoses
Order Job/Parts to remove Q’ty Remarks
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case Refer to “AIR FILTER CASE” on page 7-5.
1 Side air filter case duct 2
2 Atmospheric pressure sensor coupler 1 Disconnect.
3 Air filter case duct 1
4 Atmospheric pressure sensor hose 1 Disconnect.
5 Atmospheric pressure sensor 1
6 Air induction system solenoid coupler 1 Disconnect.
7
Air induction system hose (air filter case to air
cut-off valve)
1
8
Air induction system hose (air cut-off valve to
reed valve cover)
2
9 Air cut-off valve 1
For installation, reverse the removal proce-
dure.
