ENGINE INSPECTION
5-1
EAS14B1052
ENGINE INSPECTION
EAS14B1053
MEASURING THE COMPRESSION PRES-
SURE
The following procedure applies to all of the
cylinders.
Insufficient compression pressure will result in
a loss of performance.
1. Measure:
• Valve clearance
Out of specification → Adjust.
Refer to “ADJUSTING THE VALVE
CLEARANCE” on page 3-5.
2. Start the engine, warm it up for several
minutes, and then turn it off.
3. Remove:
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
• Air filter case
Refer to “AIR FILTER CASE” on page 7-
5.
• Air filter case duct
Refer to “AIR INDUCTION SYSTEM” on
page 7-21.
4. Remove:
• Ignition coils
• Spark plugs
ECA13340
Before removing the spark plugs, use com-
pressed air to blow away any dirt accumu-
lated in the spark plug wells to prevent it
from falling into the cylinders.

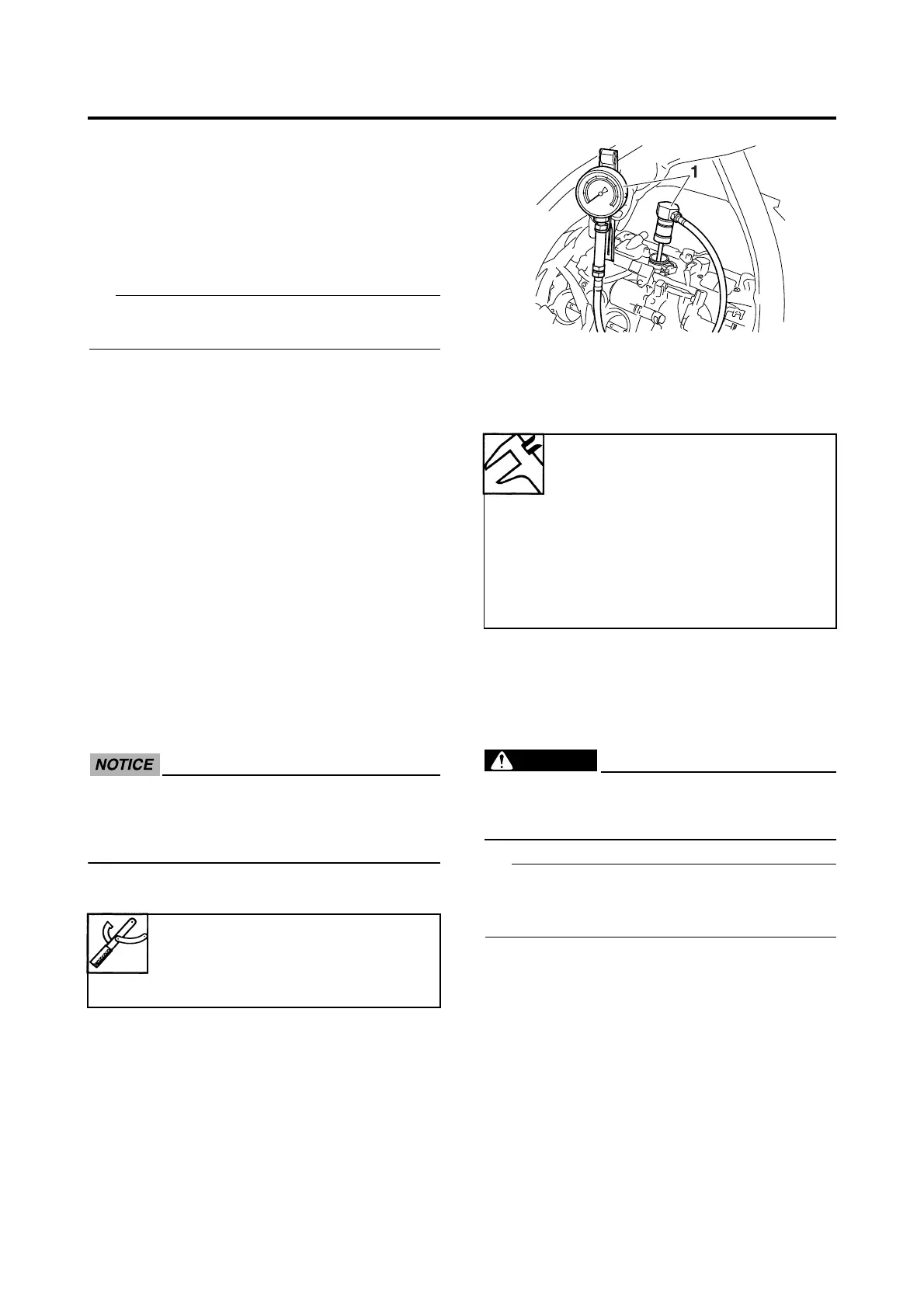

5. Install:
• Compression gauge “1”
6. Measure:
• Compression pressure
Out of specification → Refer to steps (c)
and (d).
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Set the main switch to “ON”.
b. With the throttle wide open, crank the
engine until the reading on the compres-
sion gauge stabilizes.
EWA14B1017
To prevent sparking the plug, remove all
ignition coil couplers before cranking the
engine.
The difference in compression pressure
between cylinders should not exceed 100 kPa
(1 kgf/cm², 14 psi).
c. If the compression pressure is above the
maximum specification, check the cylinder
head, valve surfaces and piston crown for
carbon deposits.
Carbon deposits → Eliminate.
d. If the compression pressure is below the
minimum specification, pour a teaspoonful
of engine oil into the spark plug bore and
measure again.
Refer to the following table.
Compression gauge
90890-03081
Engine compression tester
YU-33223
Standard compression pres-
sure (at sea level)
1480 kPa/350 r/min (14.8 kgf/
cm²/350 r/min, 210.5 psi/350 r/
min)
Minimum–Maximum
1290–1660 kPa/350 r/min
(12.9–16.6 kgf/cm²/350 r/min,
183.5–236.1 psi/350 r/min)
