FEATURES
1-12
EAS1KB8102
INSTRUMENT FUNCTIONS
Multi-function meter unit
EWA14B1014
Be sure to stop the vehicle before making
any setting changes to the multi-function
meter unit. Changing settings while riding
can distract the operator and increase the
risk of an accident.
The multi-function meter unit is equipped with
the following:
• A speedometer
• A tachometer
• An odometer
• Two tripmeters (which show the distance
traveled since they were last set to zero)
• A fuel reserve tripmeter (which shows the
distance traveled since the fuel level warning
light came on)
• A stopwatch
•A clock
• A coolant temperature display
• An air intake temperature display
• A transmission gear display
• A drive mode display (which shows the
selected drive mode)
• A fuel consumption display (instantaneous
and average consumption functions)
• A traction control system mode display
(which shows the selected traction control
system mode)
• A self-diagnosis device
• A display brightness and shift timing indicator
light control mode
• Be sure to turn the key to “ON” before using
the “SELECT” and “RESET” buttons, except
for setting the display brightness and shift
timing indicator light control mode.
• For the U.K. only: To switch the speedometer
and odometer/tripmeter/fuel consumption
displays between kilometers and miles,
press the “SELECT” button for at least one
second.
Tachometer
The electric tachometer allows the rider to
monitor the engine speed and keep it within
the ideal power range.
When the key is turned to “ON”, the tachome-
ter needle sweeps once across the r/min range
and then returns to zero r/min in order to test
the electrical circuit.
ECA14B1015
Do not operate the engine in the tachome-
ter red zone.
Red zone: 13750 r/min and above

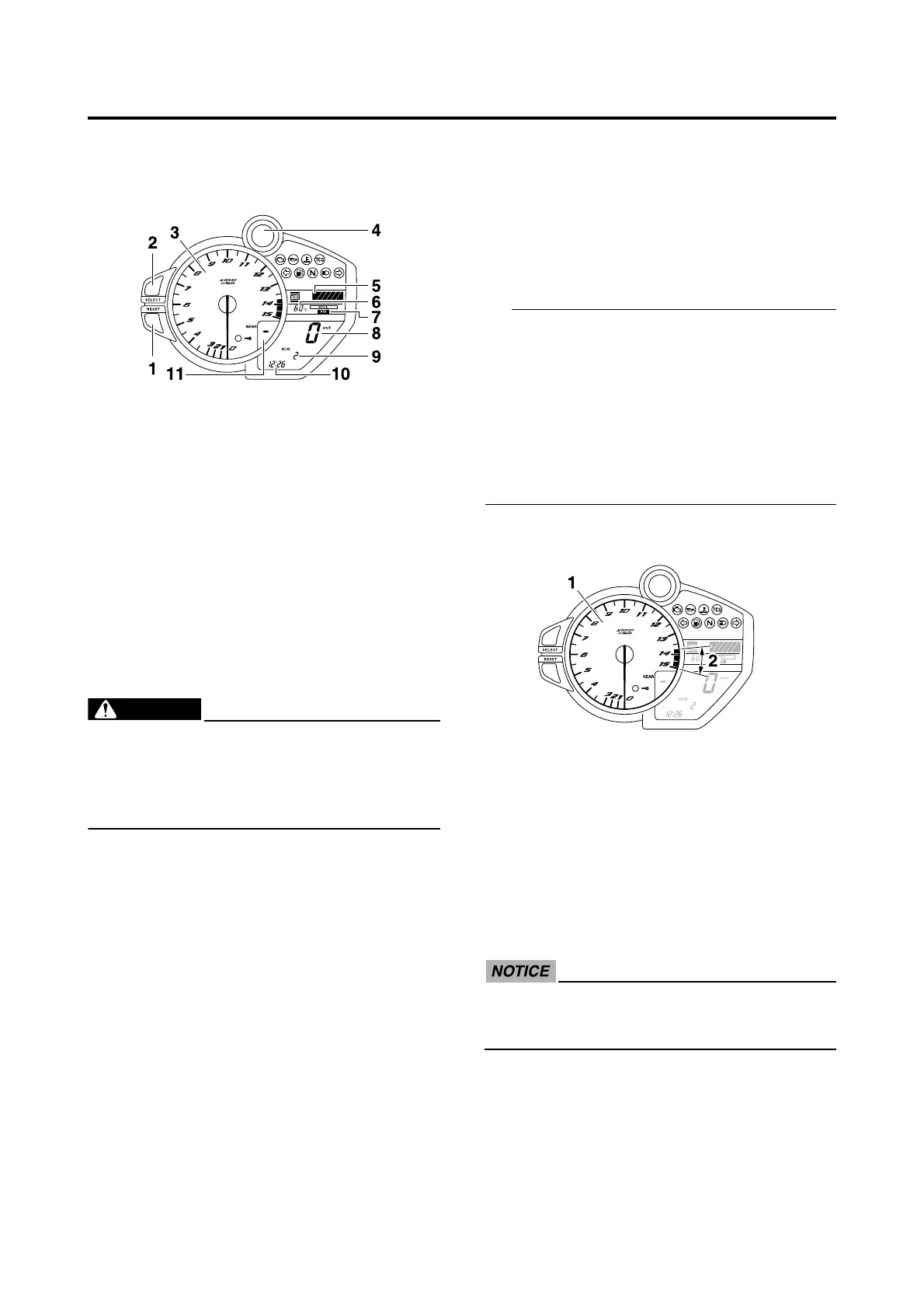

1. “RESET” button
2. “SELECT” button
3. Tachometer
4. Shift timing indicator light
5. Traction control system mode display
6. Coolant temperature display/air intake tem-
perature display
7. Drive mode display
8. Speedometer
9. Odometer/tripmeter/fuel reserve tripmeter/
instantaneous fuel consumption display/
average fuel consumption display
10.Clock/stopwatch
11.Transmission gear display
1. Tachometer
2. Tachometer red zone
