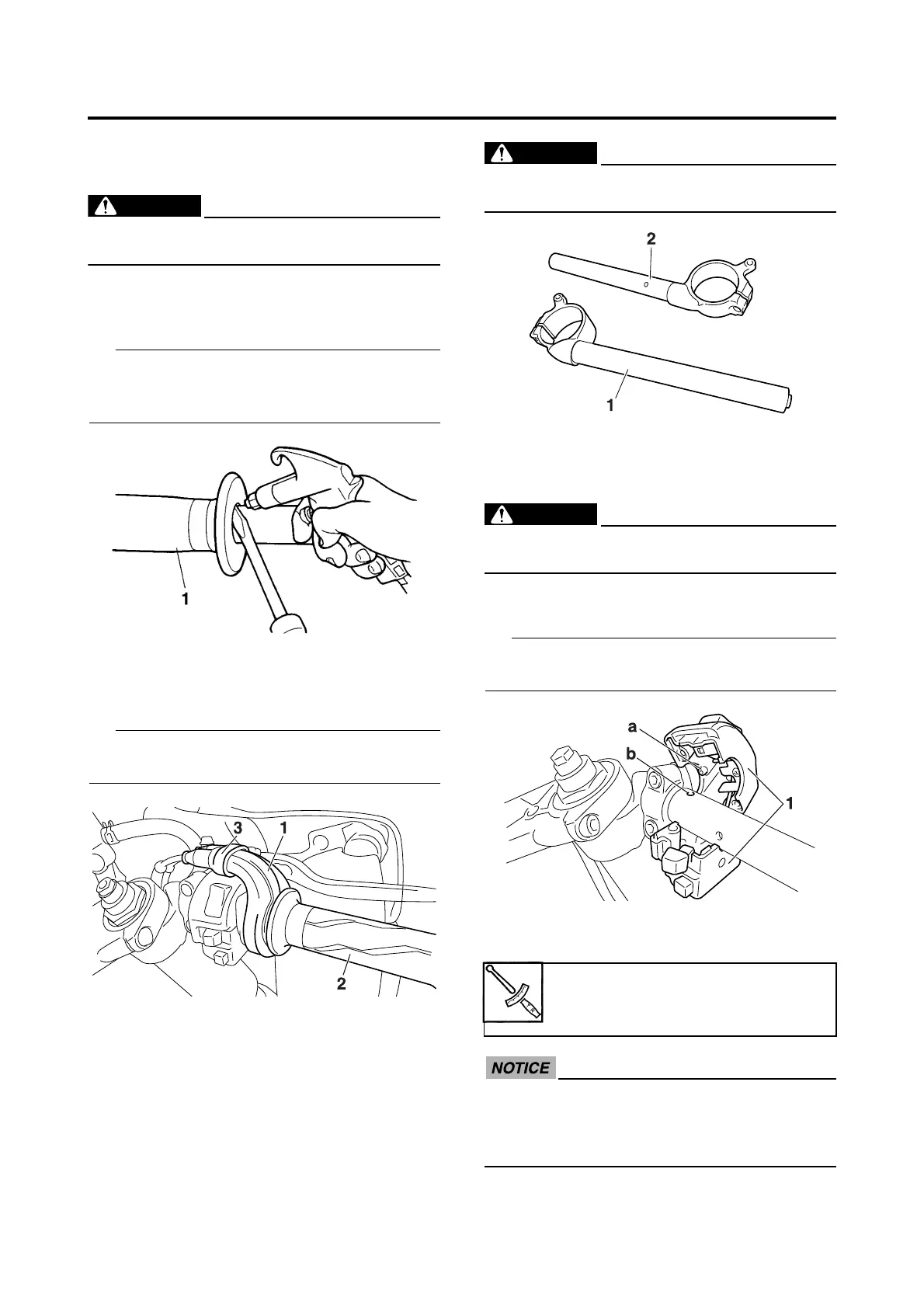

HANDLEBARS
4-58
EAS22870
REMOVING THE HANDLEBAR
1. Stand the vehicle on a level surface.
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
2. Remove:
• Grip end
• Handlebar grip “1”
Blow compressed air between the handlebar
and the handlebar grip, and gradually push the
grip off the handlebar.
3. Remove:
• Throttle cable housing “1”
• Throttle grip “2”
While removing the throttle cable housing, pull
back the rubber cover “3”.
EAS22890
CHECKING THE HANDLEBARS
1. Check:
• Left handlebar “1”
• Right handlebar “2”
Bends/cracks/damage → Replace.
EWA13690
Do not attempt to straighten a bent handle-
bar as this may dangerously weaken it.
EAS22900
INSTALLING THE HANDLEBARS
1. Stand the vehicle on a level surface.
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
2. Install:
• Right handlebar switch “1”
Align the projection “a” on the right handlebar
switch with the hole “b” on the right handlebar.
3. Install:
• Brake master cylinder holder “1”
ECA14260
• Install the brake master cylinder holder
with the “UP” mark facing up.
• First, tighten the upper bolt, and then the
lower bolt.
Front brake master cylinder
holder bolt
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
To Next Page
