PICKUP ROTOR

5-42

EAS14B1058

PICKUP ROTOR

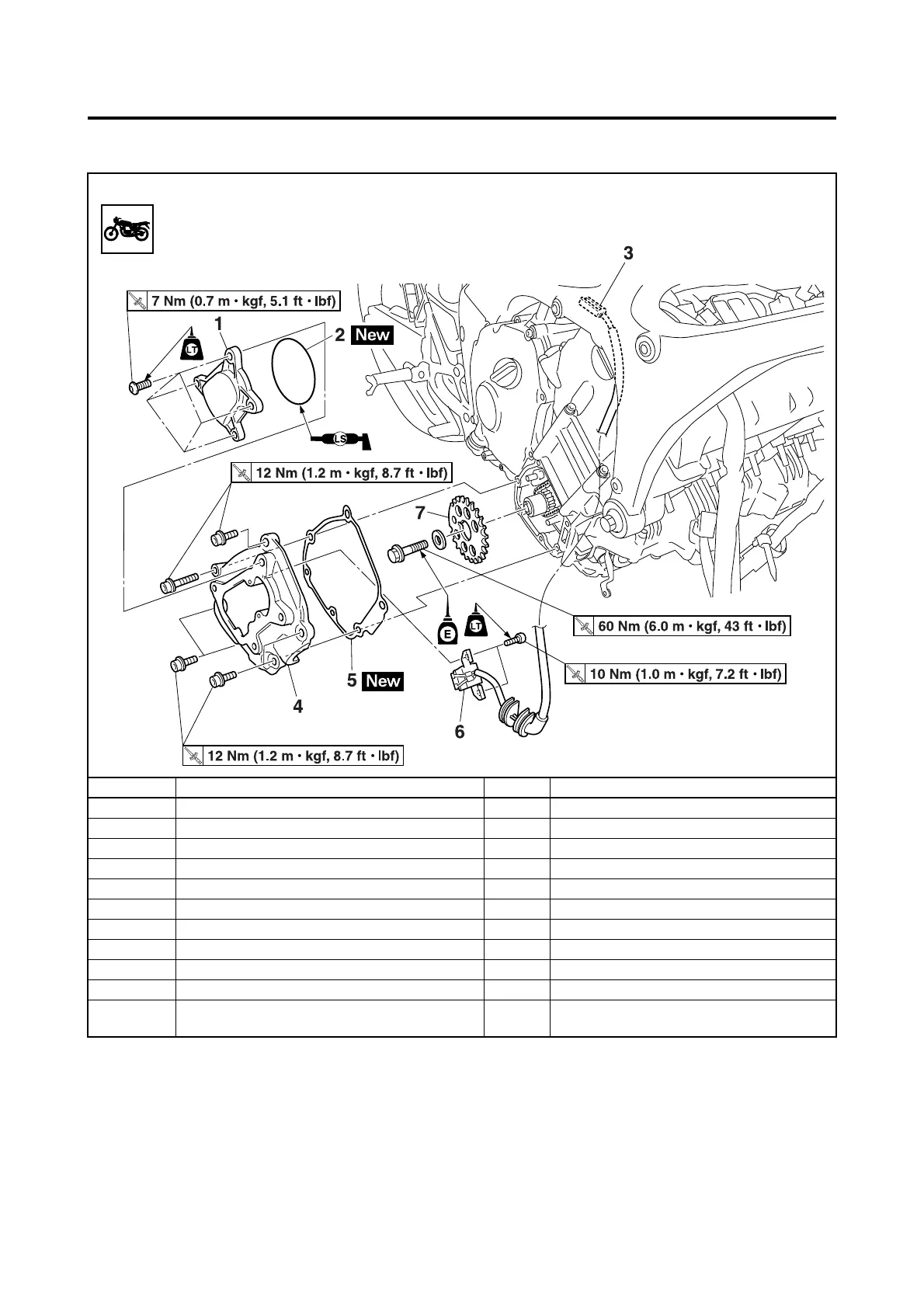

Removing the pickup rotor

Order Job/Parts to remove Q’ty Remarks

Fuel tank Refer to “FUEL TANK” on page 7-1.

Generator cover Refer to “GENERATOR” on page 5-36.

Air filter case Refer to “AIR FILTER CASE” on page 7-5.

1 Pickup rotor cover 1 1

2O-ring 1

3 Crankshaft position sensor coupler 1 Disconnect.

4 Pickup rotor cover 2 1

5 Pickup rotor cover 2 gasket 1

6 Crankshaft position sensor 1

7Pickup rotor 1

For installation, reverse the removal proce-

dure.
