OIL PUMP
5-50
EAS24921
OIL PUMP

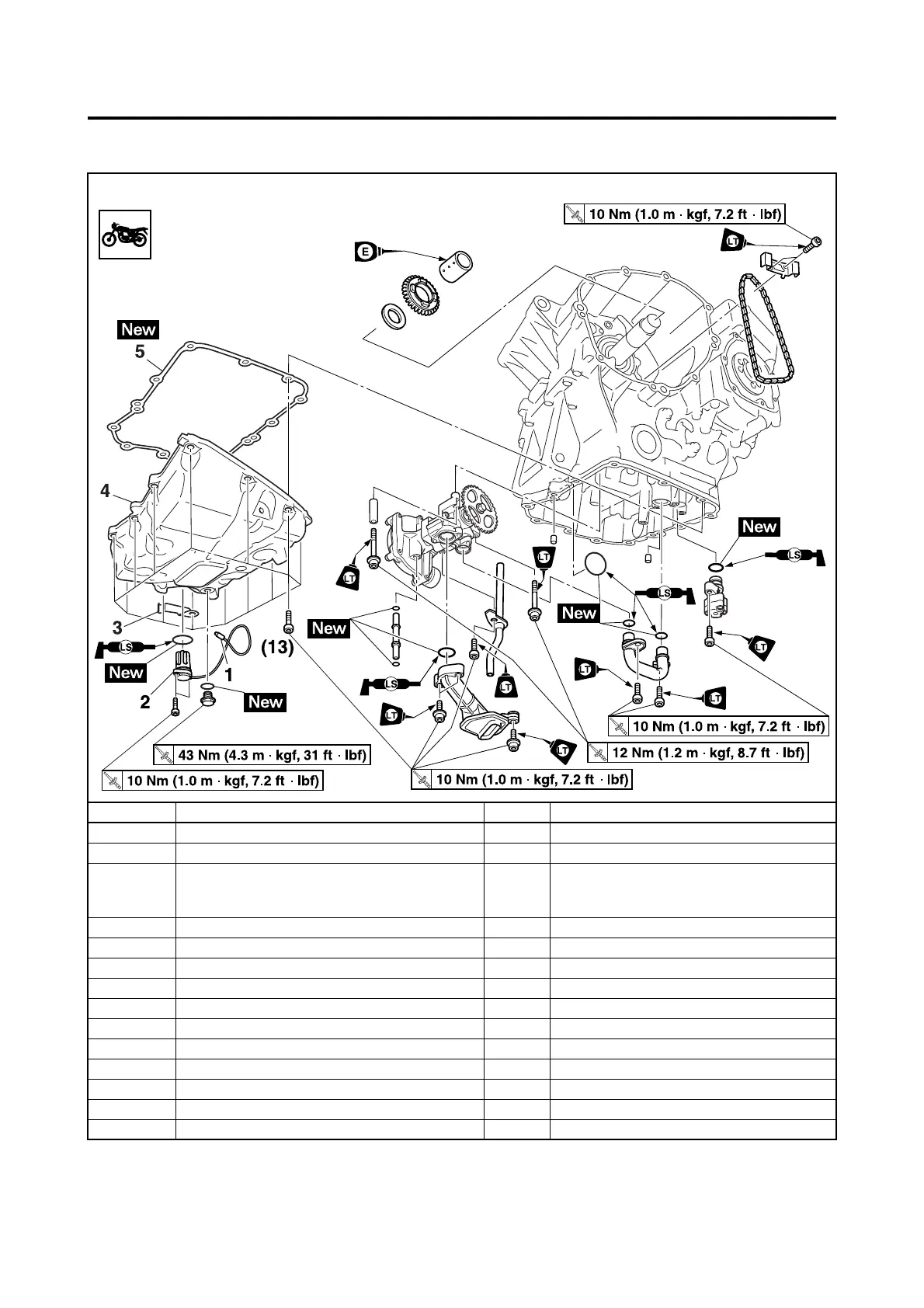

Removing the oil pan and oil/water pump assembly
Order Job/Parts to remove Q’ty Remarks
Side cowling Refer to “GENERAL CHASSIS” on page 4-1.
Lower cowling Refer to “GENERAL CHASSIS” on page 4-1.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-29.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Coolant reservoir Refer to “RADIATOR” on page 6-1.
Exhaust pipe Refer to “ENGINE REMOVAL” on page 5-3.
Clutch assembly Refer to “CLUTCH” on page 5-58.
Water pump inlet pipe Refer to “RADIATOR” on page 6-1.
Water pump outlet pipe Refer to “OIL COOLER” on page 6-5.
1 Oil level switch lead coupler 1 Disconnect.
2 Oil level switch 1
3 Oil level switch lead holder 1
4Oil pan 1
5 Oil pan gasket 1
