SWINGARM
4-83
EAS23360

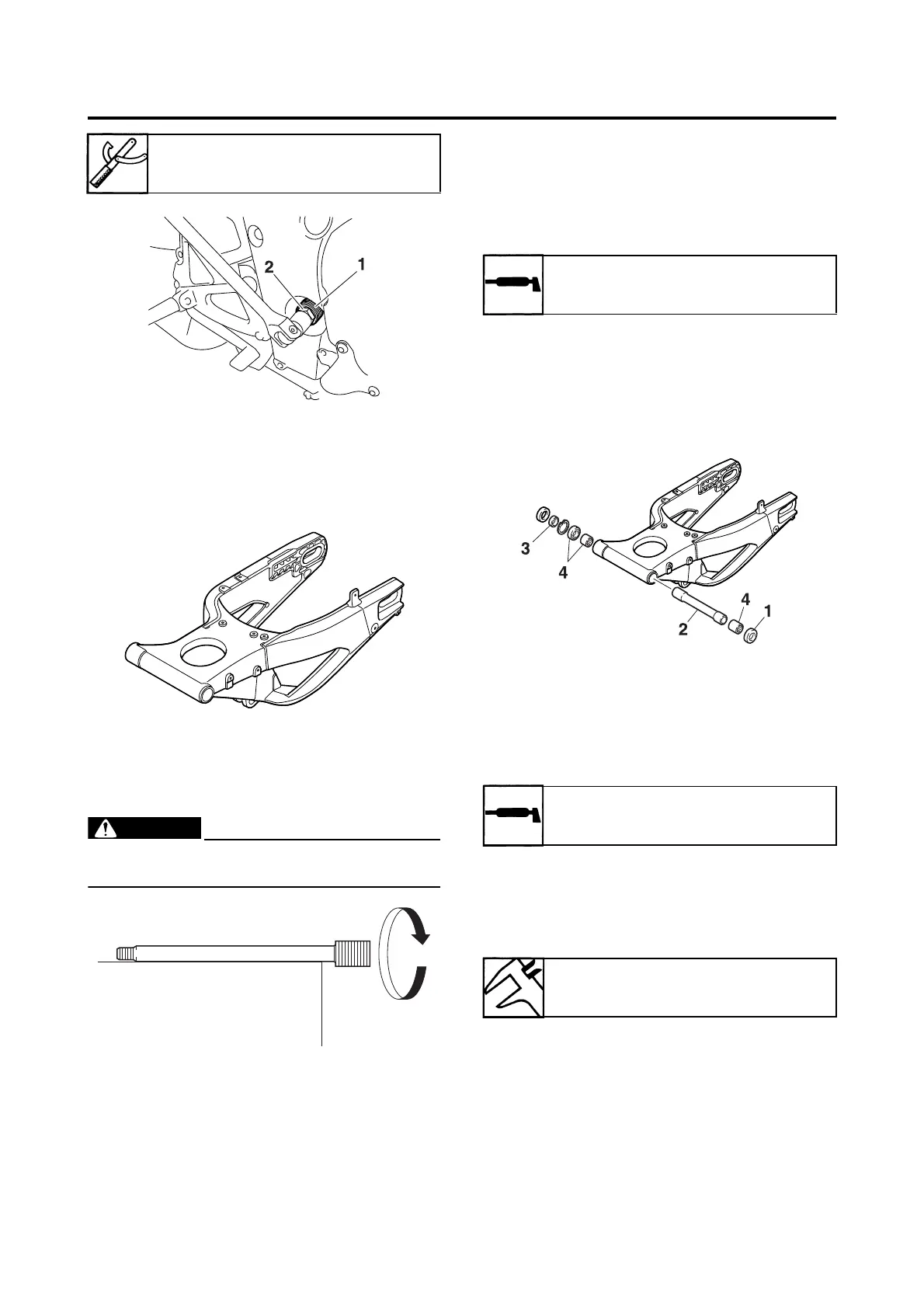

CHECKING THE SWINGARM
1. Check:
• Swingarm
Bends/cracks/damage → Replace.
2. Check:
• Pivot shaft
Roll the pivot shaft on a flat surface.
Bends → Replace.
EWA13770
Do not attempt to straighten a bent pivot
shaft.
3. Wash:
• Pivot shaft
•Dust cover
•Spacer
• Washers
• Bearings
4. Check:
• Dust cover “1”
• Spacer “2”
• Collar “3”
• Bearings “4”
Damage/wear → Replace.
EAS14B1011
INSTALLING THE SWINGARM
1. Lubricate:
• Bearings
•Dust cover
• Pivot shaft
2. Install:
• Bearings “1”
• Bearing “2”
•Circlip “3”
•Oil seal “4”
Damper rod holder (22 mm)
90890-01365
Recommended cleaning solvent
Kerosene
Recommended lubricant
Lithium-soap-based grease
Installed depth of bearing “a”
0–1.0 mm (0–0.04 in)
