STEERING HEAD
4-72
EAS23090
STEERING HEAD

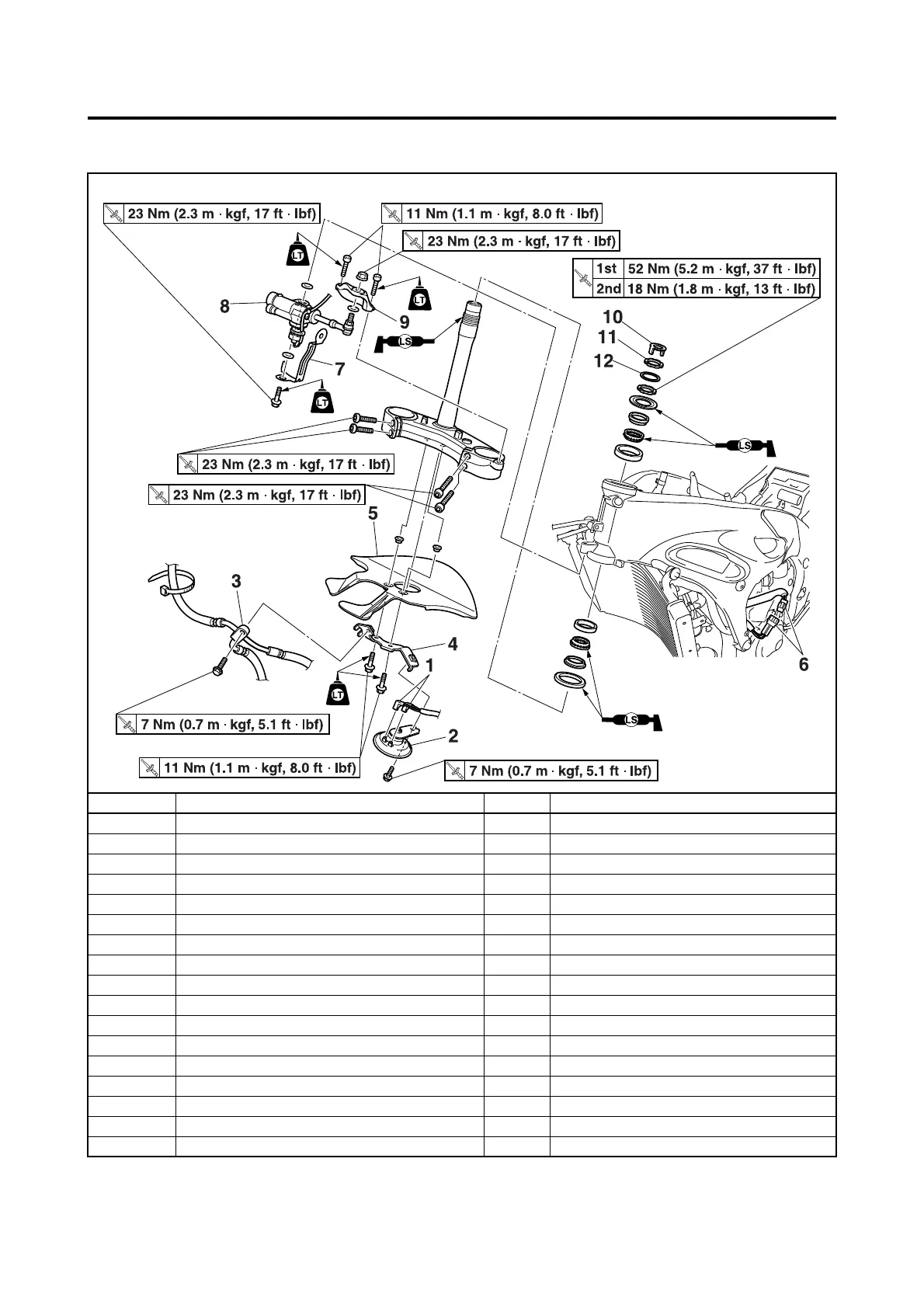

Removing the lower bracket
Order Job/Parts to remove Q’ty Remarks
Side cowling Refer to “GENERAL CHASSIS” on page 4-1.
Air duct Refer to “GENERAL CHASSIS” on page 4-1.
Front speed sensor Refer to “FRONT WHEEL” on page 4-17.
Front fork legs Refer to “FRONT FORK” on page 4-61.
Handlebars Refer to “HANDLEBARS” on page 4-56.
1 Horn lead connector 2 Disconnect.
2Horn 1
3 Front brake hose joint 1
4 Front brake hose joint bracket 1
5 Lower bracket cover 1
6 Steering damper coupler 1 Disconnect.
7 Cable guide 1
8 Steering damper 1
9 Steering damper bracket 1
10 Lock washer 1
11 Upper ring nut 1
12 Rubber washer 1
