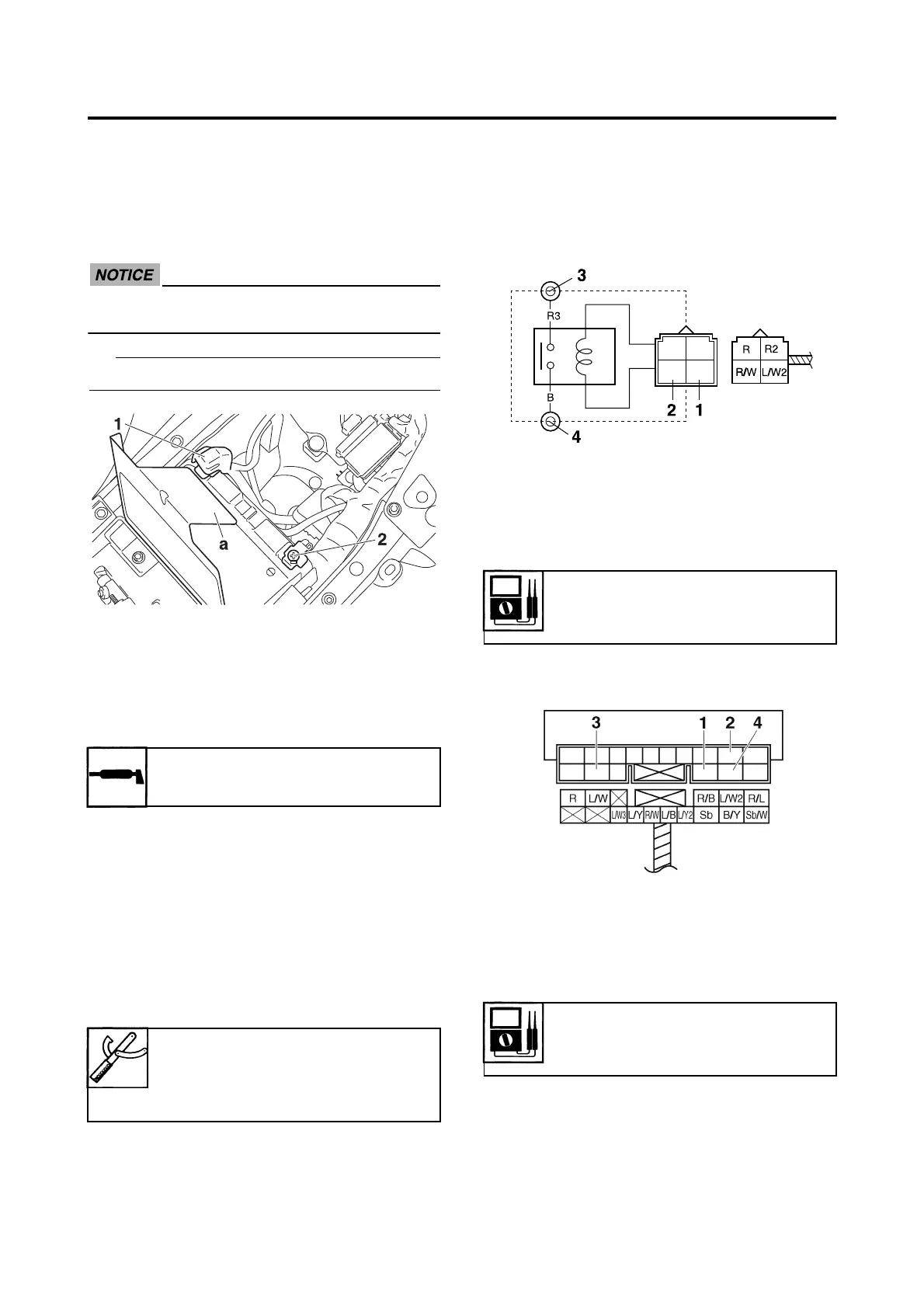

ELECTRICAL COMPONENTS
8-133
6. Install:
• Battery seat
• Battery
7. Connect:
• Battery leads
(to the battery terminals)
ECA13630
First, connect the battery positive lead “1”,
and then the battery negative lead “2”.
Set the battery seat end “a” proper position.
8. Check:
• Battery terminals
Dirt → Clean with a wire brush.
Loose connection → Connect properly.
9. Lubricate:
• Battery terminals
10. Install:
• Battery cover
• Rider seat
Refer to “GENERAL CHASSIS” on page
4-1.
EAS28040
CHECKING THE RELAYS
Check each switch for continuity with the
pocket tester. If the continuity reading is incor-
rect, replace the relay.
1. Disconnect the relay from the wire harness.
2. Connect the pocket tester (Ω × 1) and bat-
tery (12 V) to the relay terminal as shown.
Check the relay operation.
Out of specification → Replace.
Starter relay
Relay unit (starting circuit cut-off relay)
Recommended lubricant
Dielectric grease
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
Continuity
(between “3” and “4”)
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
Continuity
(between “3” and “4”)
