AIR FILTER CASE
7-5
EAS14B1062

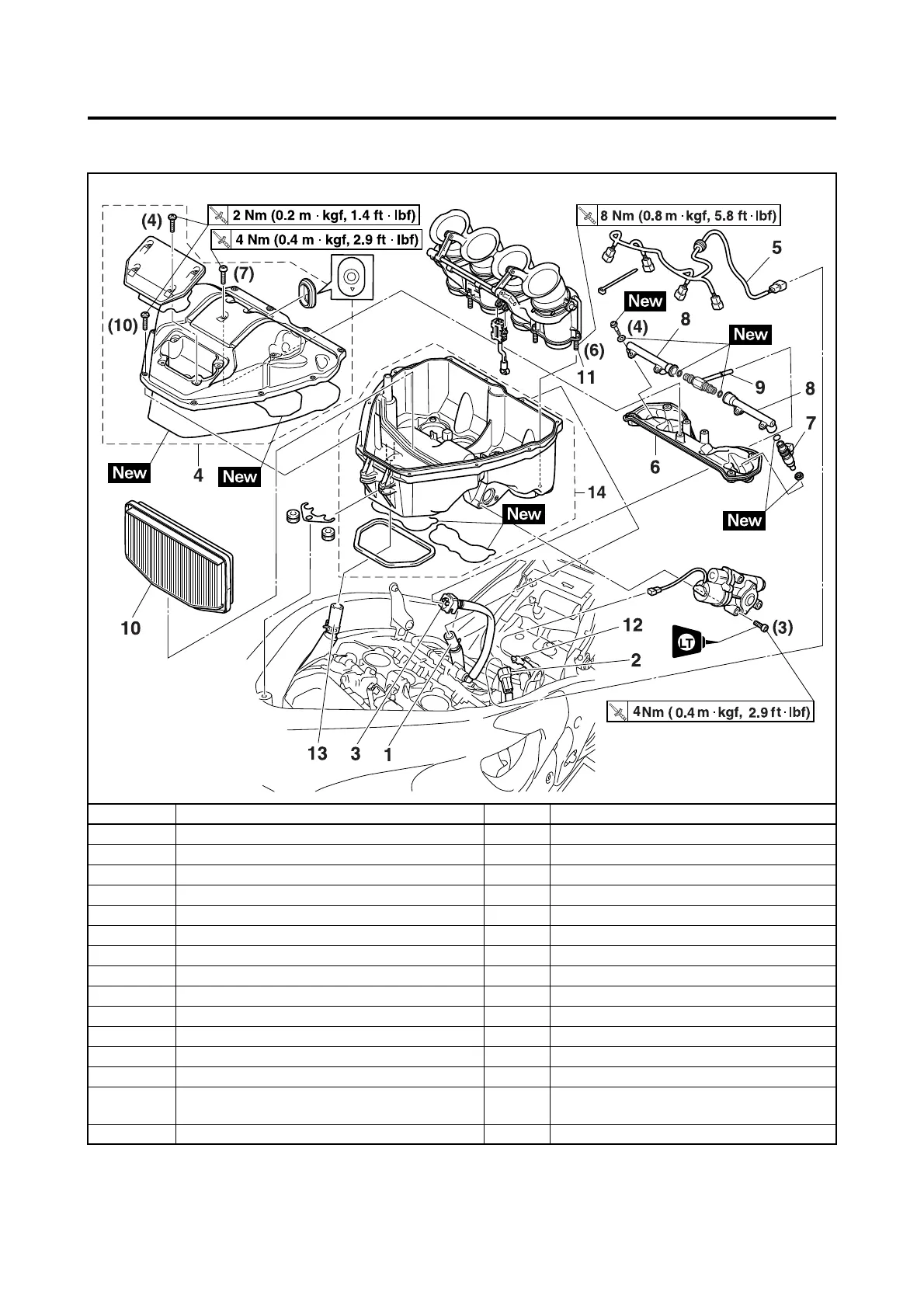

AIR FILTER CASE
Removing the air filter case and secondary injectors
Order Job/Parts to remove Q’ty Remarks
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Crankcase breather hose 1 Disconnect.
2 Sub-wire harness coupler 1 Disconnect.
3 Fuel hose (secondary injector fuel rail side) 1 Disconnect.
4 Upper air filter case 1
5 Sub-wire harness 1
6 Secondary injector holder 1
7 Secondary injector 4
8 Fuel rail 2
9 Secondary injector joint 1
10 Air filter element 1
11 Intake funnel joint bolt 6 Loosen.
12 Intake funnel servo motor coupler 1 Disconnect.
13
Air induction system hose (air filter case to air
cut-off valve)
1 Disconnect.
14 Lower air filter case 1
To Next Page
