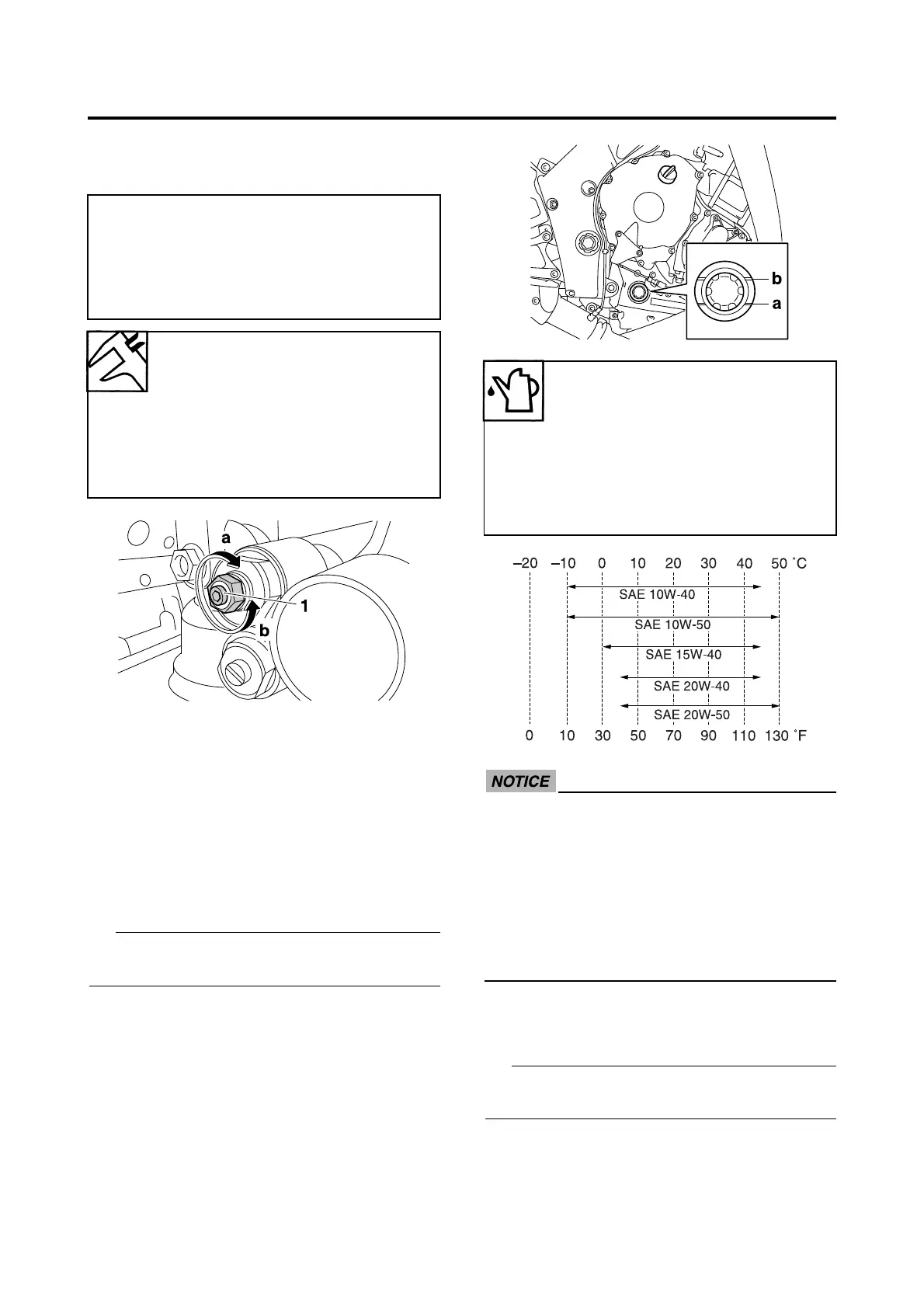

PERIODIC MAINTENANCE
3-28
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting bolt “1” in direction “a” or
“b”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS14B1097
CHECKING THE CONNECTING ARM AND
RELAY ARM
Refer to “CHECKING THE CONNECTING
ARM AND RELAY ARM” on page 4-78.
EAS20730
CHECKING THE ENGINE OIL LEVEL
1. Stand the vehicle on a level surface.
• Place the vehicle on a suitable stand.
• Make sure the vehicle is upright.
2. Start the engine, warm it up for several
minutes, and then turn it off.
3. Check:
• Engine oil level
The engine oil level should be between
the minimum level mark “a” and maxi-
mum level mark “b”.
Below the minimum level mark → Add the
recommended engine oil to the proper
level.
ECA13360
• Engine oil also lubricates the clutch and
the wrong oil types or additives could
cause clutch slippage. Therefore, do not
add any chemical additives or use engine
oils with a grade of CD or higher and do
not use oils labeled “ENERGY CONSERV-
ING II”.
• Do not allow foreign materials to enter the
crankcase.
4. Start the engine, warm it up for several
minutes, and then turn it off.
5. Check the engine oil level again.
Before checking the engine oil level, wait a few
minutes until the oil has settled.
Direction “a”
Compression damping is increased
(suspension is harder).
Direction “b”
Compression damping is decreased
(suspension is softer).
Minimum
20 click(s) out*
Standard
9 click(s) out*
Maximum
1 click(s) out*
* With the adjusting screw fully turned in
Recommended brand
YAMALUBE
Type
SAE 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade
API service SG type or higher,
JASO standard MA
To Next Page
