SHIFT SHAFT
5-68
EAS25410
SHIFT SHAFT

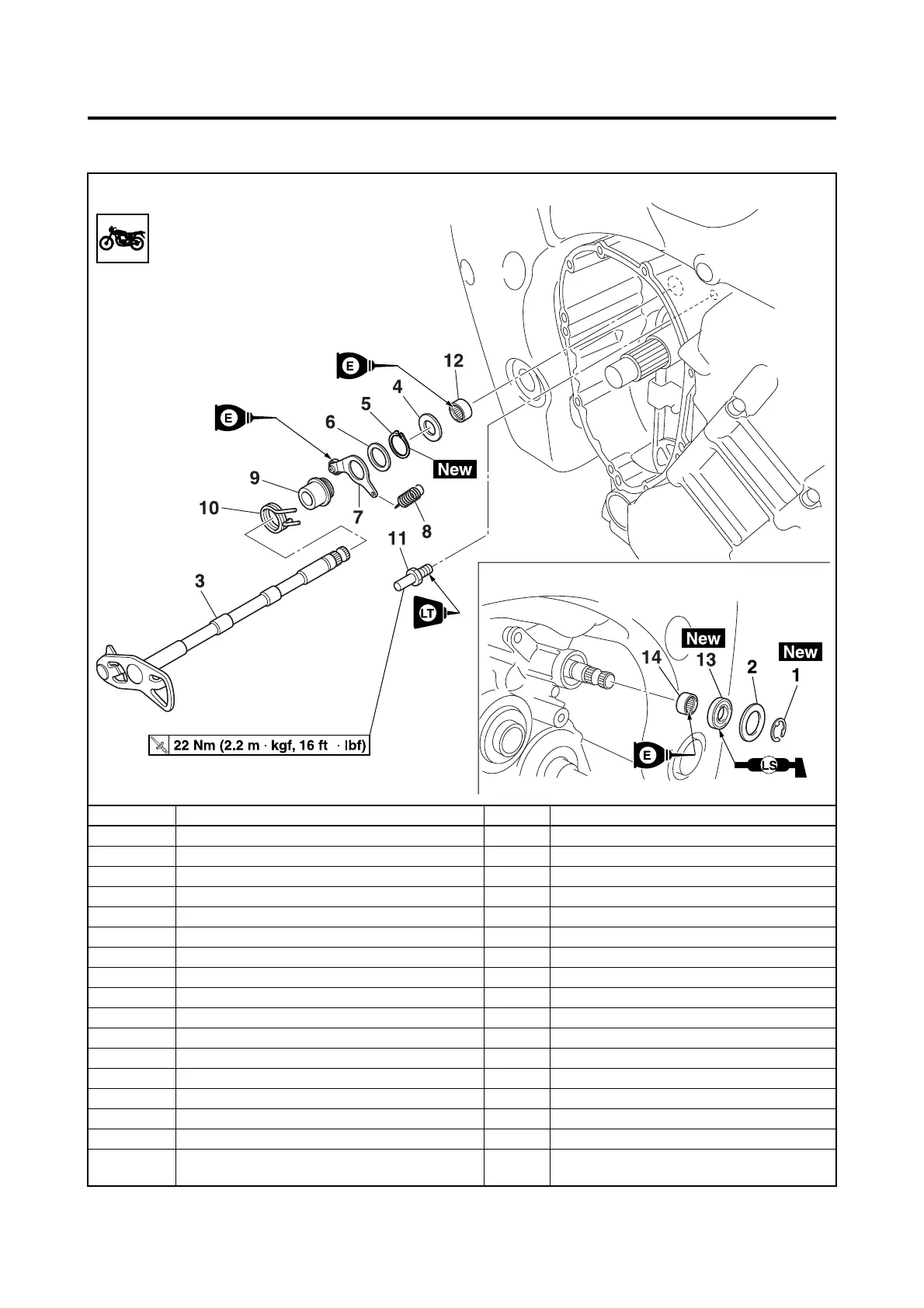

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Shift arm Refer to “CHAIN DRIVE” on page 4-85.
Clutch assembly Refer to “CLUTCH” on page 5-58.
1 Circlip 1
2 Washer 1
3 Shift shaft 1
4 Washer 1
5 Circlip 1
6 Washer 1
7 Stopper lever 1
8 Stopper lever spring 1
9 Collar 1
10 Shift shaft spring 1
11 Shift shaft spring stopper 1
12 Bearing 1
13 Oil seal 1
14 Bearing 1
For installation, reverse the removal proce-
dure.
