GENERAL CHASSIS
4-6

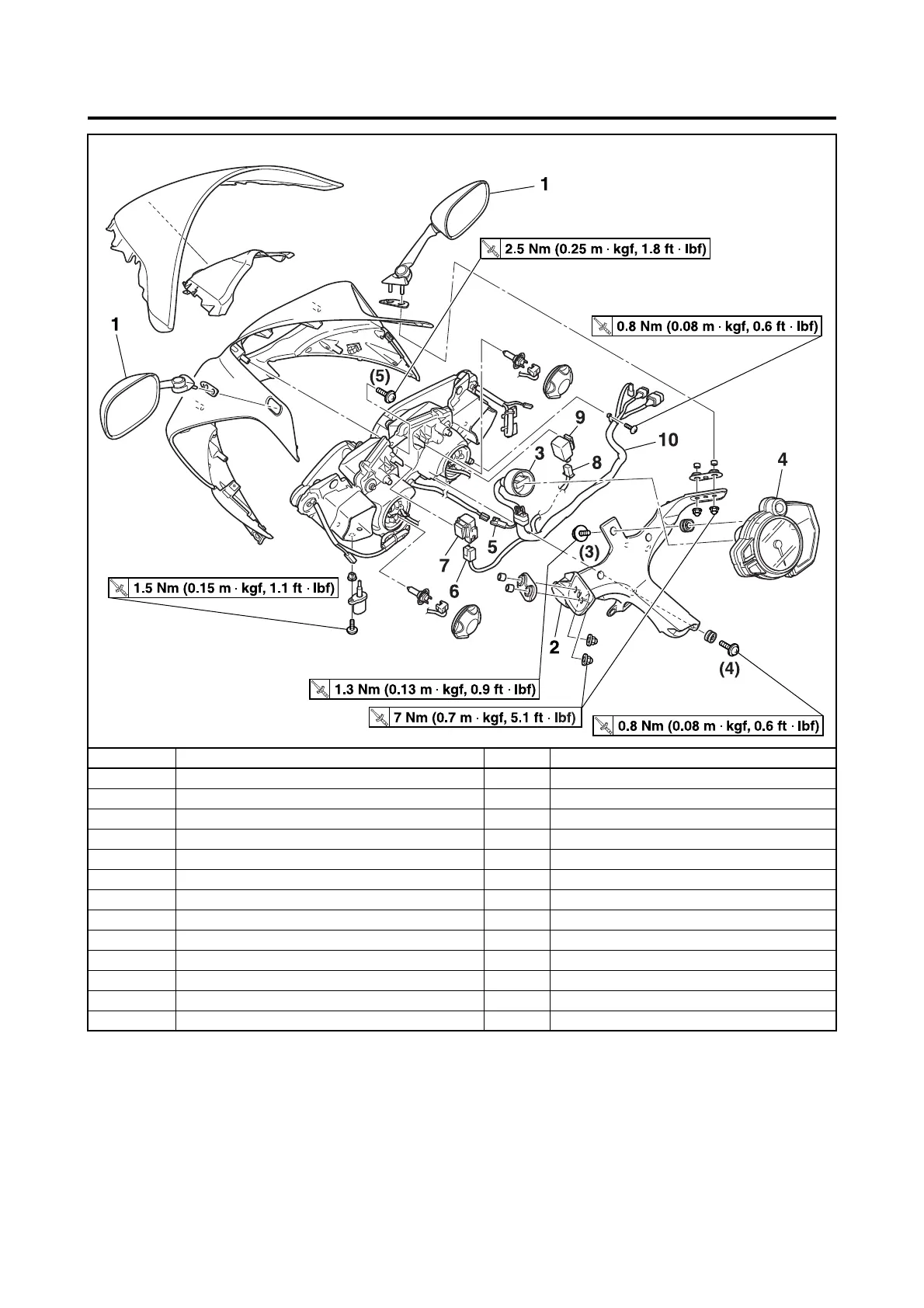

Removing the meter and headlight
Order Job/Parts to remove Q’ty Remarks
Side cowling Refer to “GENERAL CHASSIS” on page 4-1.
Air duct Refer to “GENERAL CHASSIS” on page 4-1.
Front cowling assembly Refer to “GENERAL CHASSIS” on page 4-1.
1 Rear view mirror 2
2 Meter bracket 1
3 Meter coupler 1 Disconnect.
4 Meter assembly 1
5 Headlight coupler 1 Disconnect.
6 Headlight relay coupler 1 Disconnect.
7 Headlight relay 1
8 Turn signal relay coupler 1 Disconnect.
9 Turn signal relay 1
10 Headlight sub-wire harness 1
