ELECTRICAL COMPONENTS
8-143
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

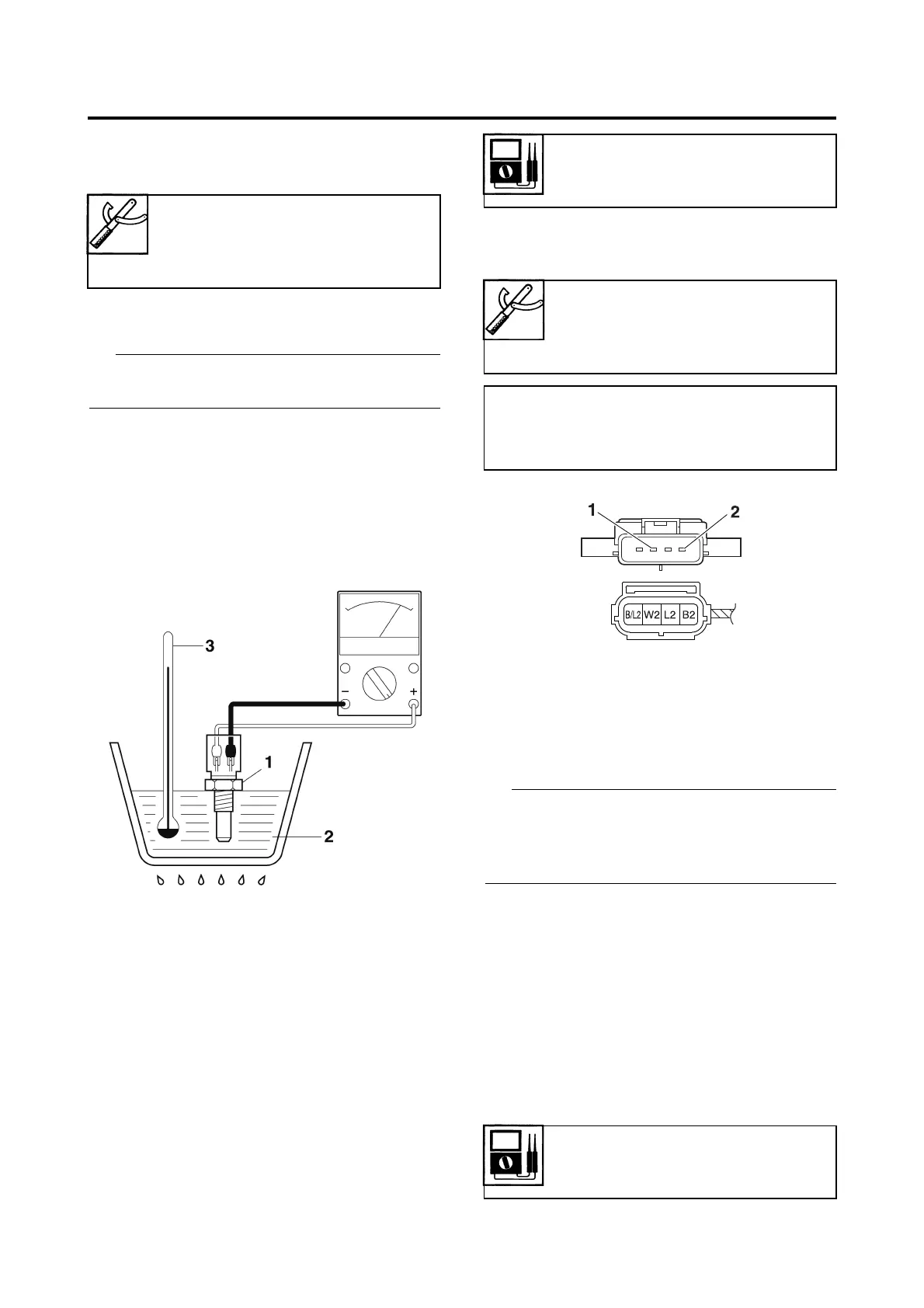

a. Connect the pocket tester (Ω × 100) to the
coolant temperature sensor as shown.
b. Immerse the coolant temperature sensor
“1” in a container filled with coolant “2”.
Make sure the coolant temperature sensor ter-
minals do not get wet.
c. Place a thermometer “3” in the coolant.
d. Slowly heat the coolant, then let it cool
down to the specified temperature.
e. Measure the coolant temperature sensor
resistance.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS14B1086
CHECKING THE THROTTLE POSITION
SENSOR
1. Remove:
• Throttle position sensor
(from the throttle body)
2. Check:
• Throttle position sensor maximum resis-
tance
Out of specification → Replace the throt-
tle position sensor.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the pocket tester (Ω × 1 k) to the
throttle position sensor terminal as shown.
b. Measure the throttle position sensor maxi-
mum resistance.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
3. Install:
• Throttle position sensor
When installing the throttle position sensor,
adjust its angle properly. Refer to “ADJUST-
ING THE THROTTLE POSITION SENSOR”
on page 7-19.
EAS14B1087
CHECKING THE ACCELERATOR POSITION
SENSOR
1. Remove:
• Accelerator position sensor
(from the throttle body)
2. Check:
• Accelerator position sensor maximum
resistance
Out of specification → Replace the accel-
erator position sensor.
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
Throttle position sensor resis-
tance
1.2–2.8 kΩ
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe
Blue “1”
• Negative tester probe
Black/Blue “2”
Accelerator position sensor
resistance
1.2–2.8 kΩ
To Next Page
