GENERAL CHASSIS
4-11
EAS14B1104

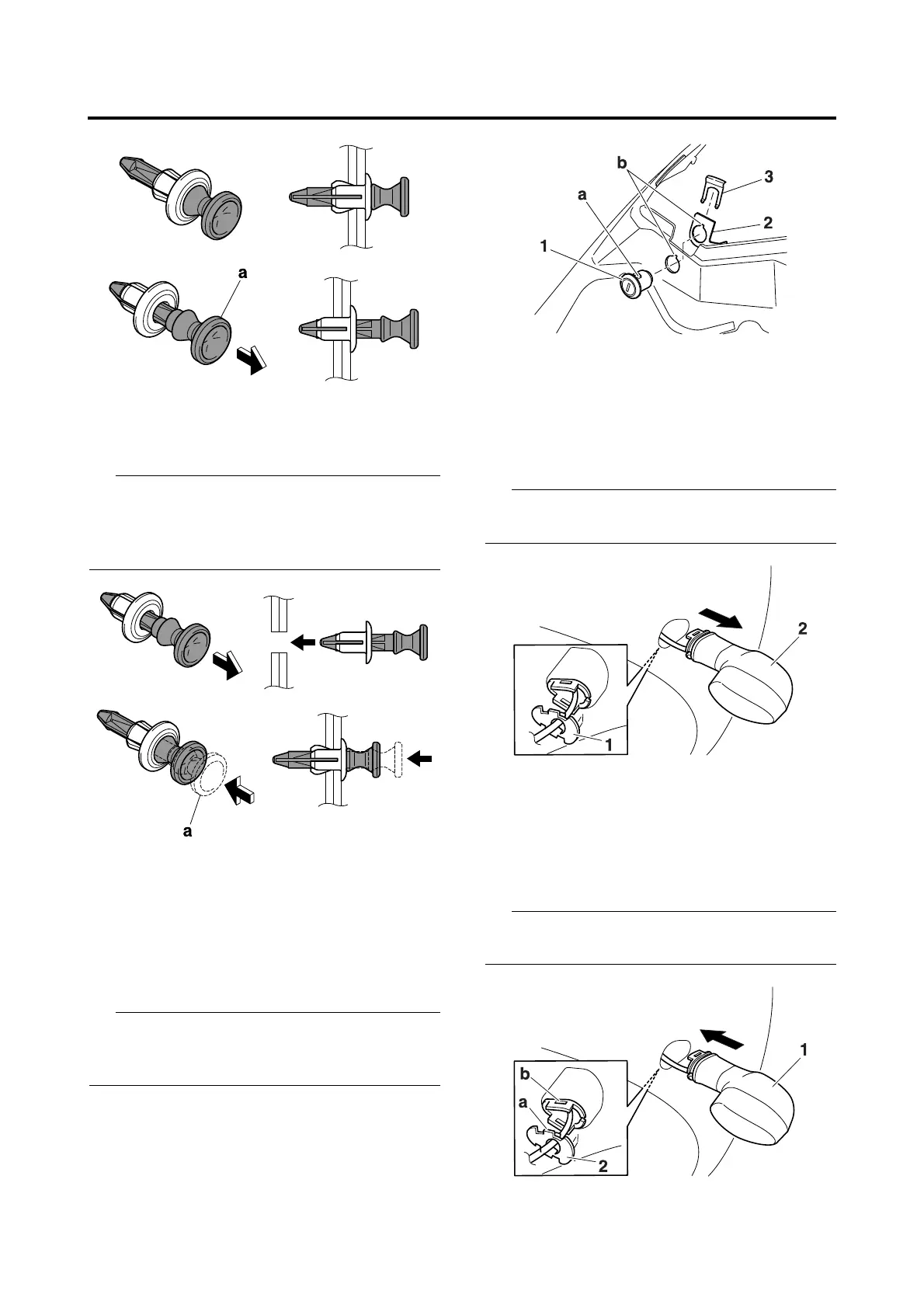

INSTALLING THE QUICK FASTENER (PULL
TYPE)
To install the quick fastener, pull the pin, then
insert the fastener into the cover and push the
pin “a”. Make sure to insert the fastener until it
is locked.
EAS14B1037
INSTALLING THE PASSENGER SEAT LOCK
CYLINDER
1. Install:
• Seat lock key cylinder “1”
• Lock stay “2”
• Lock spring “3”
Align the projection “a” of the passenger seat
lock key cylinder “1” to the grooves “b” of the
lower tail cover and lock stay “2” and install.
EAS14B1038
REMOVING THE FRONT TURN SIGNAL
LIGHTS
1. Remove:
•Stay “1”
• Front turn signal light “2”
Remove the stay “1” first and then remove the
front turn signal light “2” from the side cowling.
EAS14B1039
INSTALLING THE FRONT TURN SIGNAL
LIGHTS
1. Install:
• Front turn signal light “1”
•Stay “2”
Insert the flasher stay tabs “a” into the front
turn signal light grooves “b”.
