TRANSMISSION

5-91

EAS26241

TRANSMISSION

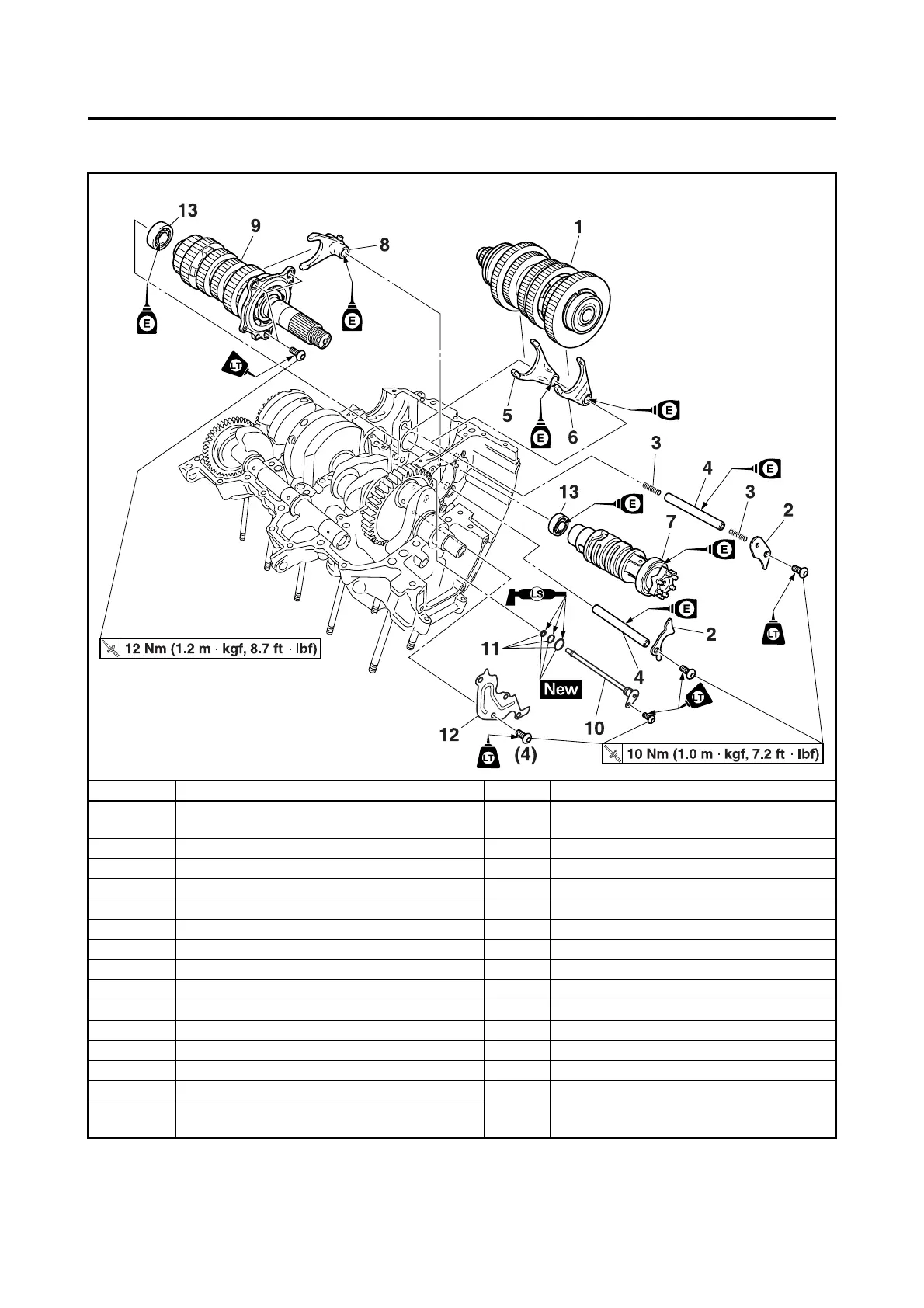

Removing the transmission, shift drum assembly, and shift forks

Order Job/Parts to remove Q’ty Remarks

Lower crankcase

Separate.

Refer to “CRANKCASE” on page 5-70.

1 Drive axle assembly 1

2 Shift drum retainer 2

3Spring 2

4 Shift fork guide bar 2

5 Shift fork-L 1

6 Shift fork-R 1

7 Shift drum assembly 1

8 Shift fork-C 1

9 Main axle assembly 1

10 Oil delivery pipe 2 1

11 O-ring 3

12 Oil baffle plate 1

13 Bearing 2

For installation, reverse the removal proce-

dure.
