OIL COOLER
6-5
EAS26410
OIL COOLER

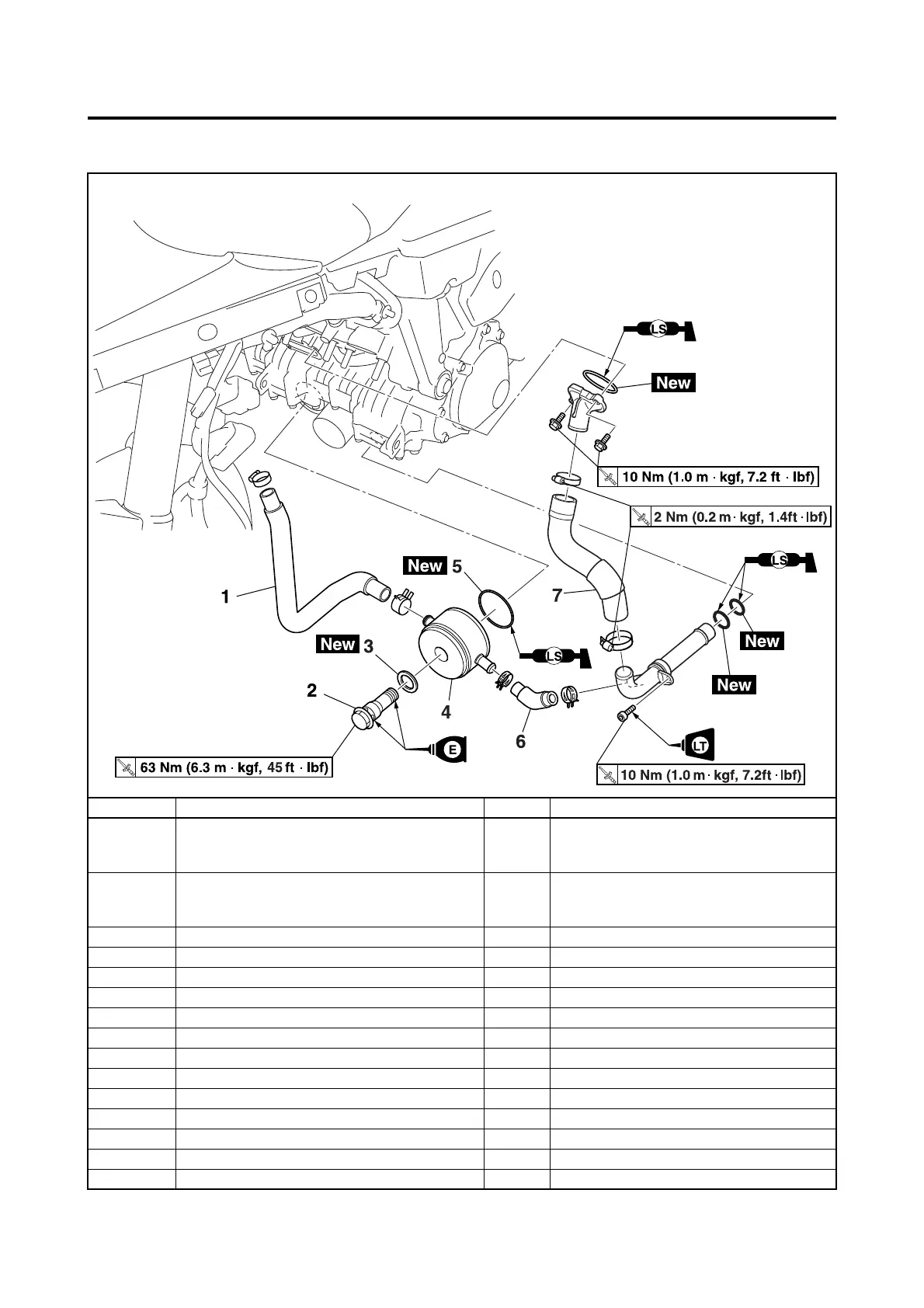

Removing the oil cooler
Order Job/Parts to remove Q’ty Remarks
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-32.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-29.
Side cowling Refer to “GENERAL CHASSIS” on page 4-1.
Lower cowling Refer to “GENERAL CHASSIS” on page 4-1.
ECU Refer to “GENERAL CHASSIS” on page 4-1.
Rectifier/regulator Refer to “GENERAL CHASSIS” on page 4-1.
Radiator Refer to “RADIATOR” on page 6-1.
Exhaust pipe Refer to “ENGINE REMOVAL” on page 5-3.
1 Oil cooler outlet hose 1
2 Oil cooler union bolt 1
3Gasket 1
4 Oil cooler 1
5O-ring 1
6 Oil cooler inlet hose 1
7 Water jacket joint inlet hose 1
