CLUTCH
5-62
EAS25080

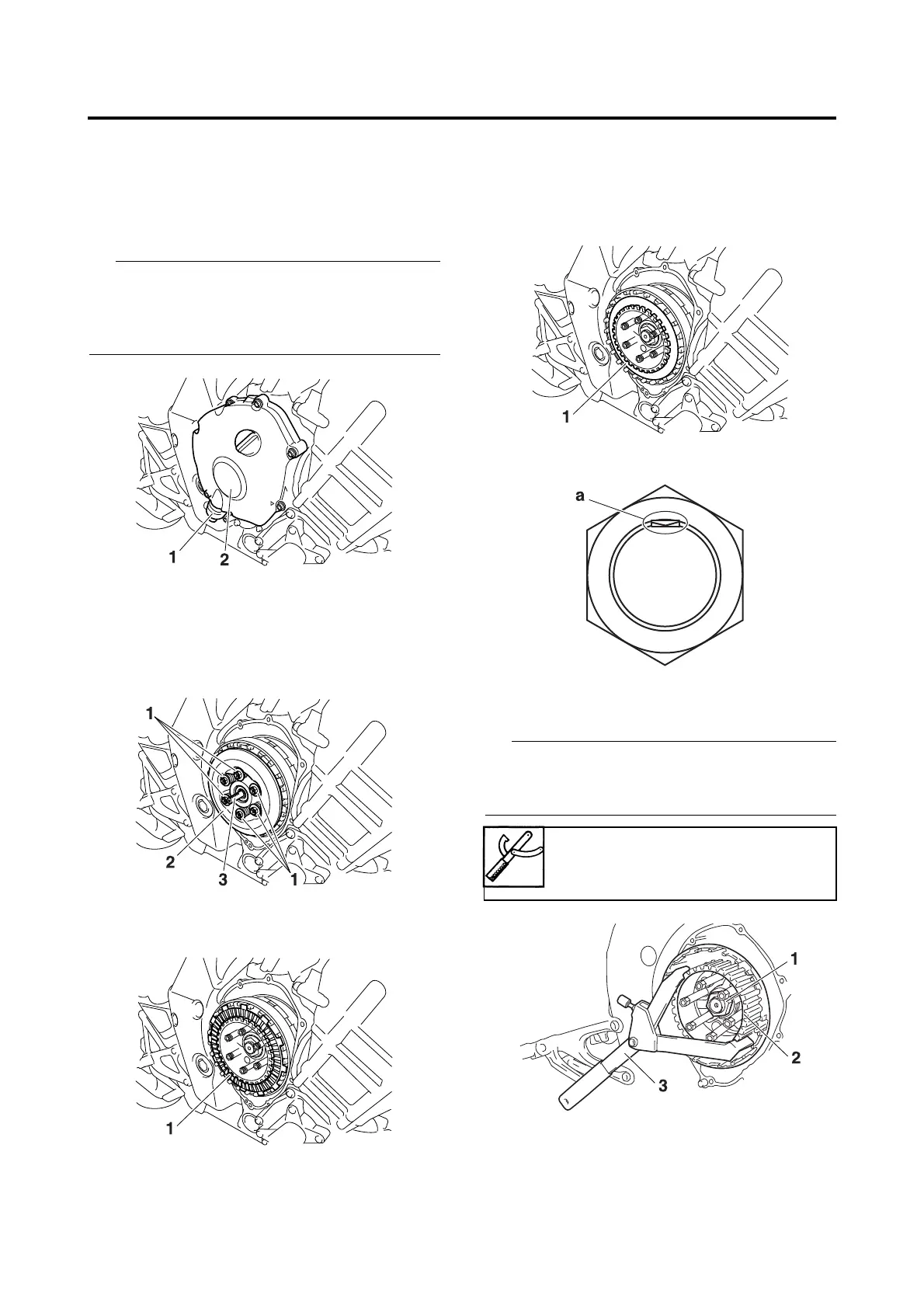

REMOVING THE CLUTCH
1. Remove:
• Pull lever cover “1”
•Clutch cover “2”
•Gasket
Loosen each bolt 1/4 of a turn at a time, in
stages and in a crisscross pattern.
After all of the bolts are fully loosened, remove
them.
2. Remove:
• Compression spring bolts “1”
• Compression springs
• Pressure plate 1 “2”
• Pull rod “3”
3. Remove:
• Friction plate 1 “1”
4. Remove:
• Clutch plate 1 “1”
• Friction plate 2
• Clutch plate 2
• Clutch plate 3
5. Straighten the clutch boss nut rib “a”.
6. Loosen:
• Clutch boss nut “1”
While holding the clutch boss “2” with the uni-
versal clutch holder “3”, loosen the clutch boss
nut.
Universal clutch holder
90890-04086
YM-91042
