THROTTLE BODIES
7-14

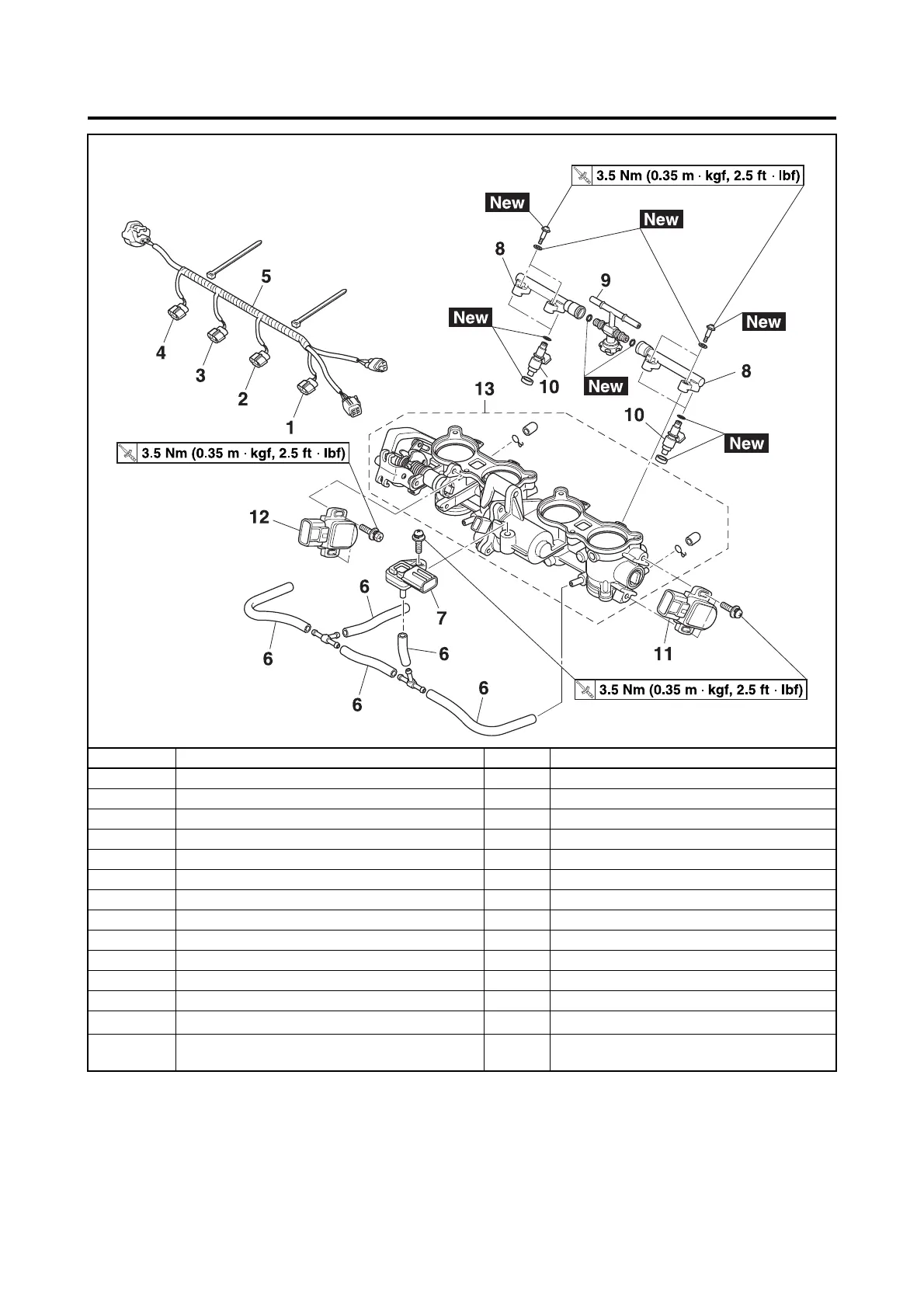

Removing the primary injectors
Order Job/Parts to remove Q’ty Remarks
1 Primary injector coupler #1 1 Disconnect.
2 Primary injector coupler #2 1 Disconnect.
3 Primary injector coupler #3 1 Disconnect.
4 Primary injector coupler #4 1 Disconnect.
5 Sub-wire harness 1
6 Intake air pressure sensor hose 5
7 Intake air pressure sensor 1
8 Fuel rail 2
9 Primary injector joint 1
10 Primary injector 4
11 Throttle position sensor 1
12 Accelerator position sensor 1
13 Throttle bodies 1
For installation, reverse the removal proce-
dure.
