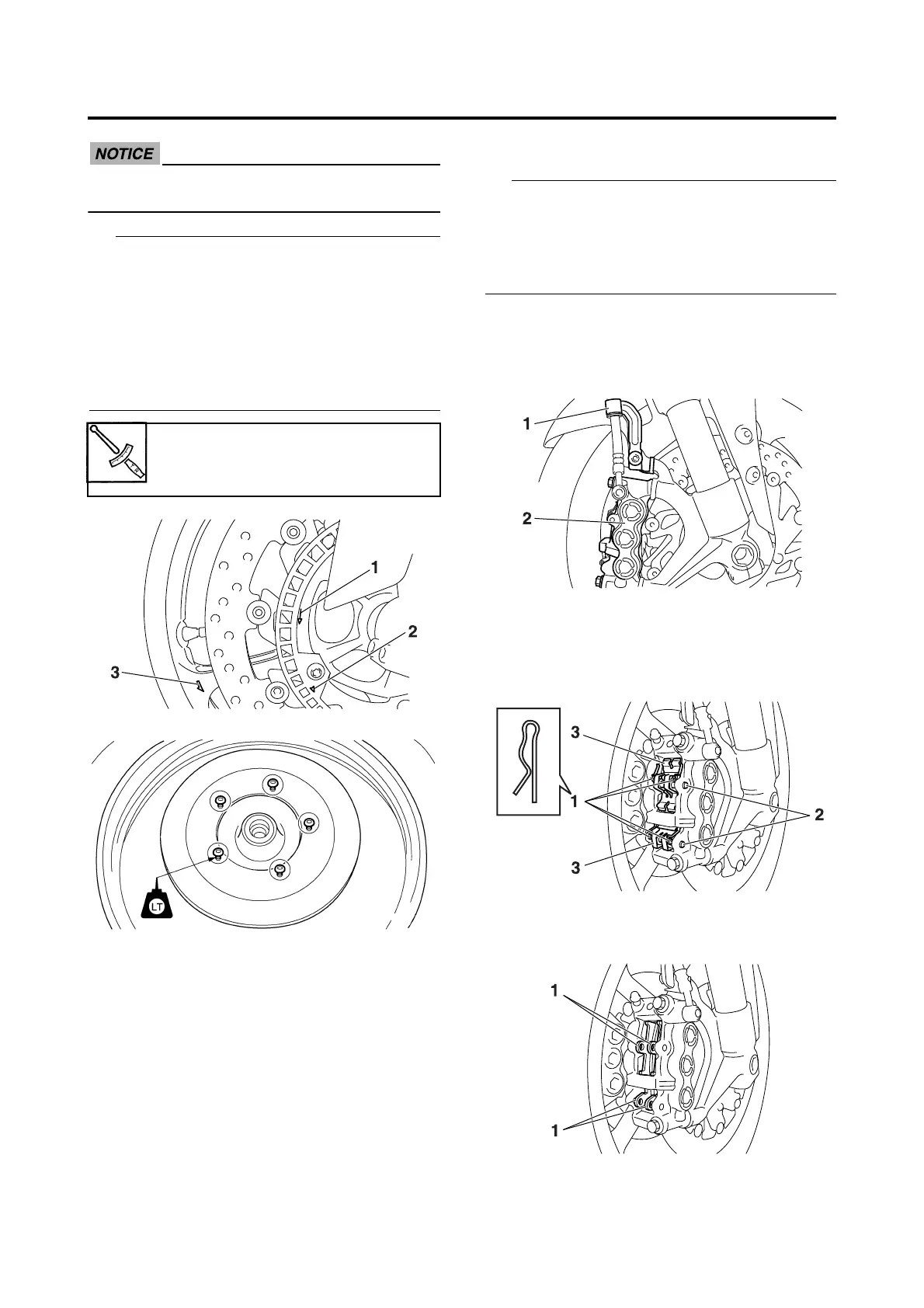

FRONT BRAKE
4-37
ECA1CW1401
Replace the brake disc bolts with new
ones.
• When installing the brake disc and front
speed sensor rotor (only on the left side),
align the arrow “1” on the brake disc, arrow
“2” on the front speed sensor rotor and arrow
“3” on the front wheel in the direction of
wheel rotation.
• Tighten the brake disc bolts in stages and in
a crisscross pattern.
d. Measure the brake disc deflection.
e. If out of specification, repeat the adjust-
ment steps (a) through (d) until the brake
disc deflection is within specification.
f. If the brake disc deflection cannot be
brought within specification, replace the
brake disc.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
6. Install:
• Front wheel
Refer to “FRONT WHEEL” on page 4-17.
EAS14B1004
REPLACING THE FRONT BRAKE PADS
• When replacing the brake pads, it is not nec-
essary to disconnect the brake hose or dis-
assemble the brake caliper.
• Remove the front speed sensor first to pre-
vent damage to the front speed sensor.
1. Remove:
• Brake hose holder “1”
• Front speed sensor
• Brake caliper “2”
2. Remove:
• Brake pad clips “1”
• Brake pad pins “2”
• Brake pad springs “3”
3. Remove:
• Brake pads “1”
Brake disc bolt
18 Nm (1.8 m·kgf, 13 ft·lbf)
LOCTITE®
